Overview

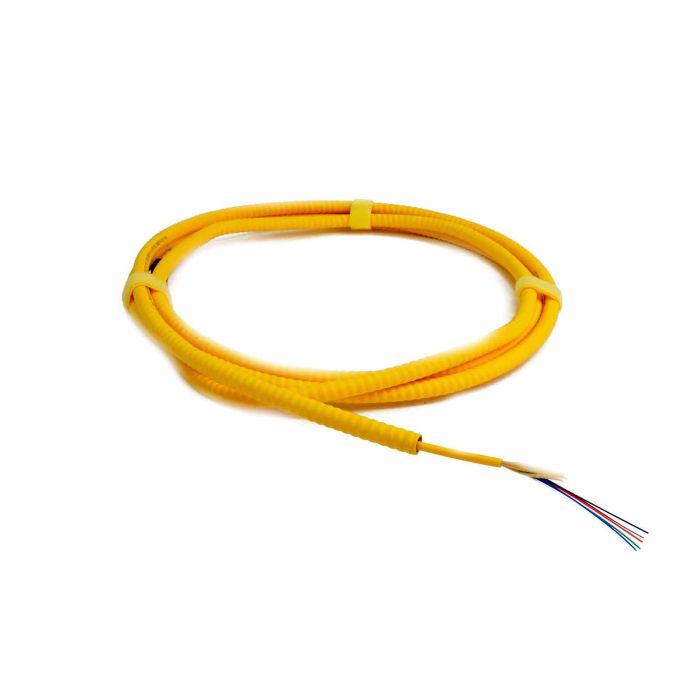

This distribution-style fiber optic cable features 6 optical fibers constructed with a 900um tight buffer. The cable is reinforced with aluminum interlocking armor to provide physical protection for the internal components. It is rated for plenum installations and utilizes Corning SMF-28 Ultra singlemode fiber (9/125um, OS2) as the transmission medium.
Key Features
-
900um Tight Buffered Fibers: Allows for direct connector termination without the requirement of additional breakout kits.
-
Aluminum Interlocking Armor: Provides mechanical protection for the internal 6-fiber bundle in high-traffic or exposed indoor environments.
-
Plenum-Rated Jacket: Designed to meet fire safety requirements for installation in air-handling spaces.
-
Corning SMF-28 Ultra Singlemode Fiber: Utilizes standardized OS2 singlemode fiber for consistent signal transmission over long distances.
Technical Specifications
| Attribute |
Detail |
| Fiber Count |
6 Fibers |
| Fiber Type |
Singlemode (OS2) |
| Core/Cladding Diameter |
9/125um |
| Buffer Type |
900um Tight Buffer |
| Armor Type |
Aluminum Interlocking Armor |
| Jacket Rating |
Plenum |
| Jacket Color |
Yellow |
