Description

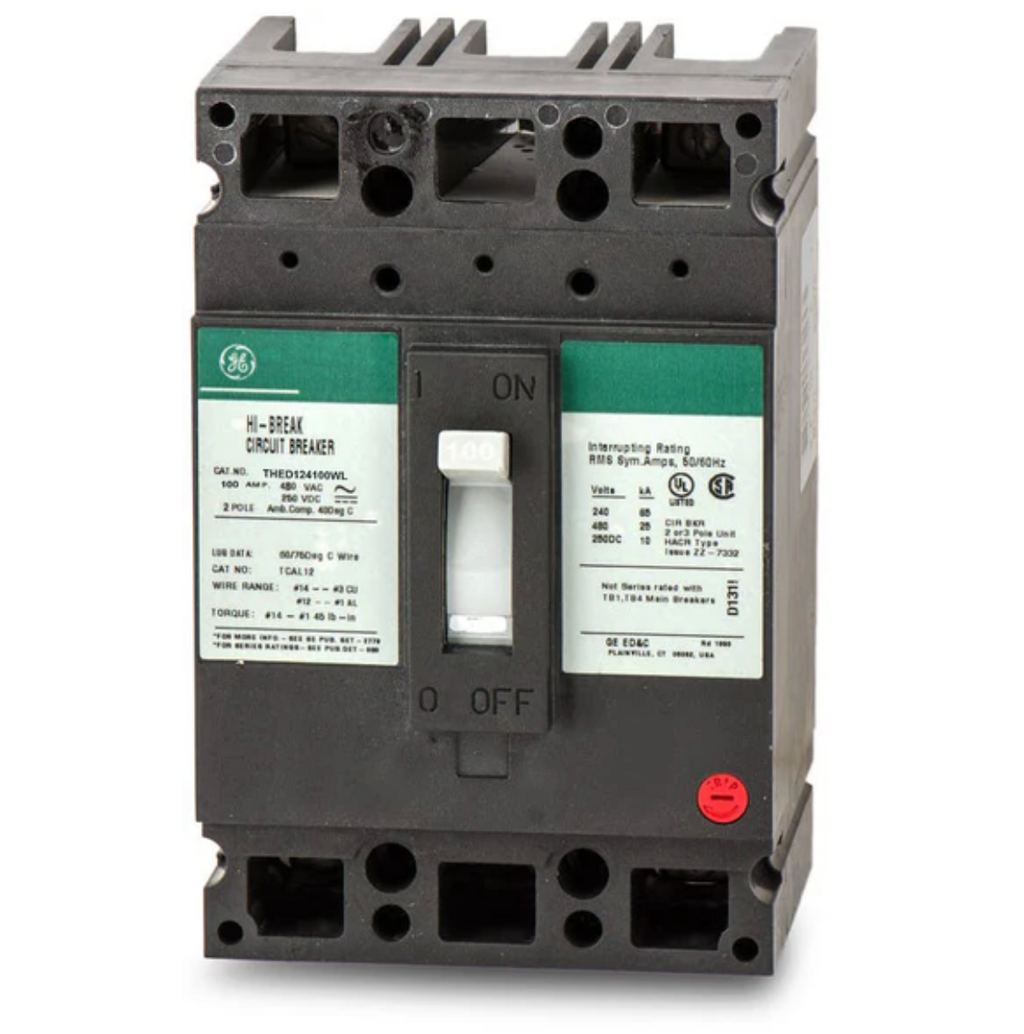

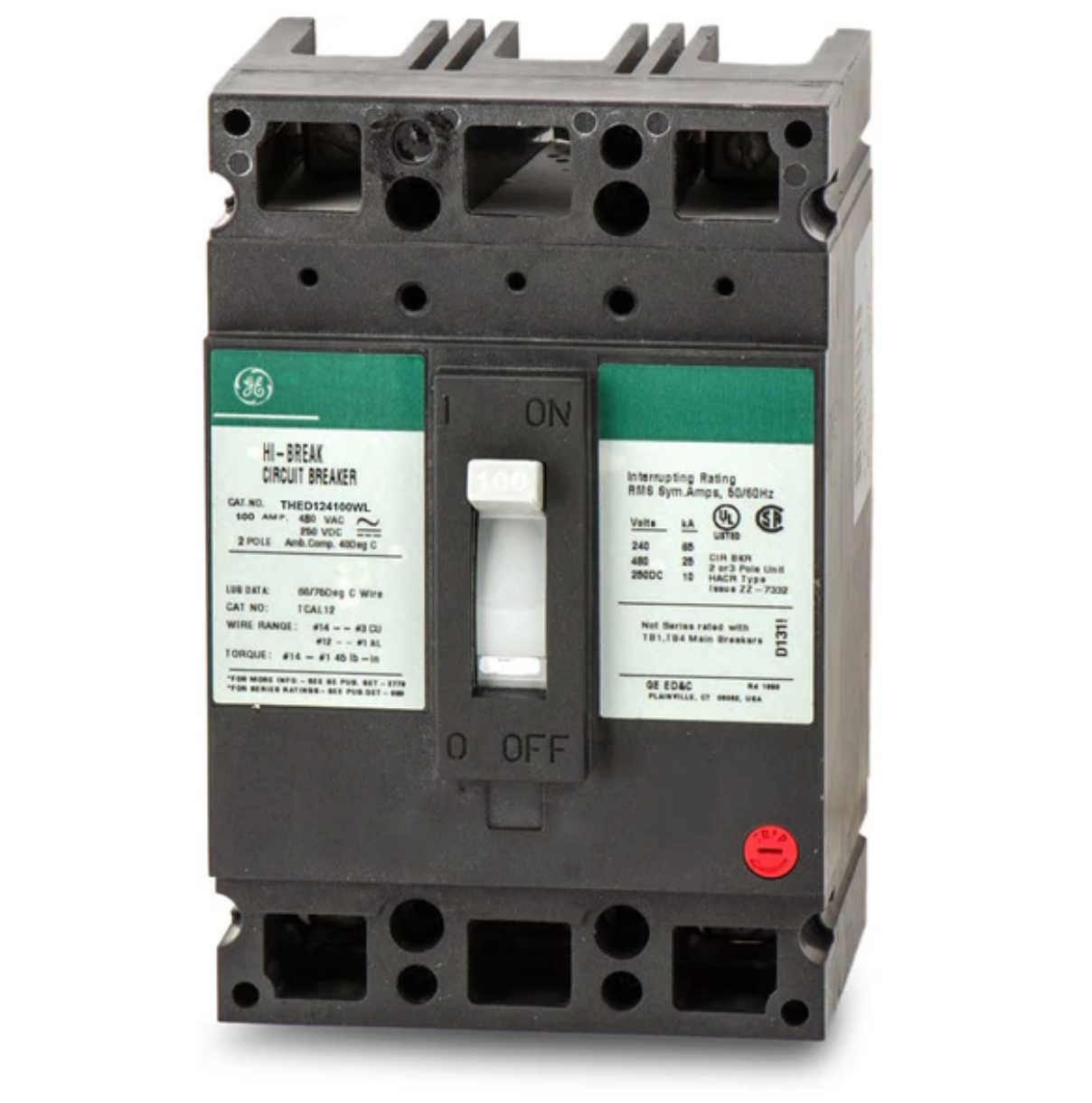

The General Electric THED124100WL is a 2-pole molded case circuit breaker engineered to provide thermal-magnetic protection for 480 VAC systems. Designed for dependable interruption of overloads and short-circuits, it supports 100-amp applications in commercial and industrial environments. The THED124100WL ensures stable performance with a high interrupting rating suitable for demanding power distribution systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Circuit Protection |
| Part Number |
THED124100WL |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
E150 Line |
| Type |
THED |
| Amperage Rating |
100 A |
| Voltage Rating |
480 VAC / 250 VDC |
| Interrupting Rating |
25 kAIC @ 480 V |
| Number of Poles |
2 |
| Phase |
1 |
| Mounting Type |
Bolt-On |
| Connection Type |
Feed-Thru |
| Protection Type |
Thermal Magnetic |
| Trip Functions |
Long-Time and Instantaneous |
| Terminal Type |
Line and Load Side Lug |
| Temperature Rating |
40 °C |
| Frame Type |
TED |
| Dimensions (H×W×D) |
6.31 × 4.13 × 4.09 in |
| Weight |
21.69 lb |
Information About THED124100WL
The THED124100WL is part of GE’s E150 Line, built with a durable molded case design and configured for feed-thru installation. It features a THED-type frame that offers robust electrical endurance and compatibility with GE distribution panels and bolt-on mounting systems. The breaker uses LI trip technology, providing both long-time overload protection and instantaneous short-circuit response. Its construction and terminal layout support secure integration into single-phase circuits requiring reliable 480V protection.
Key Features:
- 100 A Rating: Supports medium-capacity electrical loads in commercial and industrial systems.
- Thermal-Magnetic Protection: Ensures accurate overload and short-circuit response under varying electrical conditions.
- 25 kAIC Interrupt Capacity: Handles higher fault levels common in 480V power distribution networks.
- Bolt-On Mounting: Provides secure mechanical fastening for panelboard and switchboard applications.
- Feed-Thru Connection: Allows straightforward integration into linear wiring layouts.
- LI Trip Functions: Combines long-time and instantaneous action for comprehensive circuit protection.
- Line and Load Lugs Included: Ensures quick installation with compatible copper or aluminum conductors.
- E150 Line Construction: Offers a rugged molded case frame designed for environments requiring enhanced durability.
The THED124100WL delivers the reliability and precision required for molded case circuit protection in commercial and industrial power systems.
