Description

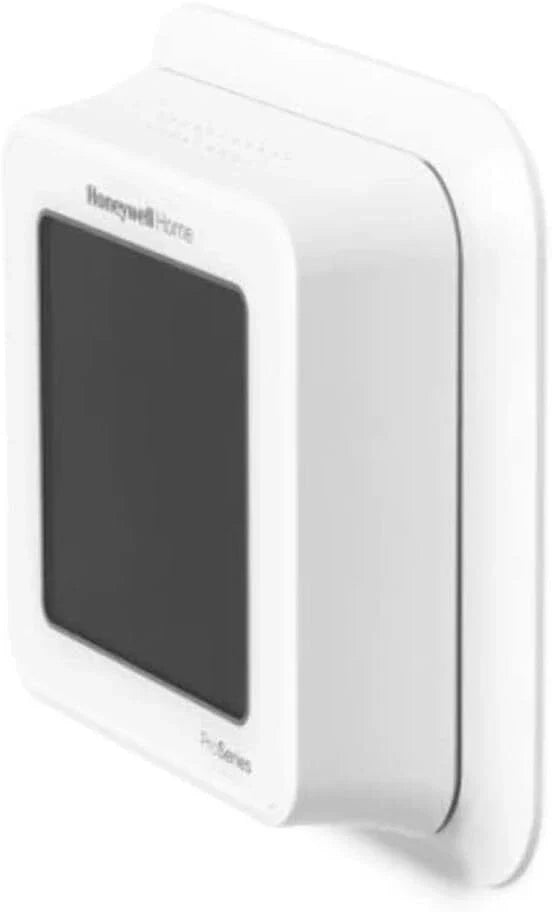

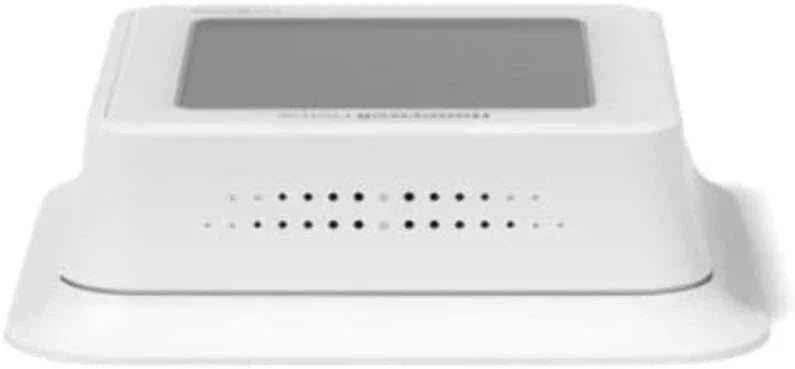

The Honeywell T6 Pro Z-Wave Thermostat (model TH6320ZW2003) is a versatile, programmable thermostat designed for seamless integration into Z-Wave smart home systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Controls & Indicators |
| Part Number |
TH6320ZW2003
|
| Subcategory |
Thermostat |
| Series |
Lyric T6 Pro Z-Wave |
| Power Source |
AC/DC (24 VAC hardwired with C-wire or 3 AA batteries) |
| Communication Protocol |
Z-Wave Plus |
| Display |
Touchscreen, Backlit LCD |
| Stages (Heat/Cool) |
Up to 3 Heat / 2 Cool (Heat Pump); 2 Heat / 2 Cool (Conventional) |
| Scheduling Options |
7-Day, 5-1-1, 5-2 Programmable |
| Smart Features |
Works with Z-Wave hubs (SmartThings, Ring, etc.), remote control via hub |
| Control Type |
Manual, Z-Wave Remote |
| Installation |
Wall-mounted, Compatible with most 24V HVAC systems |
| Temperature Control |
Precise comfort control with adaptive recovery |
| Certifications |
Z-Wave Plus Certified, Energy-saving compliant features |
| Dimensions |
Approx. 4.09" x 4.09" x 1.06" (H x W x D) |
| Operating Temperature |
32°F to 120°F (0°C to 48.9°C) |
| Weight |
1.00 lbs |
Information About TH6320ZW2003
The Honeywell TH6320ZW2003 is a programmable Z-Wave thermostat from the T6 Pro Series, designed for use in residential or light commercial HVAC systems. It supports flexible installation using either 24 VAC power (via C-wire) or battery operation (3 AA batteries), and integrates smoothly with Z-Wave smart home ecosystems. This thermostat features a large backlit touchscreen for intuitive control and offers up to 3H/2C heat pump or 2H/2C conventional system compatibility. The TH6320ZW2003 also includes adaptive recovery, which learns system response times to maximize energy efficiency and occupant comfort.
Key Features:
- Z-Wave Plus Connectivity: Enables integration with smart home hubs (SmartThings, Ring, etc.) for remote control and automation.
- Flexible Power Supply: Operates on 24 VAC (C-wire) or with 3 AA batteries for versatile installation options.
- Advanced Scheduling: Offers 7-day, 5-1-1, and 5-2 programmable schedules to match user routines.

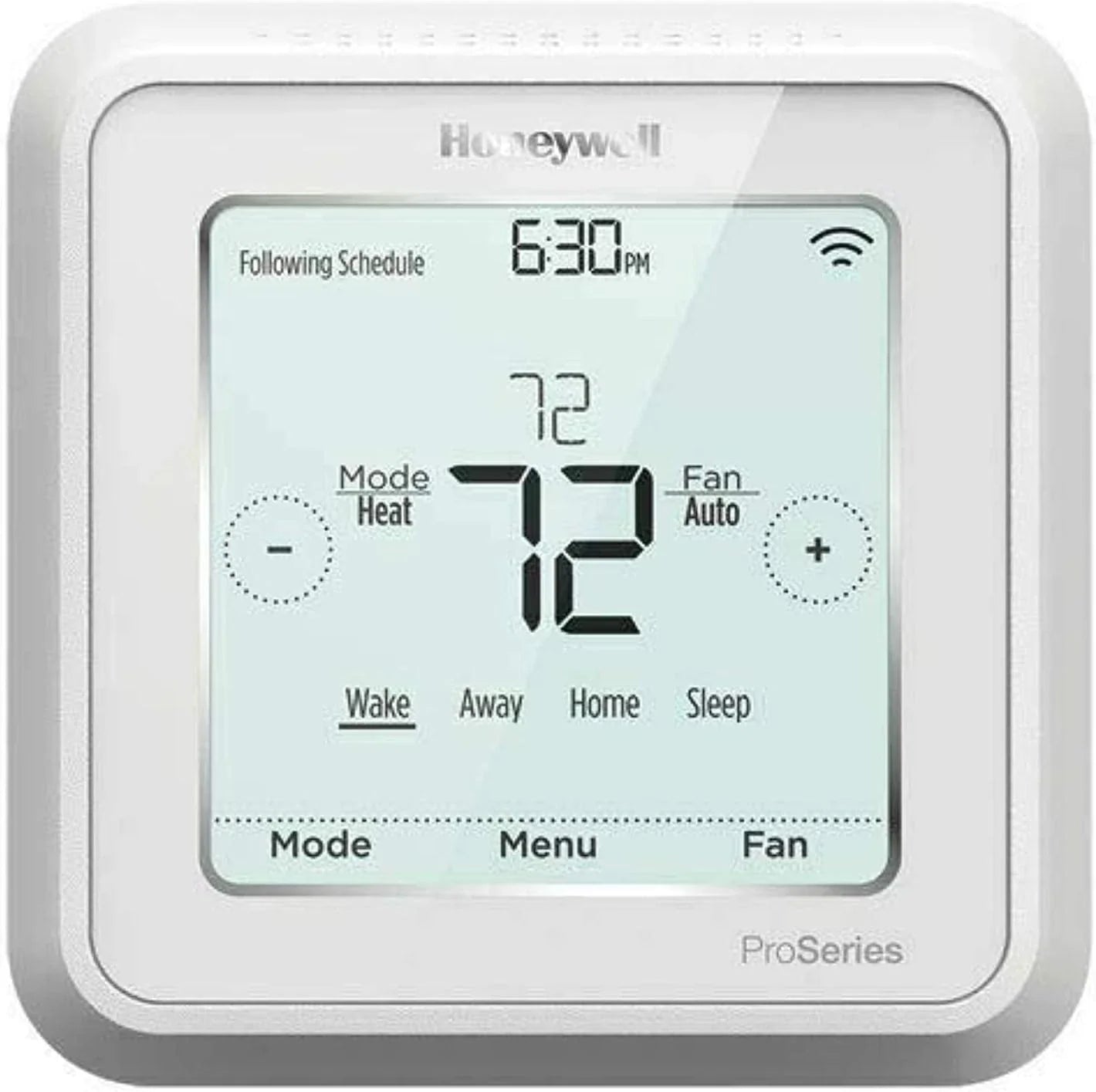

- Touchscreen Interface: Backlit LCD touchscreen for easy programming and real-time temperature monitoring.
- Adaptive Intelligent Recovery: Learns heating/cooling patterns to reach the set temperature at the scheduled time.
- System Compatibility: Supports 3H/2C for heat pump systems and 2H/2C for conventional systems.
- Installation Kit Included: Ships with a UWP mounting plate, J-box adapter, decorative cover plate, screws/anchors, and batteries.
- Remote Access: When paired with a Z-Wave hub, users can control the thermostat via compatible mobile apps.
- Operating Range: Functions in temperatures from 32°F to 120°F and up to 90% RH non-condensing environments.
The TH6320ZW2003 provides a modern, connected thermostat solution tailored for smart home integration and energy-conscious climate control. Its dual power options and broad HVAC compatibility make it ideal for both new installations and retrofit scenarios.
