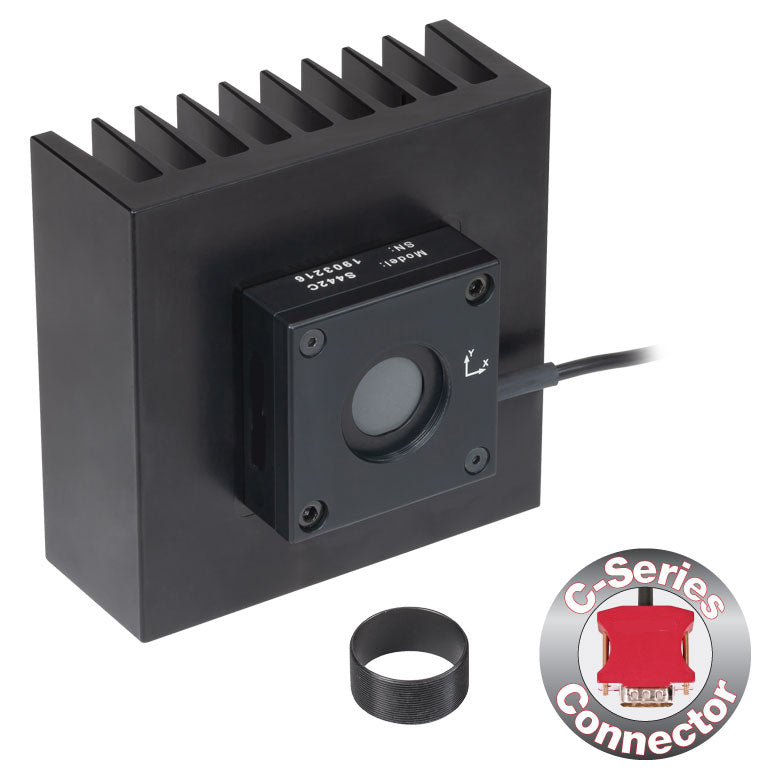

TH-S442C - Thermal Power Sensor Head, Position Sensing, 0.19 - 20 µm, 50 W, Ø17.5 mm
Product Drawing
| Wavelength Range |
190 nm - 20 µm |
| Optical Power Working Range |
10 mW - 50 W |
| Max Average Power Densitya |
1.5 kW/cm2
|
| Max Pulse Energy |
0.3 J/cm2 (1 ns Pulse)
5 J/cm2 (1 ms Pulse) |
| Power Resolutionb |
1 mW |
| Linearity |
±1% |
| Measurement Uncertaintyc |
±5% at 1064 nm;
±7% for 250 nm - 17 µm |
| Position Resolution |
10 µm |
| Position Accuracyd |
100 µm (1 mm Circle); 300 µm (6 mm Circle) |
| Position Repeatabilityd |
25 µm (1 mm Circle); 150 µm (6 mm Circle) |
| Response Timee |
<0.6 s |
| Coating / Diffuser |
High Power Broadband |
| Cooling |
Convection |
| Head Temperature Measurement |
Thermistor (NTC) |
| Input Aperture |
Ø17.5 mm |
| Sensor Dimensions |
100.0 m x 100.0 mm x 57.8 mm
(3.94" x 3.94" x 2.28") |
| Cable Length |
1.5 m |
| Connector |
D-Sub-9 Pin Male |
| Weight |
0.75 kg |
| Mounting Options |
Two 8-32 / M4 Universal Taps,
SM1 (1.035"-40) Internal Thread,
Externally Threaded SM1 Coupler Included |
| Detector Type |
Thermopile in Quadrant Configuration |
| Wavelength Range |
190 nm - 20 µm |
| Optical Power Range |
10 mW - 50 W |
| Power Resolution |
1 mW |
| Position Resolution |
10 µm |
| Housing Features |
Internal SM1 Threading, Heat Sink |
| Connector |
D-Sub 9 Pin Male (C Series) |
