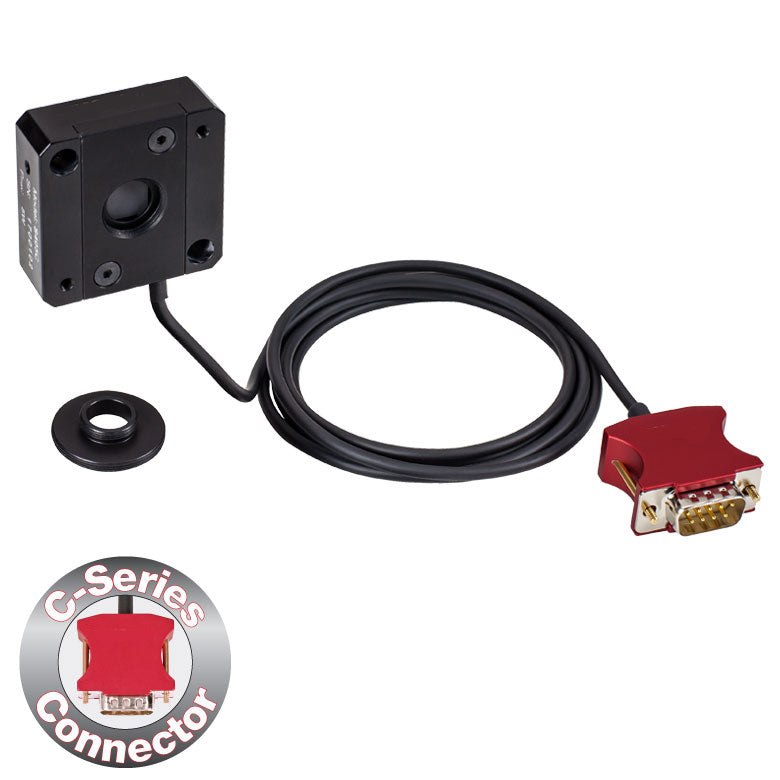

TH-S405C - Thermal Power Sensor Head, Surface Absorber, 0.19 - 20 µm, 5 W, Ø10 mm
Product Drawing
| Wavelength Range |
190 nm - 20 µm |
| Optical Power Range |
100 µW - 5 W |
| Input Aperture Size |
Ø10 mm |
Active Detector Area
|
10 mm x 10 mm |
| Max Optical Power Density |
1.5 kW/cm² (Avg.) |
| Detector Type |
Thermal Surface Absorber (Thermopile) |
| Linearity |
±0.5% |
| Resolutionc |
5 µW |
| Measurement Uncertaintyd |
±3% @ 1064 nm ±5% @ 250 nm - 17 µm |
| Response Timee |
1.1 s |
| Cooling |
Convection (Passive) |
Housing Dimensions (Without Adapter) |
40.6 mm x 40.6 mm x 16.0 mm (1.60" x 1.60" x 0.63") |
Temperature Sensor (In Sensor Head) |
NTC Thermistor |
| Cable Length |
1.5 m |
| Post Mounting |
Universal 8-32 / M4 Taps (Post Not Included) |
| 30 mm Cage Mounting |
Two 4-40 Tapped Holes & Two Ø6 mm Through Holes |
| Aperture Threads |
Internal SM05 |
| Accessories |
Externally SM1-Threaded Adapter |
