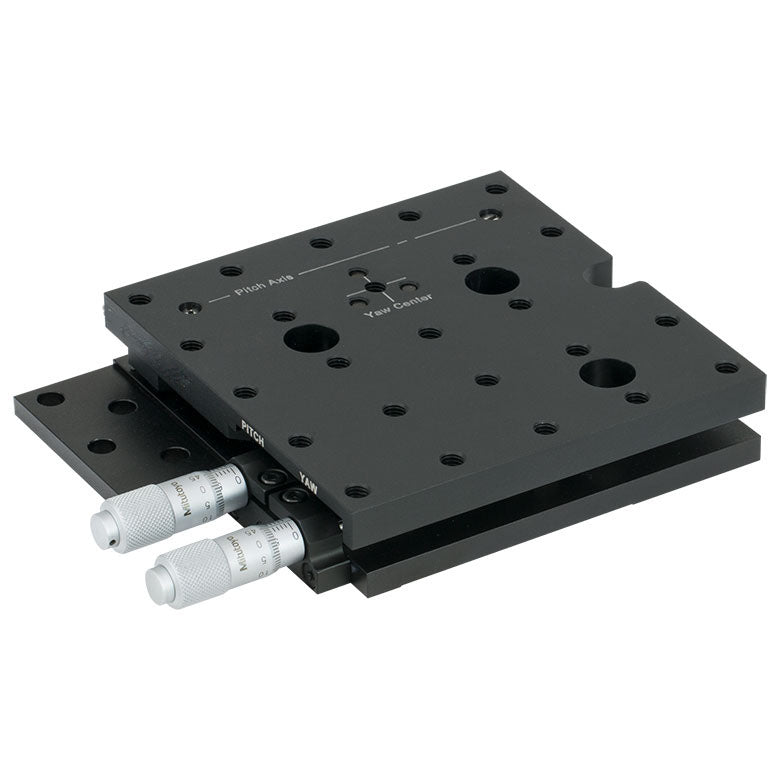

TH-PY004-M - High-Load Pitch and Yaw Platform, M6 Taps
- Micrometer-Operated Pitch and Yaw Adjustment
- 1/4"-20 (M6) Tapped Holes with 1.0" (25.0 mm) Spacing
- Combine with Linear Stages to Add Rotational Adjustment
- 0.98" (25.0 mm) Deck Height
- Compact Footprint Measuring 6.42" x 4.53" x 0.98" (163 mm x 115 mm x 25 mm) with Adjusters
- Black Anodized Aluminum Construction
Product Specification Sheet
|
Key Specifications
|
| Adjustment Range |
Pitch: ±2.5° Yaw: ±4.05° |
| Minimum Incremental Movementa
|
Pitch: 9 arcsec Yaw: 16.2 arcsec |
| Crosstalk |
<0.05° (3 arcmin) |
| Horizontal Load Capacity (Max)b
|
5.0 kg (11.0 lb) |
| Vertical Load Capacity (Max)c
|
Load Distance from Top Platform |
Max Load |
| 30 mm (1.18") |
1.8 kg (4.0 lbs) |
| 50 mm (1.97") |
1.1 kg (2.4 lbs) |
| 80 mm (3.15") |
0.7 kg (1.5 lbs) |
| Deck Height |
25 mm (0.98") |
| Bushing Diameter |
9.5 mm (0.375") |
| Weight (Including Drives) |
780 g (1.72 lb) |
| Construction |
Black Anodized Aluminum |
