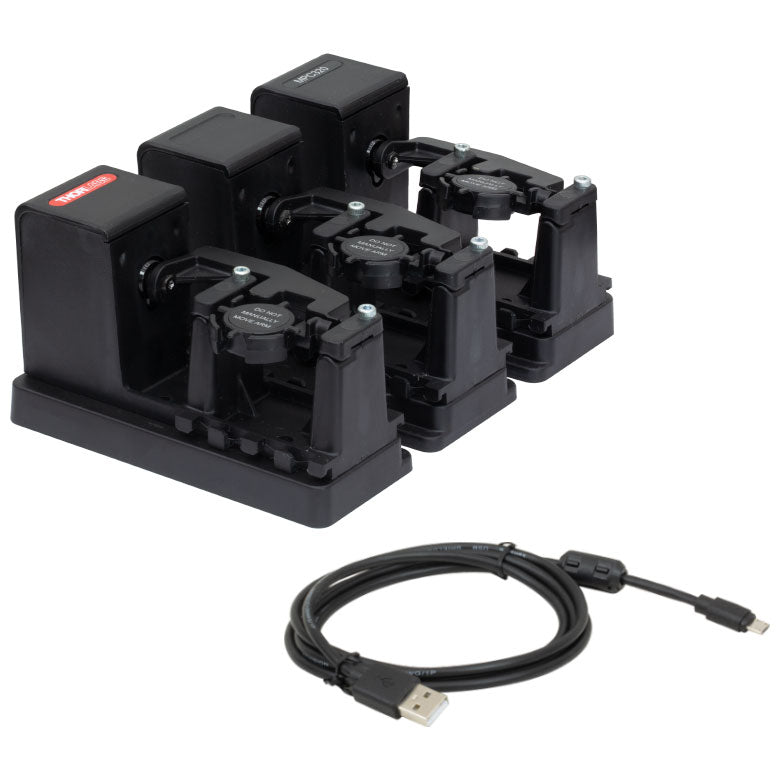

TH-MPC320 - Motorized Fiber Polarization Controller for Ø900 µm Jacket Fiber, 3 Paddles, Ø18 mm
- Polarization Over Full Poincaré Sphere
- Motorized Paddle Rotation from 0° to 170°
- Compatible with Ø900 µm Jacketed Fiber
- Operate Remotely Using Kinesis® Software via USB
Product Specification Sheet
| Item # |
TH-MPC220 |
TH-MPC320 |
| Paddle Specifications |
| Number of Paddles |
2 |
3 |
| Loop Diameter (Ø900 µm Jacketed Fiber) |
18 mm |
| Paddle Rotation |
0 to 170° |
| Compatible Fiber |
Ø900 µm Jacket Single Mode Fibers and Patch Cables |
| Maximum Number of Loops per Paddle |
4 |
| Minimum Fiber Length |
75 cm for 1 Loop per Paddle
110 cm for 4 Loops per Paddle |
95 cm for 1 Loop per Paddle
155 cm for 4 Loops per Paddle |
| Minimum Step Size |
0.12° |
| Maximum Rotation Speed |
400°/sec |
| Bidirectional Repeatability |
2° |
| Unit Dimensions (L x W x H) |
85.2 mm x 115.7 mm x 61.0 mm
(3.35" x 4.55" x 2.40") |
143.2 mm x 101.4 mm x 61.0 mm
(5.64" x 3.99" x 2.40") |
| Footprint for Full Paddle Rotation (L x W x H) |
90.1 mm x 115.7 mm x 62.0 mm
(3.55" x 3.99" x 2.44") |
145.3 mm x 101.4 mm x 62.0 mm
(5.72" x 3.99" x 2.44") |
| Operating Temperature |
-20° to +60°C |
| Construction Material (Controller Body) |
Black Acrylonitrile Butadiene Styrene (ABS) |
| Motor Specifications |
| Motor Type |
DC Motor |
| Motor Drive Voltage |
5 V |
| CPU Connection |
Micro USB Type B (Cable Included) |
