TH-FTK01 - Stub-Style BNC Terminator Kit, Set of 8

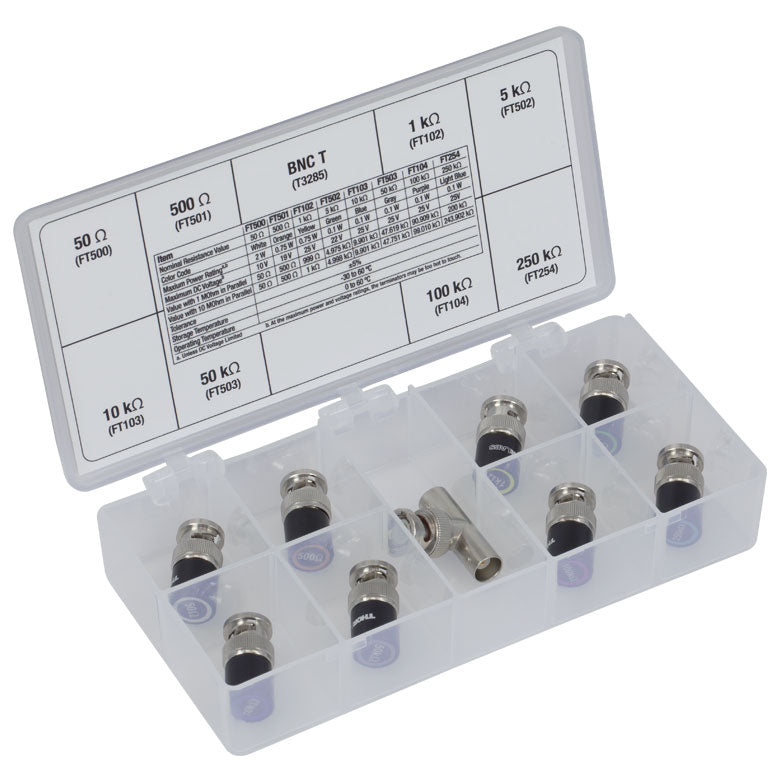

The TH-FTK01 Stub-Style BNC Terminator Kit contains eight terminators with resistance values ranging from 50 Ω to 250 kΩ. One T3285 BNC "T" Adapter (F-M-F) is also included in the terminator kit. When using these terminators, it is necessary to use a BNC "T" adapter to connect both the signal BNC cable and the terminator to the detector. The terminators and adapter are packaged in a 7.0" x 3.5" x 1.25" (177.8 mm x 88.9 mm x 31.8 mm) plastic box with nine labeled compartments. This kit offers added savings over individual resistor purchases. The table below provides specifications for each BNC terminator.
| Resistor Item # |
THFT500 |
THFT501 |
THFT102 |
THFT502 |
THFT103 |
THFT503 |
THFT104 |
THFT254 |
| Nominal Resistance Value |
50 Ω |
500 Ω |
1 kΩ |
5 kΩ |
10 kΩ |
50 kΩ |
100 kΩ |
250 kΩ |
| Color Code |
White |
Orange |
Yellow |
Green |
Blue |
Gray |
Purple |
Light Blue |
| Maximum Power Ratinga,b
|
2 W |
0.75 W |
0.75 W |
0.1 W |
0.1 W |
0.1 W |
0.1 W |
0.1 W |
| Maximum DC Voltageb
|
10 V |
19 V |
25 V |
22 V |
25 V |
25 V |
25 V |
25 V |
| Value with 1 MΩ in Parallelc
|
50 Ω |
500 Ω |
999 Ω |
4.975 kΩ |
9.901 kΩ |
47.619 kΩ |
90.909 kΩ |
200 kΩ |
| Value with 10 MΩ in Parallelc
|
50 Ω |
500 Ω |
1 kΩ |
4.998 kΩ |
9.990 kΩ |
49.751 kΩ |
99.010 kΩ |
243.902 kΩ |
| Resistance Tolerance |
±5% |
| Storage Temperature |
-30 to 60 °C |
| Operating Temperature |
0 to 60 °C |
