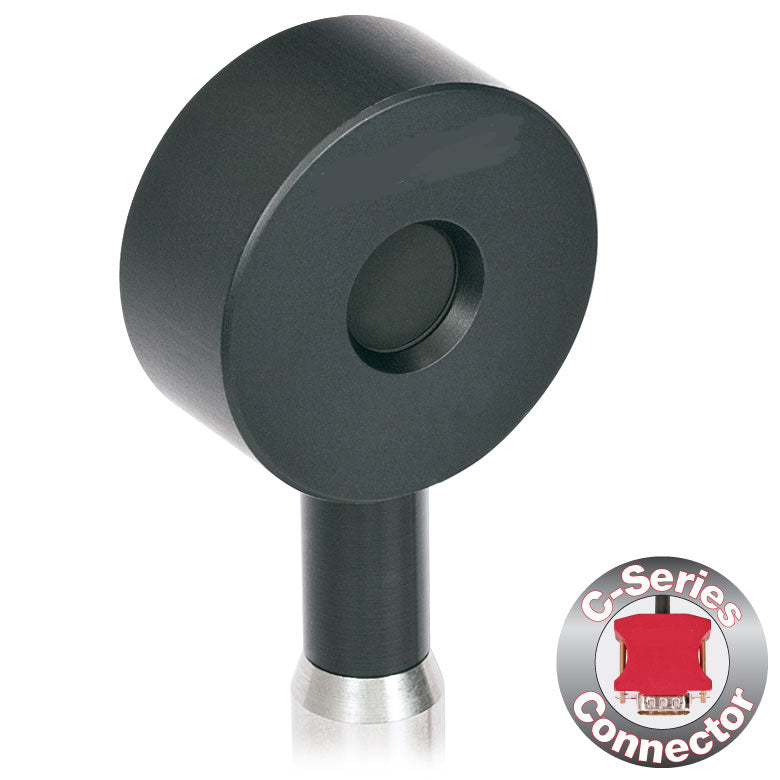

TH-ES120C - Pyroelectric Energy Sensor, Black Coating, 0.185 - 25 µm, 500 mJ, Ø20 mm, 30 Hz
Product Drawing
| Detector Type |
Standard Pyroelectric Energy Sensor |
| Wavelength Range |
185 nm - 25 µm |
| Optical Energy Range |
100 µJ - 500 mJ |
Max Repetition Rate
(@ 1 MΩ Load) |
30 Hz |
Max Power Density
(Pulse Width)
|
8 MW/cm2
(10 ns Pulse) |
Max Pulse Energy Density
(Pulse Width)
|
0.15 J/cm2
(1 µs Pulse) |
| Max Average Power |
0.15 W |
| Resolution |
1 µJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 185 nm - 25 µm |
| Thermal Time Constant |
20 ms |
| Resolution |
1 µJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 185 nm - 25 µm |
| Housing Dimensions |
Ø50 mm x 18 mm |
| Active Detector Area |
314.2 mm2
|
| Cable Length |
1.5 m (60") |
| Post Mounting |
8-32 Mounting Thread, 8-32 and M4 Insulating Adapters Included |
| Cage Mounting |
Four 4-40 Threaded Holes for
30 mm Cage Systems |
| Input Aperture Size |
Ø20 mm |
| Wavelength Range |
0.185 - 25 µm |
| Energy Range |
100 µJ - 500 mJ |
| Max Repetition Rateb |
30 Hz |
Max Power Density
(Pulse Width)
|
8 MW/cm2
(10 ns Pulse) |
Max Pulse Energy Density
(Pulse Width) |
0.15 J/cm2
(1 µs Pulse) |
