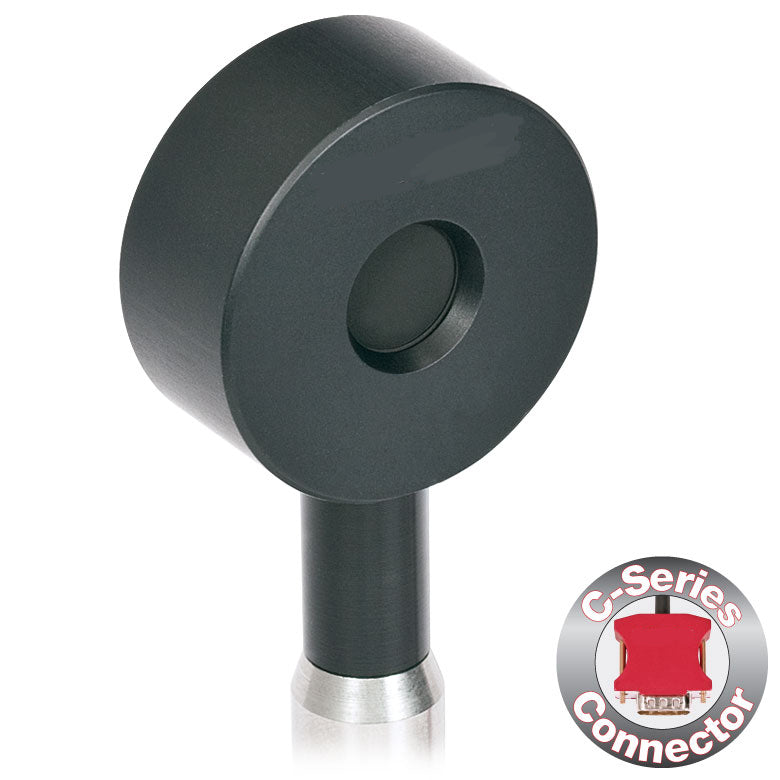

TH-ES111C - Pyroelectric Energy Sensor, Black Coating, 0.185 - 25 µm, 150 mJ, Ø11 mm, 40 Hz
Product Drawing
| Detector Type |
Standard Pyroelectric Energy Sensor |
| Wavelength Range |
185 nm - 25 µm |
| Optical Energy Range |
10 µJ - 150 mJ |
Max Repetition Rate (@ 1 MΩ Load) |
40 Hz |
Max Power Density (Pulse Width)
|
8 MW/cm2 (10 ns Pulse) |
Max Pulse Energy Density (Pulse Width)
|
0.15 J/cm2 (1 µs Pulse) |
| Max Average Power |
0.15 W |
| Resolution |
100 nJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 190 nm - 25 µm |
| Thermal Time Constant |
20 ms |
| Resolution |
100 nJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 190 nm - 25 µm |
| Housing Dimensions |
Ø36 mm x 16 mm |
| Active Detector Area |
95.0 mm2
|
| Cable Length |
1.5 m (60") |
| Post Mounting |
8-32 Mounting Thread, 8-32 and M4 Insulating Adapters Included |
| Cage Mounting |
N/A |
| Input Aperture Size |
Ø11 mm |
| Wavelength Range |
0.185 - 25 µm |
| Energy Range |
10 µJ - 150 mJ |
| Max Repetition Rateb |
40 Hz |
Max Power Density (Pulse Width)
|
8 MW/cm2 (10 ns Pulse) |
Max Pulse Energy Density (Pulse Width) |
0.15 J/cm2 (1 µs Pulse) |
