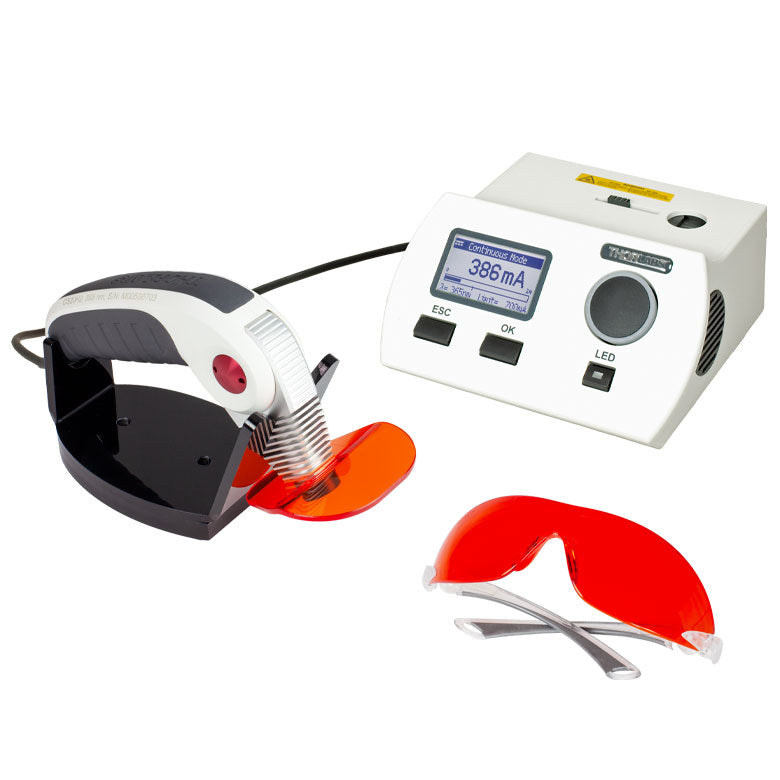

TH-CS20K5 - UV Curing LED System, 405 nm
Product Drawing
Wavelength 405 nm
Power 748 mW (Min)
Irradiance (without Optics) 61 mW/cm2 (Min)
Beam Diameter (without Optics) 32 mm
Risk Group RG2
UV LED Power 748 mW (Min) 1082 mW (Typical)
| Common Specifications |
| Operating Modes |
| Continuous Mode |
Power: 0 - 100% |
| Timer Mode |
Power: 0 - 100%
Time: 1s - 2 h 46 min 39 s |
| Config Mode |
10 Configurations in Timer Mode |
| Slope Mode |
Time: 1 s - 2 h 46 min 39 s
Start Power: 0 - 100%
Stop Power: 0 - 100% |
| LED |
| LED Chip |
2.5 mm x 2.5 mm |
| Risk Groupa |
RG2 |
| Beam Diameter |
| Collimated using CS20A2b |
9 mm |
| Focused using CS20A3c |
1 mm |
Divergent without Optics
(Distance: 20 mm) |
32 mm |
| General |
| Operating Temperature Ranged |
0 - 40 °C |
| Storage Temperature Range |
-40 to 70 °C |
Main Unit Dimensions
(W x H x D)
|
157 mm x 80 mm x 158 mm
(6.2" x 3.2" x 6.2") |
Hand Held Unit Dimensions
(W x H x D)
|
95 mm x 180 mm x 32 mm
(3.6" x 7.1" x 1.3") |
| Warm Up Time for Rated Accuracy |
<10 min |
| Weight |
<1 kg |
| Driver Unit Operating Specifications |
| Maximum Voltage |
20 V |
| Maximum Current |
2 A |
