[shortdesc] Uninterruptible power supply[/shortdesc]
[properties]
| Product Name |
Teltonika BAT120 Uninterruptible Power Supply (SKU: BAT120) |
| Description |
The BAT120 is a compact, industrial-grade uninterruptible power supply (UPS) designed to provide continuous power to compatible Teltonika devices during power outages or fluctuations. It features a 2300 mAh battery, delivering up to 6 hours of backup power. |
| Brand |
Teltonika Networks |
| Type |
Uninterruptible Power Supply (UPS) |
| Product Category |
Power Supply |
| Mounting Options |
DIN rail, wall mount, or flat surface placement |
| Regulatory Approvals |
CE/RED, UKCA, EAC |
[/properties]
[specifications]
| Battery Capacity |
2600 mAh (17 Wh) |
| Input Voltage Range |
9 – 30 VDC |
| Output Voltage in Battery Mode |
12 VDC |
| Maximum Output Power in Battery Mode |
22 W (1.8 A) |
| Input Protection |
Reverse polarity and overvoltage protection |
| Output Protection |
3 A overcurrent protection |
| Operating Temperature |
0°C to 45°C |
| Dimensions |
100 x 30 x 85 mm |
| Weight |
315 g |
[/specifications]

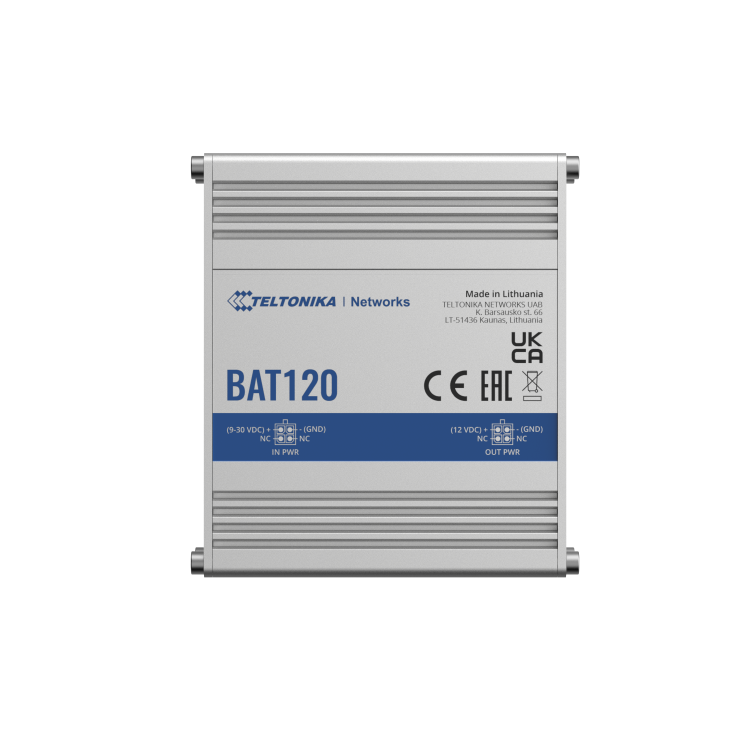

TELTONIKA Power Supply (BAT120)
The Teltonika BAT120 is an uninterrupted power supply designed for Teltonika devices, providing up to 6 hours of backup power with its 18650 Li-Ion cells. Featuring rugged aluminum housing, reverse polarity and overvoltage protection, and compact design, it ensures reliable performance in critical applications. Its dual 4-pin DC ports support 9–30 VDC input and 12 VDC output, making it a versatile choice for maintaining connectivity during power disruptions.
Key Features:
- 6 hours backup power
- Reverse polarity protection
- Compact and rugged design
