[shortdesc] Power cable with 4-way open wire[/shortdesc]
[properties]
| Product Name |
Teltonika PR2PL15B Power Cable with 4-Way Open Wire (SKU: PR2PL15B) |
| Description |
The PR2PL15B is a power cable designed for secure connections in IoT solutions. It features a 4-way open wire connector on one end and a 4-pin, 3 mm pitch connector on the other, facilitating easy integration with various devices. |
| Brand |
Teltonika Networks |
| Type |
Power Cable |
| Product Category |
Powering Options |
| Subcategory |
AC-DC Power Supply |
| Input Connector |
4-way open wire |
| Output Connector |
4-pin, 3 mm pitch |
| Cable Specifications |
4 x 0.5 mm² (20 AWG) |
| Total Length |
1500 mm |
| RoHS Compliant |
Yes |
| Maximum Voltage |
300 V |
[/properties]
[specifications]
| Input Connector |
4-way open wire |
| Output Connector |
4-pin, 3 mm pitch |
| Cable Specifications |
4 x 0.5 mm² (20 AWG) |
| Total Length |
1500 mm |
| Color Coding |
Black (Pin 1): Ground –, Red (Pin 2): Power +, Red (Pin 3): Power +, Black (Pin 4): Ground – |
| Compatible Devices |
BAT120 Uninterruptible Power Supply, TSW100, TSW110 switches |
| Maximum DC Current Per Contact |
4.5 A |
| Temperature Range |
-20 °C to 80 °C |
| Cable Material Isolation Voltage |
1.5 kV |
[/specifications]

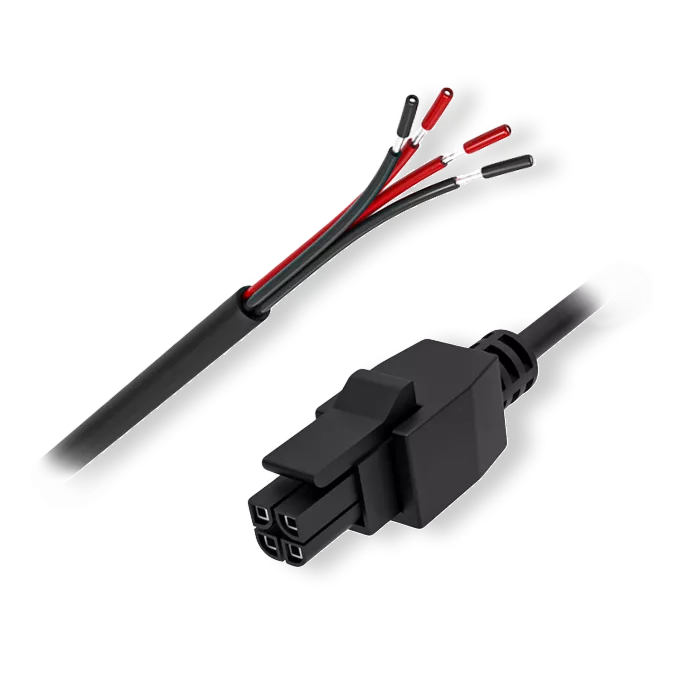

TELTONIKA Power Cable (PR2PL15B)
The Teltonika PR2PL15B Power Cable features a 4-way open wire design with a 4-pin, 3 mm pitch connector, making it ideal for custom power setups. It supports up to 300V and 4.5A per contact, ensuring reliable performance. With a 1.5-meter length, it offers flexibility for various installations.
Key Features:
- 4-way open wire with 4-pin, 3 mm pitch connector
- 1.5-meter cable length
- Supports up to 300V and 4.5A per contact
- Versatile for custom power setups
