[shortdesc] WIFI DuaL-Band magnetic SMA antenna[/shortdesc]
[properties]
| Product Name |
Teltonika Wi-Fi Dual-Band Magnetic SMA Antenna (SKU: PR1KRD30) |
| Description |
The PR1KRD30 is a dual-band Wi-Fi antenna designed for enhanced wireless performance. It features a magnetic mount for easy installation and comes with a 1.5-meter RG174 cable terminated with an RP-SMA Male connector. |
| Brand |
Teltonika Networks |
| Type |
Wi-Fi Dual-Band Magnetic SMA Antenna |
| Product Category |
Antennas |
| Connector Type |
RP-SMA Male |
| Cable Length |
1.5 meters (RG174) |
| Mounting Method |
Magnetic |
| Height |
88.5 mm |
| IP Rating |
IP50 |
[/properties]
[specifications]
| Frequency Range |
2400 ~ 2500 MHz, 4950 ~ 5850 MHz |
| Polarization |
Vertical |
| Gain |
3.0 dBi |
| VSWR |
< 2.0 |
| Impedance |
50 Ω |
| Operating Temperature |
-40°C to +70°C |
| RoHS Compliant |
Yes |
[/specifications]

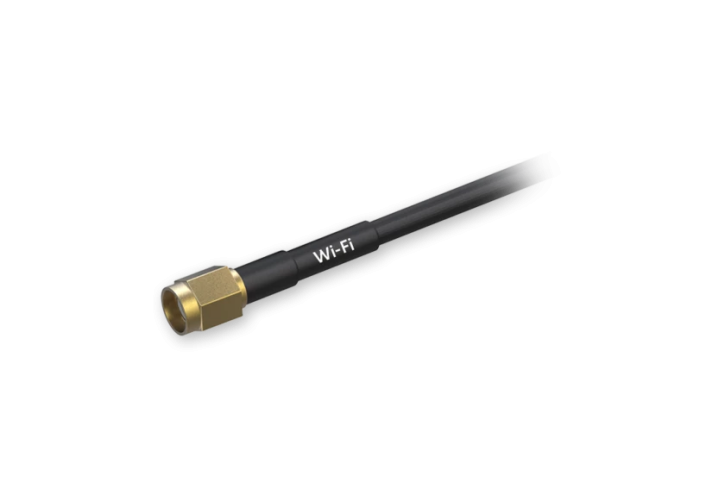

TELTONIKA Antenna (PR1KRD30)
The Teltonika PR1KRD30 WiFi Dual-Band Magnetic SMA Antenna is optimized for stable WiFi communication across 2.4 GHz and 5 GHz bands. Delivering up to 3.0 dBi gain with vertical polarization, it ensures reliable performance. The antenna features a magnetic base for secure attachment and includes a 1.5-meter RG174 cable with an RP-SMA male connector for flexible positioning.
Key Features:
- Supports WiFi dual-band frequencies: 2.4 GHz and 5 GHz
- Compact design with 3.0 dBi gain
- Magnetic base for secure mounting
- 1.5-meter RG174 cable with RP-SMA male connector
