[shortdesc] COMBO MIMO Mobile/GNSS/WIFI ROOF SMA antenna[/shortdesc]
[properties]
| Product Name |

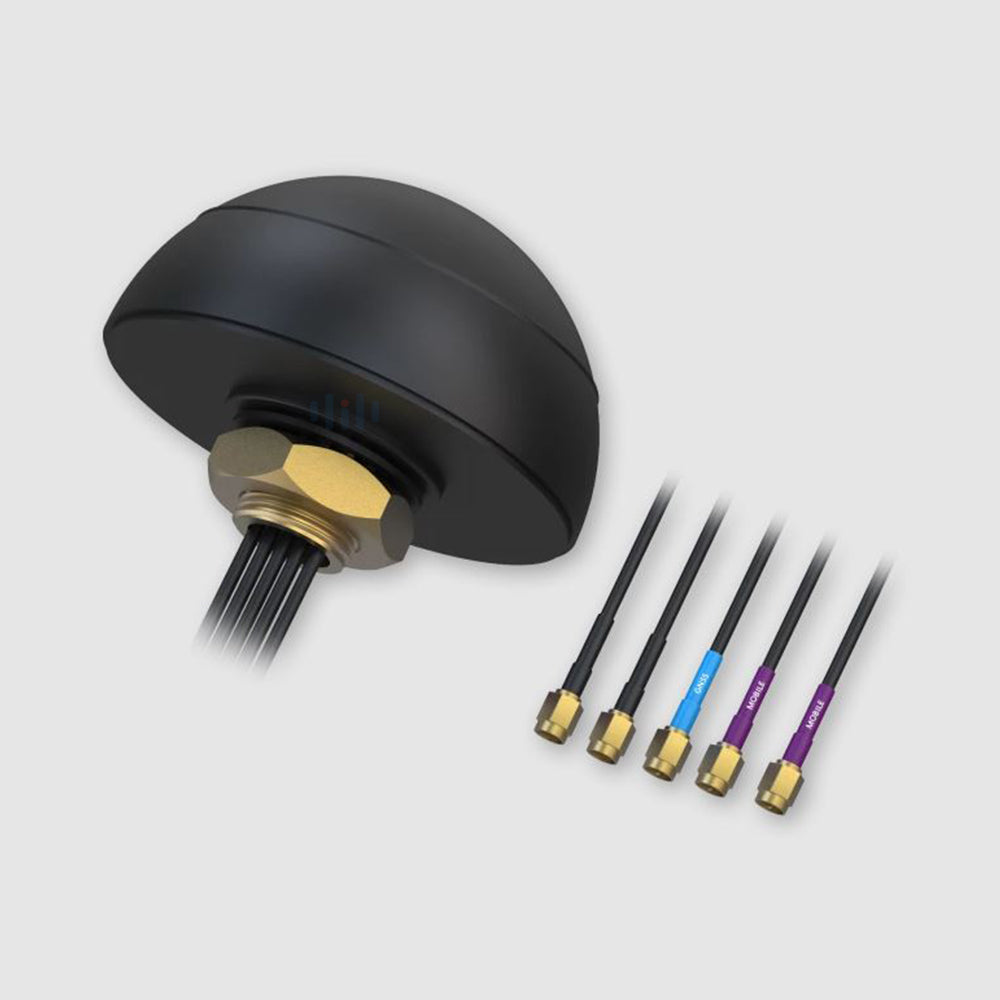

Teltonika Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna (SKU: PR1KCO28) |
| Description |
The PR1KCO28 is a versatile roof-mounted antenna that supports multiple wireless technologies, including LTE, GNSS, and Wi-Fi. It features MIMO capabilities for enhanced connectivity and comes with five 3-meter RG174 cables terminated with SMA and RP-SMA connectors. |
| Brand |
Teltonika Networks |
| Type |
Combo MIMO Mobile/GNSS/Wi-Fi Roof Antenna |
| Product Category |
Antennas |
| Mounting Method |
Screw mount |
| Radome Ingress Protection Rating |
IP65 (excluding cable outlet) |
| Radome Material |
ABS |
| Housing Dimensions |
Ø 110 x 55 mm |
| Cable |
5x RG174, 3000 mm |
| Operating Temperature |
-40°C to +85°C |
| Weight |
535 ± 10 g |
| UV Resistance |
Yes |
| RoHS Compliant |
Yes |
[/properties]
[specifications]
| Frequency Range |
Mobile: 698 – 960 MHz, 1710 – 2690 MHz; Wi-Fi: 2400 – 2483.5 MHz, 4900 – 5825 MHz; GNSS: 1575.42 – 1610 MHz |
| Polarization |
Linear for Mobile and Wi-Fi; Right-Hand Circular Polarization (RHCP) for GNSS |
| Gain |
Mobile: 3.0 dBi; Wi-Fi: 2.0 dBi; GNSS: 28 dBi |
| VSWR |
Mobile and Wi-Fi: < 3.0; GNSS: < 2.0 |
| Impedance |
50 Ω |
| Connector Type |
2x SMA Male for Mobile, 2x RP-SMA Male for Wi-Fi, SMA Male for GNSS |
| LNA Gain |
28 ± 2 dB for GNSS |
| LNA Noise Figure |
≤ 1.5 dB for GNSS |
| Supply Voltage |
3 – 5 VDC for GNSS |
| Current Consumption |
< 15 mA for GNSS |
[/specifications]
TELTONIKA Antenna (PR1KCO28)
The Teltonika PR1KCO28 Combo MIMO Antenna is a versatile solution combining LTE, GNSS, and WiFi connectivity in a single compact design. Supporting multiple frequency bands, it provides reliable performance with 3 dBi LTE gain, 2 dBi WiFi gain, and 28 dB GNSS LNA gain. Built with IP65 ingress protection, it is ideal for outdoor installations, with a screw-mount design ensuring secure placement.
Key Features:
- Supports LTE, GNSS, and WiFi
- 3 dBi LTE, 2 dBi WiFi, and 28 dB GNSS gain
- IP65-rated for outdoor durability
