[shortdesc] 4-PIN Power Adapter with I/O Access[/shortdesc]
[properties]
| Product Name |

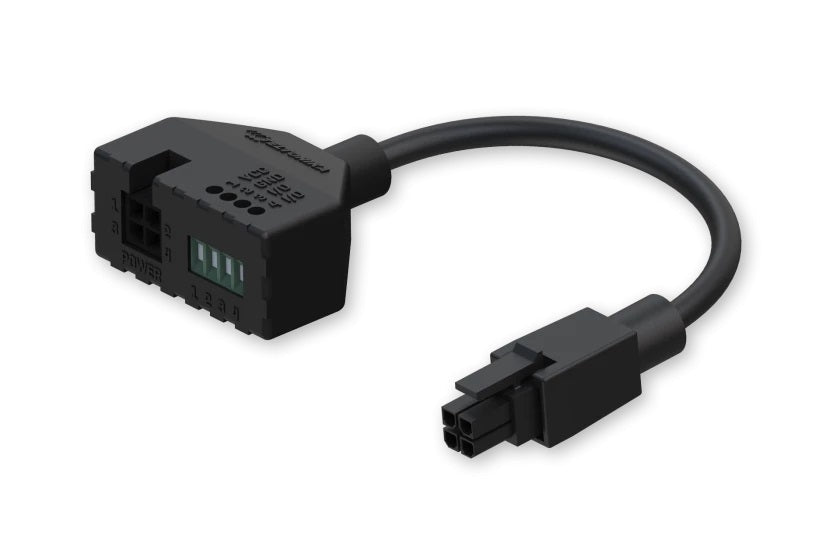

Teltonika PR5MEC21 4-Pin Power Adapter with I/O Access (SKU: PR5MEC21) |
| Description |
The PR5MEC21 is a 4-pin power adapter designed to provide easy access to I/O functionality for compatible Teltonika Networks devices. It features a standard 4-pin to 4-pin power connection with an additional terminal for configurable digital inputs and outputs. |
| Brand |
Teltonika Networks |
| Type |
Power Adapter |
| Product Category |
Powering Options |
| Subcategory |
AC-DC Power Supply |
| Input Connector |
4-pin, 3 mm pitch and 4-way screw terminal block |
| Output Connector |
4-pin, 3 mm pitch |
| Cable Specifications |
4 x 0.20 mm² (24 AWG), 100 mm |
| Weight |
15 g |
[/properties]
[specifications]
| Input Connector |
4-pin, 3 mm pitch and 4-way screw terminal block |
| Output Connector |
4-pin, 3 mm pitch |
| Cable Specifications |
4 x 0.20 mm² (24 AWG), 100 mm |
| Weight |
15 g |
| Pinout Configuration |
Pin 1: Power +, Pin 2: Ground –, Pin 3: Input/Output, Pin 4: Input/Output |
| Compatible Devices |
BAT120 – Uninterruptible Power Supply, RUT200, RUT240, RUT241 routers |
| Pinout Configuration |
Pin 1: Power +, Pin 2: Ground –, Pin 3: Input/Output, Pin 4: Input/Output |
| Conductor Cross Section (Solid/Flexible) |
0.14 – 0.50 mm² (20 – 26 AWG) |
| Conductor Cross Section (Flexible with Ferrule and Plastic Sleeve) |
0.25 – 0.30 mm² (22 – 23 AWG) |
[/specifications]
TELTONIKA Adapter (PR5MEC21)
The Teltonika PR5MEC21 is a 4-pin power adapter with I/O access, designed for seamless integration with Teltonika devices. It allows easy access to configurable digital inputs and outputs through its 4-way screw terminal block. With a durable 4-pin, 3 mm pitch connector and 100 mm cable, this adapter ensures efficient and reliable performance.
Key Features:
- 4-pin, 3 mm pitch connector with screw terminal block
- Provides access to digital inputs and outputs
- Compact design with 100 mm cable length
- Compatible with Teltonika devices
