Overview

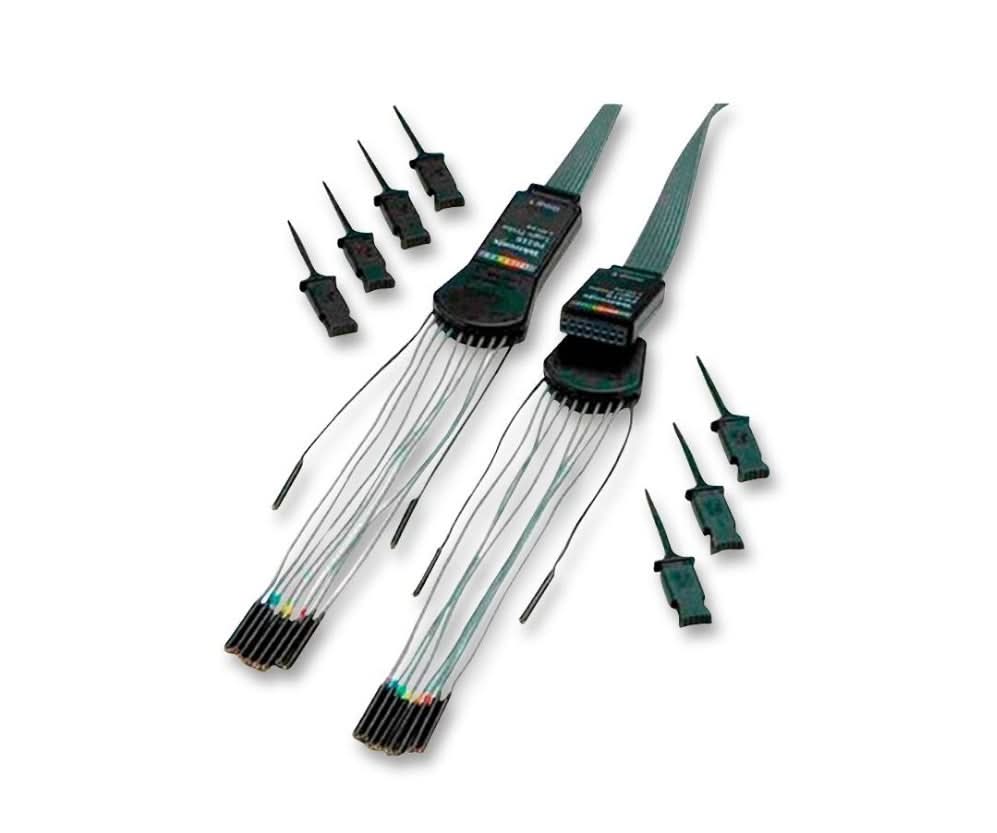

This unique probe design offers two eight-channel pods, simplifying the process of connecting to the device-under-test. When connecting to square pins, the P6316 can connect directly to 8×2 square pin headers spaced on tenth-inch centers. When more attachment flexibility is required, you can use the included flying lead sets and grabbers to clip onto surface mount devices or test points.

Specifications

Model Number:  P6316

Brand: Tektronix

Alt Part Number(s):  P6316

Product Type:  Logic Probe

Technical Description

Brand:  Tektronix

Model Number:  P6316

Series:  MSO2000 Series

Input Channels:  16 digital (organized into two eight-channel pods)

Cable Length: 0.9 m

Input Capacitance:8 pF

Input Impedance:101 kΩ

Maximum Input Voltage:40 V

Minimum Signal Swing:  500 mV

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

*
