Description

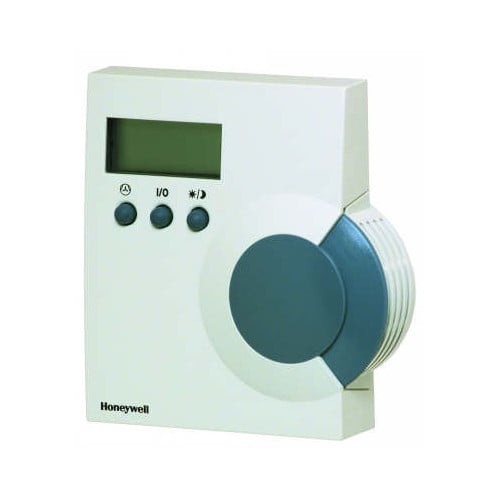

The Honeywell T7560A1018 is a digital wall module and temperature sensor designed for advanced room climate control in commercial building systems. It features an LCD display, setpoint adjustment wheel, push-button interface, and tamper-resistant housing—all optimized for seamless integration with Honeywell Excel controllers.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
T7560A1018 |
| Subcategory |
Tension Sensor |
| Sensor Type |
20 kΩ NTC Thermistor |
| Display |
LCD (continuous temperature and status readout)
|
Setpoint Adjustment
|
Wheel (55°F to 85°F range) |
| Temperature Range (Operation) |
32°F to 104°F (0°C to 40°C) |
| Humidity Range (Operation) |
5% to 90% RH, non-condensing |
| Compatibility |
Honeywell Excel 10/20/500/600 Controllers |
| Override Button |
Yes (Occupied/Unoccupied toggle) |
| Display Units |
Selectable °F or °C |
| Cover Type |
Tamper-resistant |
| Mounting Base |
Separate base for easy installation |
| Weight |
0.30 lbs
|
Information About T7560A1018
The T7560A1018 is a precision 20 kΩ NTC digital wall module that functions as both a temperature sensor and user interface, designed for use with Honeywell Excel 10 through Excel 600 controllers. Operating within a temperature range of 32°F to 104°F, it supports a configurable setpoint range of 55°F to 85°F and functions reliably in environments with 5–90% non-condensing relative humidity. The unit includes a tamper-resistant locking cover and a clear LCD display that continuously shows room temperature, fan status, mode (occupied/unoccupied/standby), and humidity if configured. Its user-friendly interface includes push-buttons for function control and a setpoint adjustment wheel. The module allows selectable Fahrenheit or Celsius display and offers absolute or relative setpoint types, improving flexibility for building occupants. Installation is simplified with a separate mounting base.
Key Features:
- Digital Display Interface: Large LCD continuously displays space temperature, mode, fan status, and other key parameters.
- 20 kΩ NTC Thermistor: Provides accurate temperature sensing across a wide range of ambient conditions.
- Full Excel Compatibility: Supports Excel 10, Excel 20, and Excel 600 series controllers.
- Customizable User Settings: Supports absolute/relative setpoint types and °F/°C temperature units.
- Tamper-Resistant Cover: Helps prevent unauthorized access or adjustments in public areas.
- Override Functionality: One-touch override allows temporary changes to occupancy status.
- Low Power Consumption: Designed for efficient integration into energy-sensitive control systems.
- Simple Installation: Separate mounting base speeds up field setup and replacement.
The T7560A1018 enables intuitive and secure temperature management in networked commercial HVAC systems.
