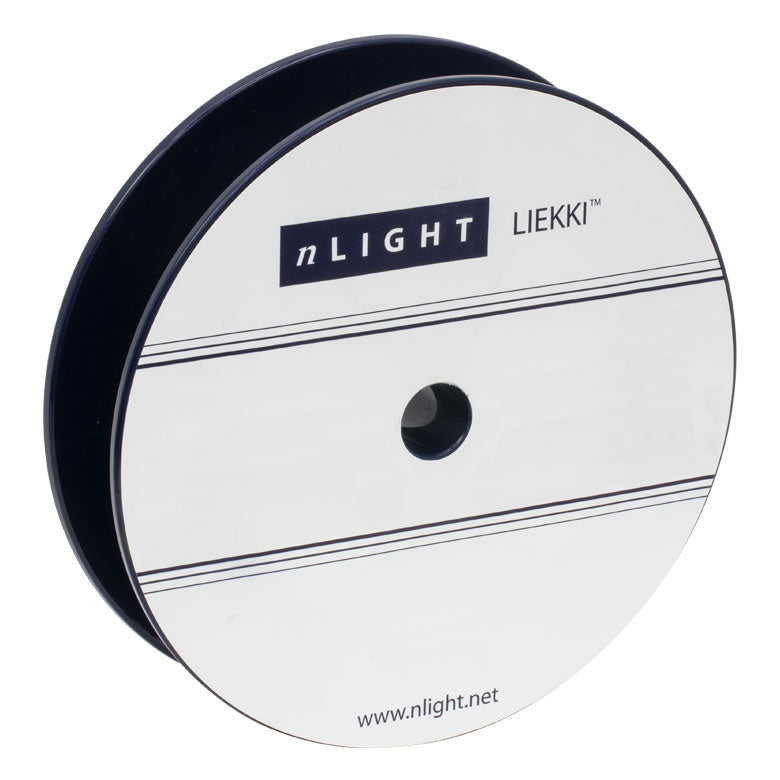

T-YB300-6-125-PM - Ytterbium-Doped PM Single Mode Single-Clad Fiber, 7.0 µm MFD, Unit Pricing Per Meter
Product Spec Sheet
Features
- Ytterbium-Doped Silica Fiber for ~1000 nm to 1100 nm Fiber Lasers and Amplifiers
- Single Mode and Large Mode Area Options Available
- Cladding-Pumped Designs for 1 mW to >20 W Output Power in Pulsed Operation
- Core-Pumped Single Clad Designs with High Core Pump Absorption
- Matched SM or LMA Passive Fiber Sold Below
- Industry-Standard Active Fiber Geometries with Ø125 or Ø250 µm Cladding
- PANDA Stress Rods for Polarization-Maintaining Operation
-
Type Single Mode
-
Cladding Type Single
- Absorption @ 920 nm 75 ± 10 dB/m
- Pump Type Core
- Core Diameter 5.5 µm
- Near-Field Mode Field Diameter at 1060 nm 7.0 ± 0.5 µm
-
Cladding Diameter 125 ± 2 µm
- High Core Pump Absorption: 75 ± 10 dB/m @ 920 nm
- Good Spliceability to Standard Single Mode Fibers
- Extremely High Photodarkening Resistivity
- Cladding Geometry Round, PANDA
- Core NA 0.12
- Coating Diameter 245 ± 15 µm
Core-Pumped, Single-Clad SM PM Fiber
| Item # |
YB300-6/125-PM |
| Cladding Geometry |
Round, PANDA |
| Mode Field Diameter (MFD) |
7.0 ± 0.5 µm |
| Peak Core Absorption @ 976 nm |
300 dB/m |
| Core Diameter |
5.5 µm |
| Cladding Diameter |
125 ± 2 µm |
| Coating Diameter |
245 ± 15 µm |
| Core Numerical Aperture (NA) |
0.12b
|
| Core Backgroud Loss @ 1200 nm |
≤25 dB/km |
| Coating Material |
Dual-Coated High-Index Acrylate |
| Cut-Off Wavelength |
860 ± 70 nm |
| Core Concentricity Error |
≤1.0 µm |
| Proof Test |
≥100 kpsi |
| Birefringence |
≥2.0 x 10-4
|
| Core Index |
Proprietary |
| Cladding Index |
Proprietary |
