T-YB1200-4-125 - Ytterbium Doped Single Mode Fiber, 4.4 µm MFD, Unit Pricing Per Meter

Features

• Ytterbium-Doped Silica Fiber for ~1000 nm to 1100 nm Fiber Lasers and Amplifiers
• Single Mode and Large-Mode-Area Fibers Available

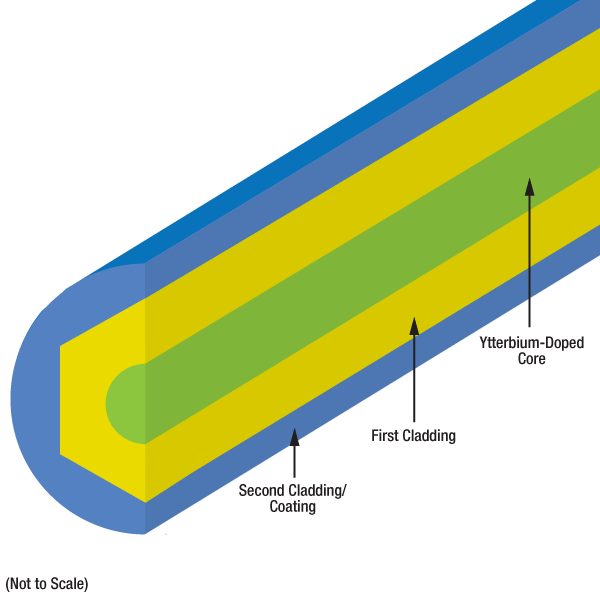

• Core- and Cladding-Pumped Designs for 1 mW to >100 W Output Power
• Matched Passive Fiber Also Sold Below
• Industry-Standard Active Fiber Geometries with Ø125, Ø250, or Ø400 µm Cladding

• Core-Pumped Design
• Telecom-Type Fiber Geometry for Easy Handling, Splicing, and Connectorization
• Good Spliceability to HI1060-Type Passive SM Fibers

Applications

• Low Noise, Low Power Preamplifiers
• ASE Sources
• CW and Pulsed Lasers and Amplifiers

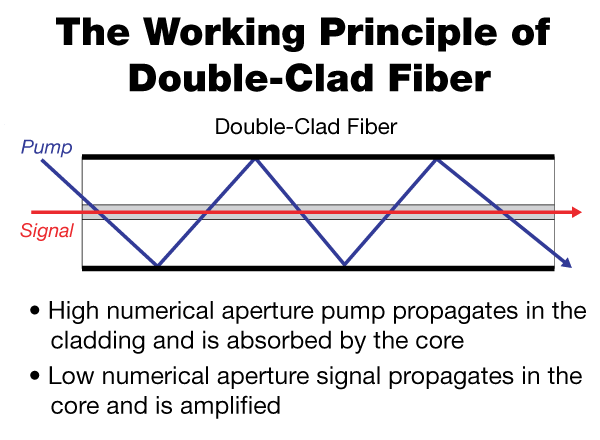

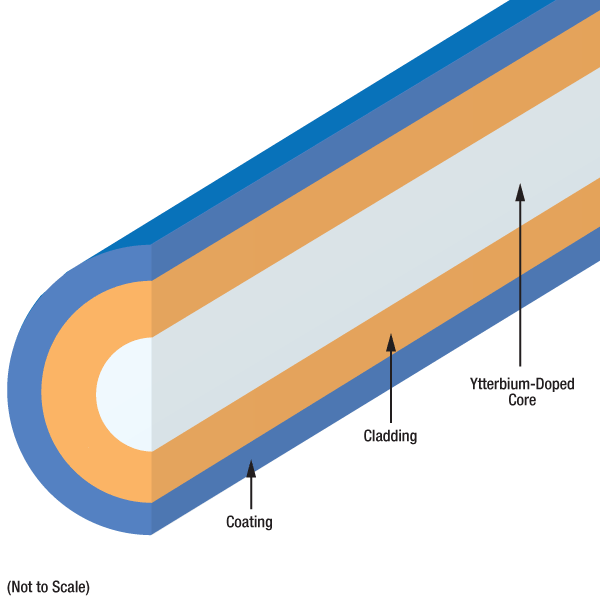

Liekki T-YB1200-4/125 is a highly doped ytterbium fiber for low noise, low nonlinearity preamplifiers and lasers. It is a single-clad fiber for core-pumped applications. This fiber is ideal for use as a preamplifier in a fiber amplifier chain with double cladding fiber acting as a power amplifier.

This fiber's telecom-like geometry makes it compatible with low-cost pump diodes, standard single mode passive fibers, and standard telecom connectors and splicing techniques.

• Cladding Geometry Round
• Absorption @ 920 nm 280 ± 50 dB/m
• Mode Field Diameter 4.4 ± 0.8 µm @ 1060 nm
• Cladding Diameter 125 ± 2 µm

• Coating Diameter 245 ± 15 µm

• Core NA 0.2
• Cut-Off Wavelength 1010 ± 70 nm
• Core Index We regret that we cannot provide this proprietary information
• Cladding Index We regret that we cannot provide this proprietary information
