T-YB1200-10-125DC - Ytterbium-Doped LMA Double-Clad Fiber, 10 µm Core Diameter, Unit Pricing Per Meter
- Cladding-Pumped Design
- Single Mode (SM) or Large-Mode-Area (LMA) Operation
- High Pump Absorption with Low Photodarkening

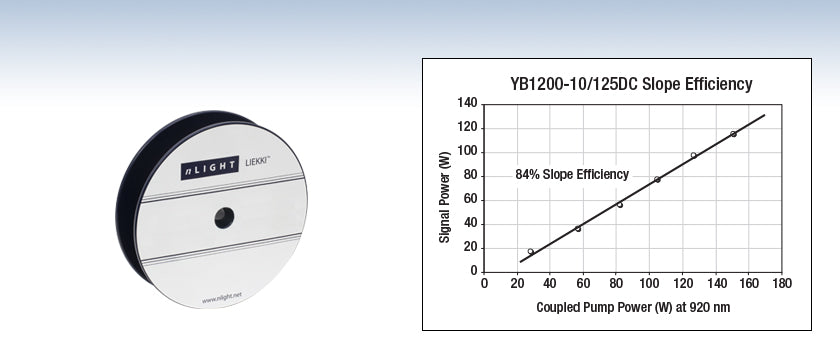

- High Slope Efficiency (75 - 84%)
Applications
- High Average Power Pulsed Amplifiers
- Medium and High-Power Pulsed and CW Lasers
- Materials Processing
- LIDAR
- Rangefinding
- High Cladding Absorption and a Single Mode Core Are Ideal for Fiber-based Power Amplifiers
- Cladding Geometry Octagonal
-
Absorption @ 920 nm 1.7 ± 0.3 dB/m
- Core Diameter 10.0 ± 1.0 µm
- Cladding Diameter 125 ± 2 µm
-
Coating (Second Cladding) Diameter 245 ± 15 µm
-
Core NA 0.080 ± 0.005
| Item # |
Type |
Absorption
@ 920 nm |
Pump
Type |
Core
Diameter |
Cladding
Diameter |
| T-YB1200-4/125 |
SM |
280 ± 50 dB/m |
Core |
4.4 ± 0.8 μm MFD |
125 ± 2 μm |
| T-YB1200-6/125DC |
0.55 ± 0.1 dB/m |
Cladding |
7.0 ± 0.5 μm MFD |
| T-YB1200-10/125DC |
LMA |
1.7 ± 0.3 dB/m |
10.0 ± 1.0 μm |
| T-YB1200-20/400DC |
0.55 ± 0.05 dB/m |
20.0 ± 1.5 μm |
400 ± 10 μm |
| T-YB1200-25/250DC |
2.3 ± 0.3 dB/m |
25.0 ± 1.5 μm |
250 ± 5 μm |
| T-YB2000-10/125DC |
2.0 ± 0.4 dB/m |
10 ± 1.0 μm |
125 ± 2 μm |
