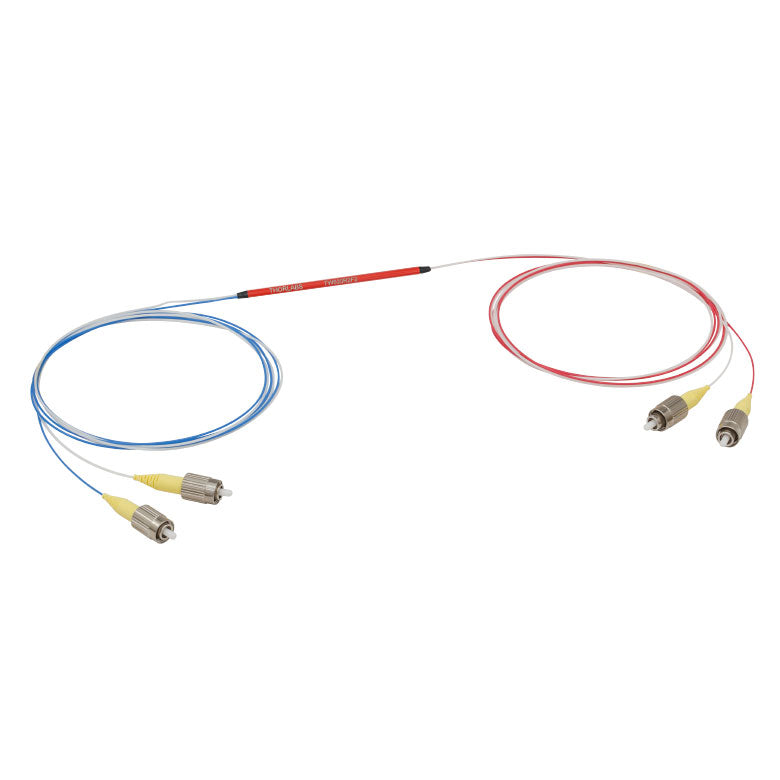

T-TW630R2F2 - 2x2 Wideband Fiber Optic Coupler, 630 ± 50 nm, 90:10 Split, FC/PC Connectors
Product Drawing
| Coupler Specifications |
| Coupling Ratio |
90:10 |
| Coupling Ratio Tolerance |
±3.0% |
| Center Wavelength |
630 nm |
| Minimum Bandwidth |
±50 nm |
Insertion Loss
|
≤1.0 dB / ≤11.9 dB |
Excess Loss
|
<0.3 dB (Typ.) |

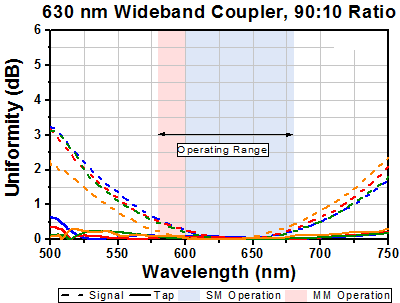

| Uniformity |
≤1.0 dB |
| Polarization-Dependent Loss (PDL) |
≤0.2 dB |
Optical Return Loss (ORL) / Directivity
|
≥60 dB |
| Max Power Level |
300 mW (With Connectors or Bare Fiber) 500 mW (Spliced) |
| Fiber Type |
630HP |
| Fiber Cut-Off Wavelength |
570 ± 30 nm |
| Port Configuration |
2x2 |
| Fiber Lead Length and Tolerance |
0.8 m +0.075 m / -0.0 m |
| Connectors |
2.0 mm Narrow Key FC/PC |
| Package Size |
Ø0.12" x 2.76" (Ø3.2 mm x 70 mm) |
| Jacket |
Ø900 µm Hytrel® Loose Tube |
| Pigtail Tensile Load |
10 N |
| Operating Temperature |
-40 to 85 °C |
| Storage Temperature |
-40 to 85 °C |
