T-SM05RRV - Unanodized Aluminum SM05 Retaining Ring for Ø1/2" Lens Tubes and Mounts
Product Drawing
- SM05-, SM1-, or SM2-Threaded Unanodized Retaining Rings
- Ideal for Use With Our Aluminum Vacuum-Compatible SM-Threaded Components
- Vacuum Compatibility: >10-6 Torr
- Thread SM05 (0.535"-40)
- Thickness 0.07" (1.7 mm)
- Compatible Spanner Wrench T-SPW603 SPW603L or T-SPW801
- Compatible Optic Mounts Any Internally SM05-Threaded Mount
-
Clear Aperture Ø0.44" (Ø11.0 mm)
| Vacuum Specifications |
| Vacuum Compatibility as Packageda |
>10-6 Torr |
| Material |
6061-T6 Aluminum |
| Preparation and Packaging |
Chemically Cleaned and
Double Vacuum-Bagged |
| Aluminum Outgassing Rate at 20 °C |
7.6 x 10-9 Torr-Liters/s/cm2
|
These aluminum SM05-, SM1-, or SM2-threaded retaining rings have identical thread specifications, thickness, and clear aperture when compared to our standard retaining rings of the same size. Their lack of anodization and 6061-T6 alumimun construction allows them to be used at vacuum levels down to 10-6 Torr. They are designed for use with our SM-threaded vacuum-compatible components. Each ring is double vacuum-bagged for clean room use.

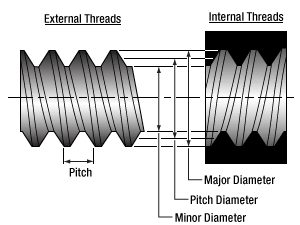

| SM05 (0.535"-40.0) Threading |
| Internal Thread, UNS-2B |
External Thread, UNS-2A |
| Min Major Diameter |
0.5350" |
Max Major Diameter |
0.5340" |
| Min Pitch Diameter |
0.5188" |
Min Major Diameter |
0.5289" |
| Max Pitch Diameter |
0.5230" |
Max Pitch Diameter |
0.5178" |
Min Minor Diameter
(and 83.3% of Thread) |
0.508" |
Min Pitch Diameter |
0.5146" |
Max Minor Diameter
(and 64.9% of Thread) |
0.514" |
Max Minor Diameter |
0.5069" |
