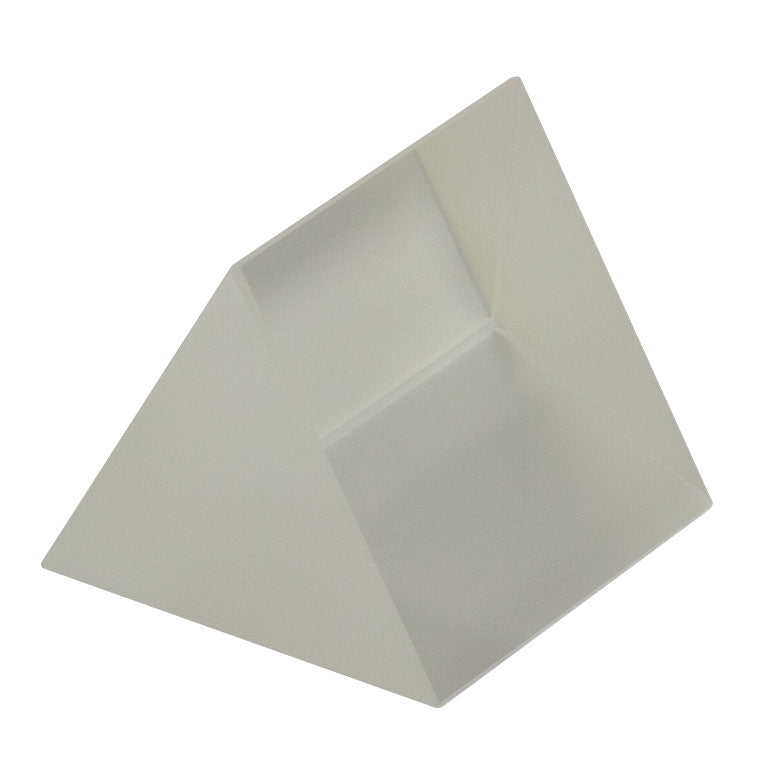

T-PS859 - N-SF11 Equilateral Dispersive Prism, 20 mm

Product Drawing

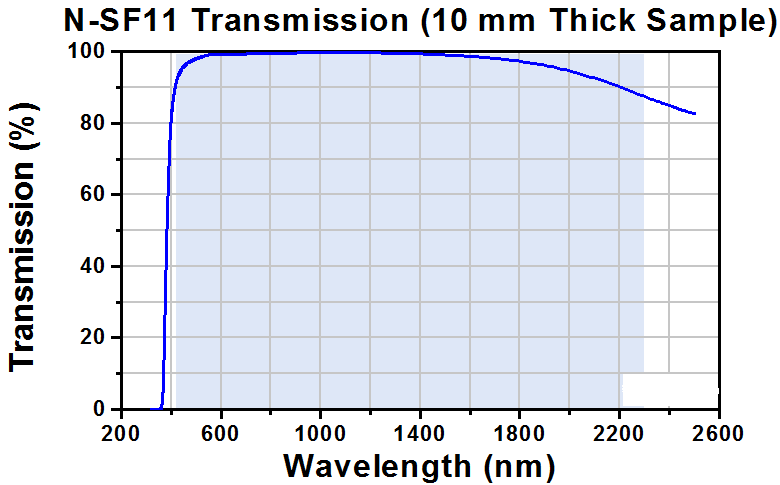

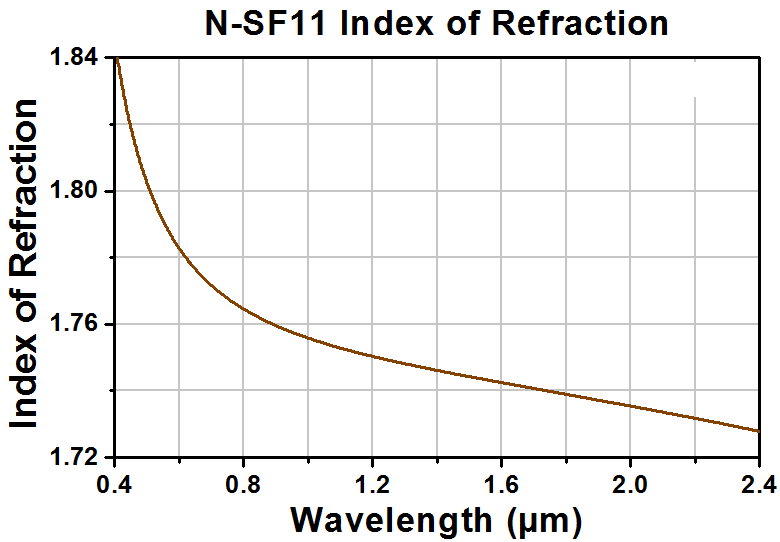

N-SF11 is a flint glass that offers excellent performance in the visible and NIR spectral range. It offers a high refractive index and low Abbe number, making it excellent for use in an equilateral dispersive prism.

Polarization Effects

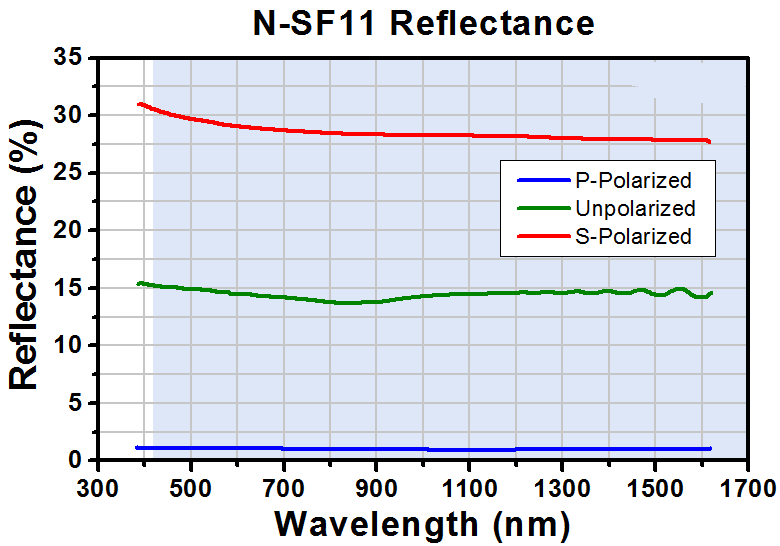

For P-Polarized light (blue line) incident on a dispersing prism at the angle of least deviation, the graph to the right shows that only a small percentage of the P-polarized light is reflected at the surface. Thus, for this polarization, the transmission through a prism fabricated from N-SF11, a RoHS-compliant version of SF11, will be excellent even though there is no AR coating on the surface.
