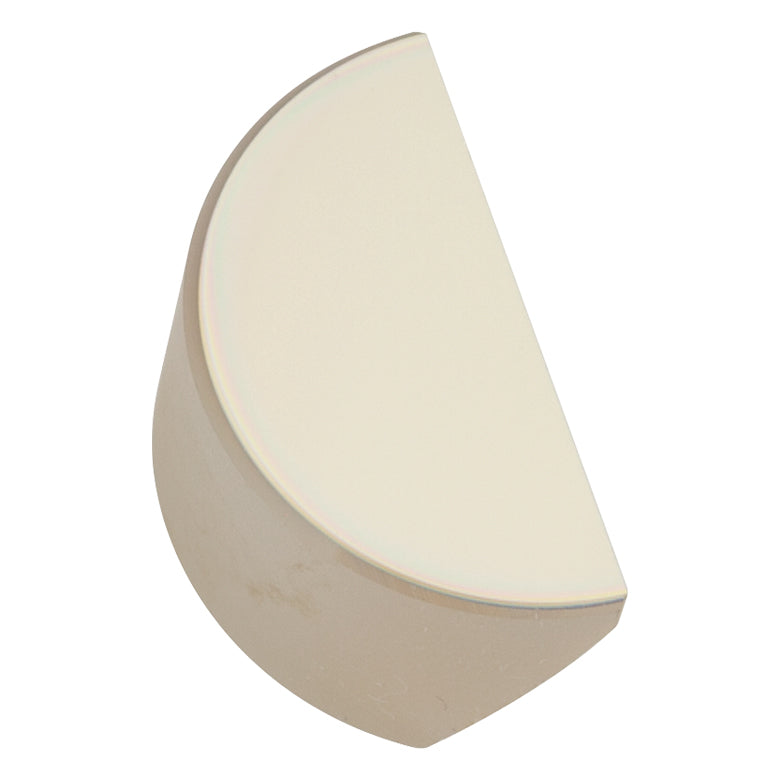

T-PFD05-03-AG - Ø1/2" Ultrafast-Enhanced Silver D-Shaped Mirror
- Choose from Nine Coatings:
- UV-Enhanced Aluminum: 250 - 450 nm
- Protected Silver: 450 nm - 20 µm
- Ultrafast-Enhanced Silver: 750 nm - 1000 nm
- Protected Gold: 800 nm - 20 µm
- MIR-Enhanced Gold: 2 μm - 20 μm
- -E01 Broadband Dielectric Coating: 350 - 400 nm
- -E02 Broadband Dielectric Coating: 400 - 750 nm
- -E03 Broadband Dielectric Coating: 750 - 1100 nm
- -E04 Broadband Dielectric Coating: 1280 - 1600 nm
- Choose from Ø1/2" or Ø1" Versions
- Ideal for Use with Closely Spaced Beams
- Reflective Coating Beveled 0.1 mm at Straight Edge
| Damage Threshold Specifications |
Coating Designation
(Item # Suffix) |
Type |
Damage Threshold |
| -AG |
Pulsed |
0.18 J/cm2 (800 nm, 52 fs FWHM S-Pol, 1000 Pulses)
0.39 J/cm2 (800 nm, 52 fs FWHM S-Pol, Single Pulse) |
Product Drawing
| Coating |
Ultrafast-Enhanced Silver |
| Item # |
T-PFD05-03-AG |
T-PFD10-03-AG |
| Coating Range |
750 - 1000 nm |
| Diameter |
Ø1/2" |
Ø1" |
| Diameter Tolerance |
+0.0/-0.1 mm |
| Thickness |
6.0 mm ± 0.2 mm |
| Substrate |
Fused Silica |
| Front Surface Flatness |
λ/10 @ 633 nm |
| Surface Quality |
40-20 Scratch-Dig |
| Clear Aperture |
>90% of Diameter |
| Reflectance |
Rp > 98.5% and Rs > 99% from 750 nm - 1000 nm |
Group Delay Dispersion
(@ 45° AOI) |
S-Pol: |GDD| < 20 fs2
P-Pol: |GDD| < 30 fs2
|
| Parallelism |
≤5 arcmin |
| Damage Threshold (Pulse) |
0.18 J/cm2 (800 nm, 52 fs FWHM, S-Pol, 1000 Pulses)
0.39 J/cm2 (800 nm, 52 fs FWHM, S-Pol, Single Pulse) |
| Damage Threshold (CW) |
- |
These mirrors are manufactured with a silver coating and dielectric overcoat, a combination which provides >98.5% reflectance for p-polarized light and >99% reflectance for s-polarized light over the 750 - 1000 nm wavelength range at 45° AOI. Our -AG coating largely retains the low group delay dispersion (GDD) intrinsic to metallic coatings with the |GDD| for s-polarized light < 20 fs2 and the |GDD| for p-polarized light < 30 fs2.

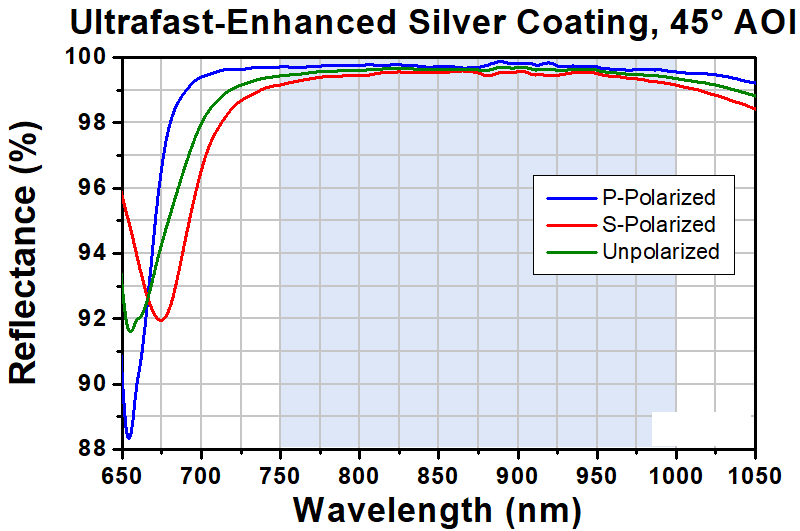

The plot to the right shows the measured reflectance of this coating as a function of wavelength. The shaded region denotes the range over which we recommend using these optics. Data was obtained at a 45° angle of incidence.
