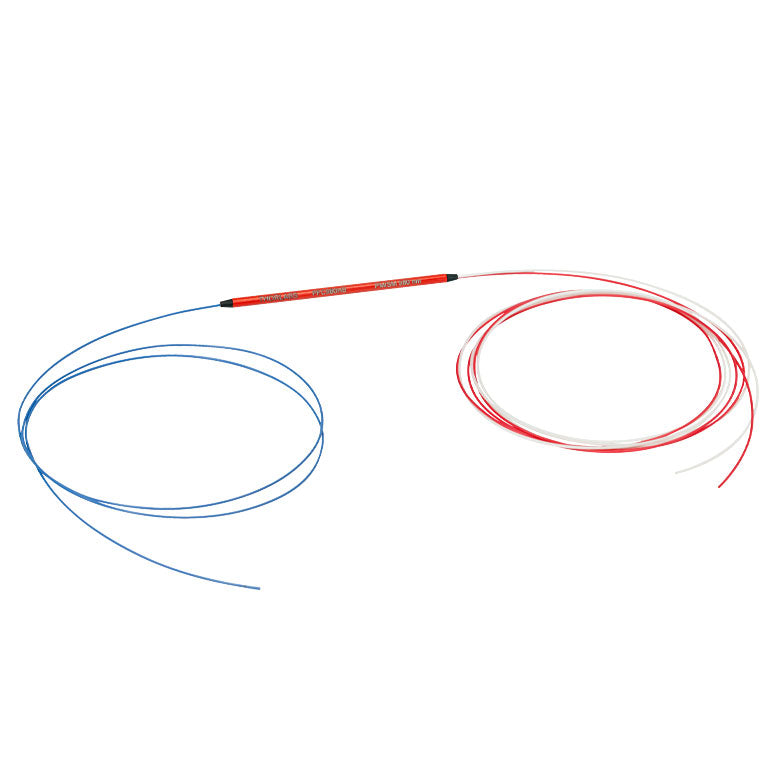

T-PFC980HB - PM to SM Fused Fiber Polarization Combiner, 980 ± 15 nm, No Connectors
- Fused Fiber Polarization Combiners
- Center Wavelength of 980 nm, 1064 nm, or 1550 nm
- Two PM Input Ports and One SM Output Port
- Includes Unterminated Fiber Leads or 2.0 mm Narrow Key FC/PC or FC/APC Connectors
- Individual Test Report Included with Each Combiner
| Item # |
Center
Wavelength |
Bandwidth |
Directivity |
Fiber |
Max Power Level |
Termination |
| White and Red Ports |
Blue Port |
| T-PFC980HB |
980 nm |
±15 nm |
≥60 dB |
PANDA,
Equivalent to
PM 98-U25D |
Single Mode,
HI1060 |
1 W
(Connectors or Bare Fiber)
5 W (Spliced) |
No Connectors,
Scissor Cut |
| Fiber Polarization Combiner Specifications |
| Center Wavelength |
980 nm |
| Bandwidth |
±15 nm |
Insertion Loss
|
≤0.65 dB (Typ.) |
Optical Return Loss (ORL) / Directivitya
|
≥60 dB |
| Max Power Level |
1 W (Bare Fiber)
5 W (Spliced) |
| Fiber Type |
White & Red Ports: PANDA
Blue Common Port: Single Mode |
| Fiberc
|
White & Red Ports: Equivalent to PM 98-U25Dd
Blue Common Port: HI1060 |
| Port Configuration |
2x1 |
| Fiber Lead Length and Tolerance |
0.8 m +0.075 m / -0.0 m |
| Connectors |
No Connectors, Scissor Cut |
| Package Size |
Ø0.12" x 2.95" (Ø3.2 mm x 75.0 mm) |
| Jacket |
Ø900 µm Hytrel® Loose Tube |
| Pigtail Tensile Load |
10 N |
| Operating Temperature Range |
-40 to 85 °C |
| Storage Temperature Range |
-40 to 85 °C |
