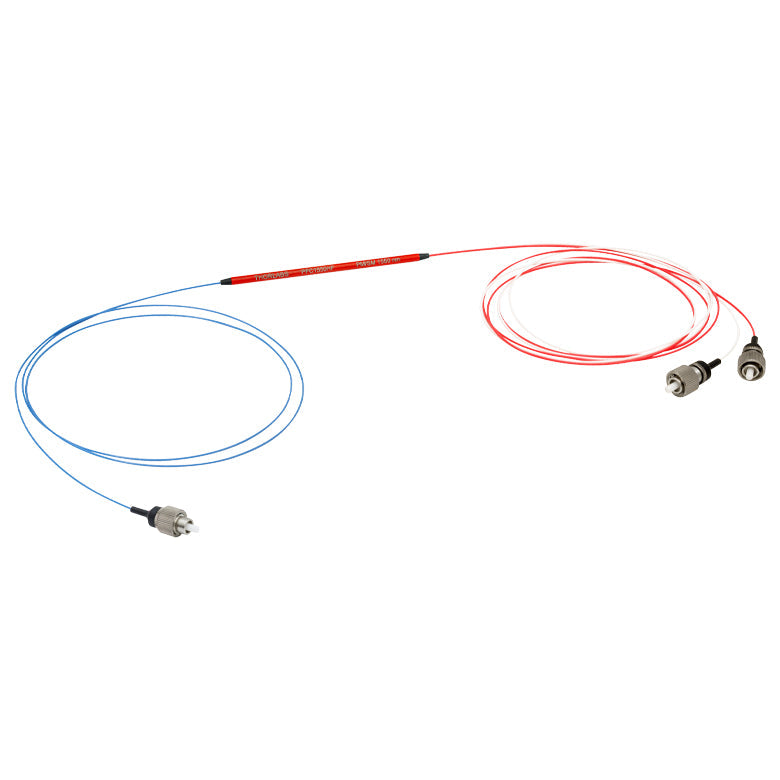

T-PFC1550HF - PM to SM Fused Fiber Polarization Combiner, 1550 ± 15 nm, FC/PC
| Fiber Polarization Combiner Specifications |
| Center Wavelength |
1550 nm |
| Bandwidth |
±15 nm |
Insertion Loss
|
≤0.65 dB (Typ.) |
Optical Return Loss (ORL) / Directivitya
|
≥60 dB |
| Max Power Level |
1 W (Connectors or Bare Fiber) 5 W (Spliced) |
| Fiber Type |
White & Red Ports: PANDA Blue Common Port: Single Mode |
| Fiberc
|
White & Red Ports: Equivalent to PM 15-U25D Blue Common Port: SMF-28e
|
| Port Configuration |
2x1 |
| Connector Key Alignment |
White Port: Slow Axis Aligned Red Port: Fast Axis Aligned
|
| Fiber Lead Length and Tolerance |
0.8 m +0.075 m / -0.0 m |
| Connectors |
2.0 mm Narrow Key FC/PC |
| Package Size |
Ø0.12" x 2.95" (Ø3.2 mm x 75.0 mm) |
| Jacket |
Ø900 µm Hytrel® Loose Tube |
| Pigtail Tensile Load |
10 N |
| Operating Temperature Range |
-40 to 85 °C |
| Storage Temperature Range |
-40 to 85 °C |
