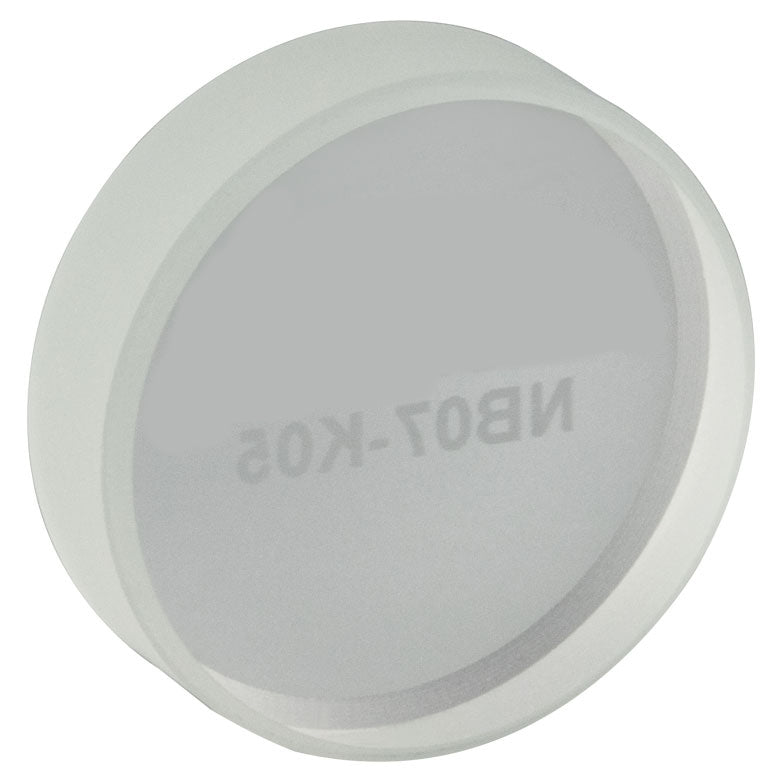

T-NB07-K05 - Ø19 mm Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI
Product Drawing
- Designed for Use from 0° to 45° AOI

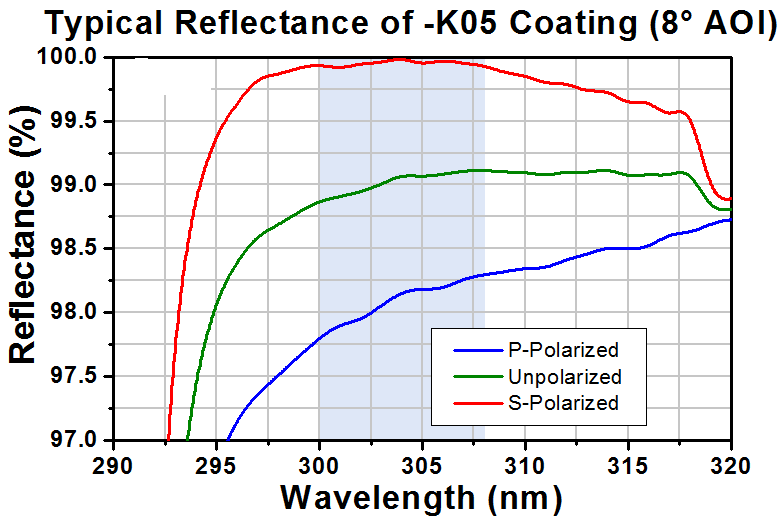

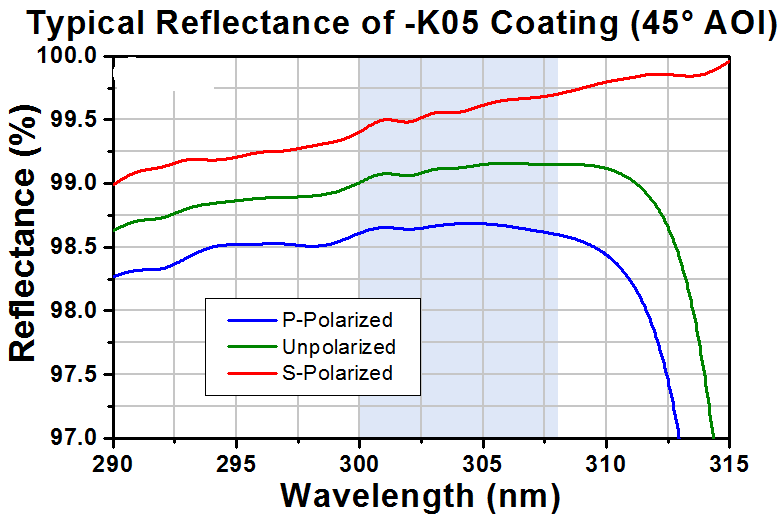

- S Polarization: Ravg > 99.5% (300 - 308 nm)
- P Polarization: Ravg > 98.0% (300 - 308 nm)
- Available Wavelength Ranges
- 300 - 308 nm
- 333 - 364 nm
- 458 - 528 nm
- Designed for Use from 0° to 45° AOI
- Ø19 mm and Ø1" Options
Ar-Ion laser line mirrors have a specialized coating that provides a high reflectance over wavelength ranges coincident with the emission of an Ar-Ion laser. The coating has a high damage threshold suitable for use with the output beam from large-frame high-powered CW (continuous wave) Ar-Ion lasers.
| Common Specifications |
| Substrate Material |
Fused Silica |
| Front Surface Flatness |
λ/10 @ 633 nm |
| Clear Aperture |
>80% of Diameter |
| Back Surface |
Fine Ground |
| Parallelism |
<3 arcmin |
| Diameter Tolerance |
+0.0/-0.1 mm |
| Thickness |
6.0 ± 0.2 mm |
| Surface Quality |
10-5 Scratch-Dig |
