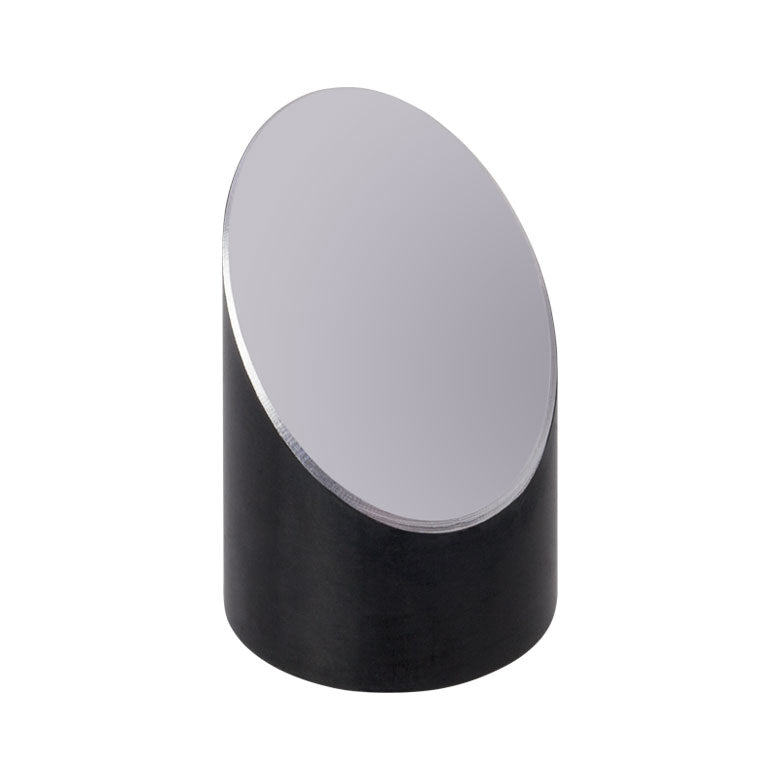

T-MPD00M9-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 15 mm
- >90% Average Reflectance from 250 - 450 nm
- Collimates a Divergent Source or Focuses a Collimated Beam without Spherical or Chromatic Aberrations
- Effective Focal Lengths from 15 mm (0.59") to 8" (203.2 mm)
- Surface Roughness: <100 Å (RMS)
- Clear Aperture: >90% of Diameter
- Three Kinds of Mounting Adapters for Ø1/2", Ø1", and Ø2" Versions:
- Externally SM-Threaded
- Unthreaded for Use in Mirror Mounts
- With 8-32 (M4) Taps for Post Mounting

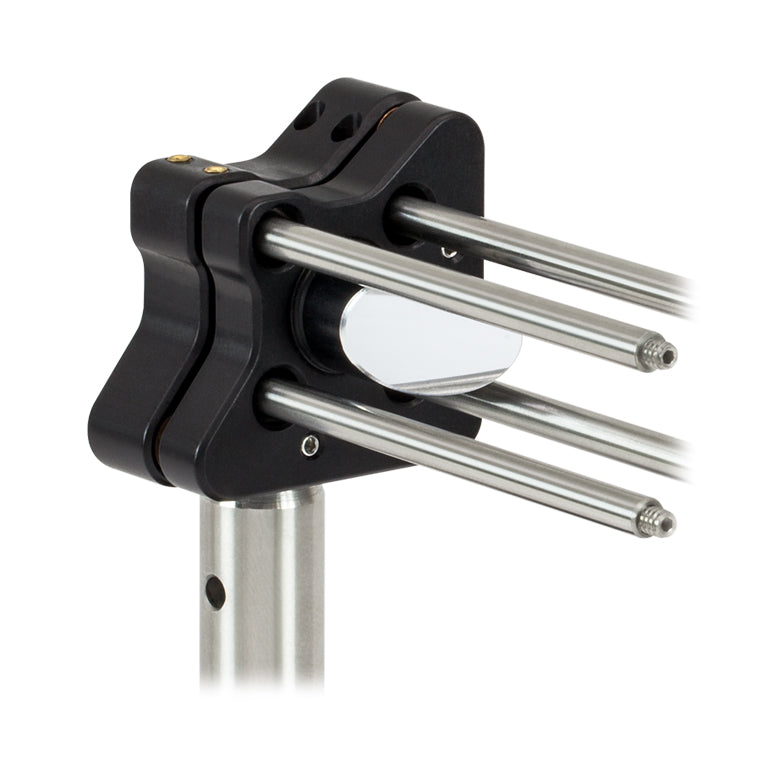

- Right-Angle Kinematic Mount for 30 mm Cage Systems and Ø1" OAP Mirrors
| Item # |
Diameter |
Thickness |

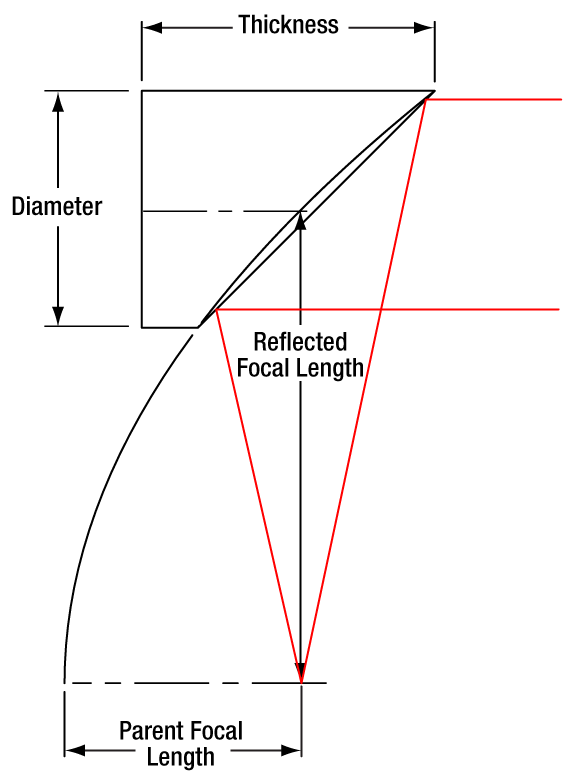

Reflected Focal Length |
Parent Focal Length |
Reflected Wavefront Error |
Bottom Mounting Holes |
| T-MPD00M9-F01 |
0.5" (12.7 mm) |
20.0 mm (0.79") |
15.0 mm (0.59") |
7.5 mm (0.30") |
<λ/4 RMS at 633 nm |
4-40 Taps in Radial Pattern
(3 Places) |
| Common Specifications |
| Reflectance (Average) |
>90% from 250 to 450 nm |
| Off-Axis Angle |
90° |
| Clear Aperture |
>90% of Diametera
|
| Surface Roughness (RMS) |
<100 Å |
| Surface Quality |
40-20 Scratch-Dig |
| Parent Focal Length Tolerance |
±1% |
| Reflected Focal Length Tolerance |
±1% |
| Substrate |
Aluminum |

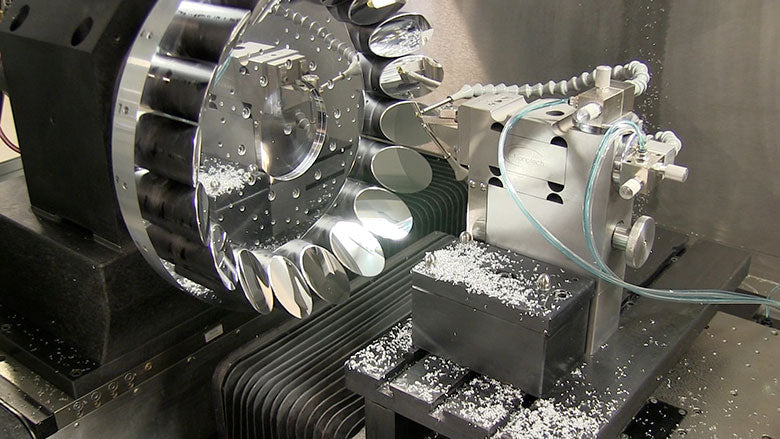

| Manufacturing Process |
Diamond Turned |
| Damage Threshold Specifications |
| Coating Designation (Item # Suffix) |
Damage Threshold |
|
-F01 (Pulsed) |
0.3 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.414 mm)
0.2 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1 mm) |
