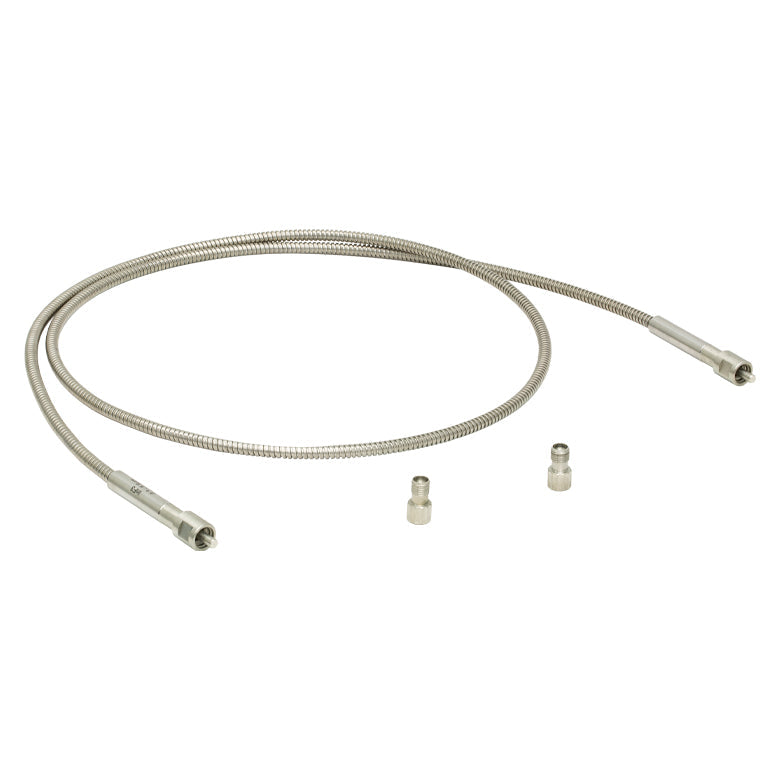

T-MFV1L1 - Ø100 µm, 0.26 NA InF3 Multimode Patch Cable, SMA905, 1 m Long, Vacuum Compatible
Product Drawing
- Incorporates Fluoroindate (InF3) Fiber Manufactured at Thorlabs' Fiber Draw Facility
- Core Size: Ø100 µm
- Transmission Range: 310 nm - 5.5 μm
- Construction Enables use at Vacuum Pressures Down to 1 x 10-8 Torr
- Compatible with Visible-Wavelength Alignment Beams
- Cleaned and Shipped in Double-Vacuum-Sealed Packaging
Applications
- Spectroscopy
- Fiber Lasers
- Supercontinuum Light Sources
- Environmental Monitoring
- Surgical Lasers
- Chemical Sensing
- IR Imaging
| T-MFV1L1 Specifications |
| Connectors |
SMA905 |
| Jacket |
Ø5.2 mm Stainless Steel |
| Fiber Type |
Fluoroindate (InF3) |
| Transmission Range |
310 nm - 5.5 µm |

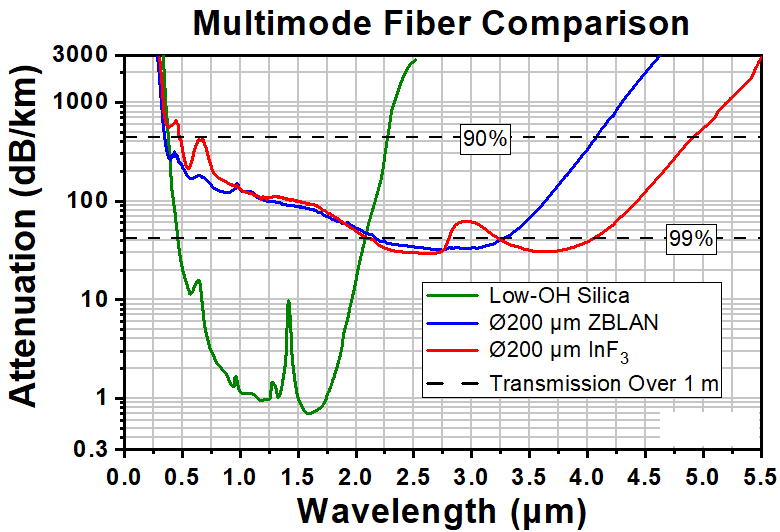

| Typical Attenuation |
0.1 dB/m @ 2.5 µm and 3.6 µm |
| Maximum Attenuation |
≤0.25 dB/m (from 2.0 to 4.6 µm) |

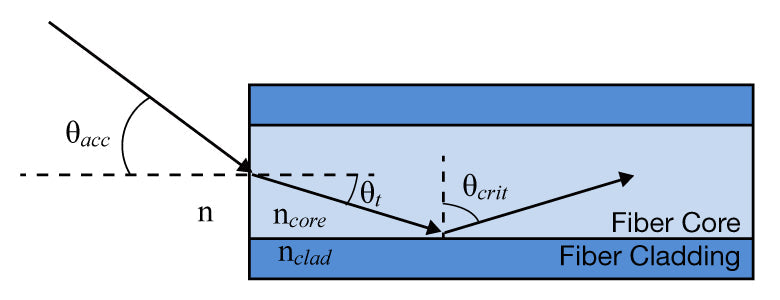

| NAc |
0.26 ± 0.02 @ 2 µm |
| Typical Core Index |
1.487 @ 3.6 µm |
| Core Diameter |
100 ± 2.0 µm |
| Cladding Diameter |
192 ± 2.5 µm |
| Coating Diameter |
287 ± 15 µm |
| Core/Cladding Concentricity |
≤2 µm |
| Core Circularity |
≥98% |
| Long-Term Bend Radius |
≥5 cm |
| Short-Term Bend Radius |
≥5 cm |
| Temperature Rating |
90 °C (Max Bake Temperature)
-55 to 75 °C (Operating Temperature) |
| Max Temperature Ramp |
10 °C / minute |
