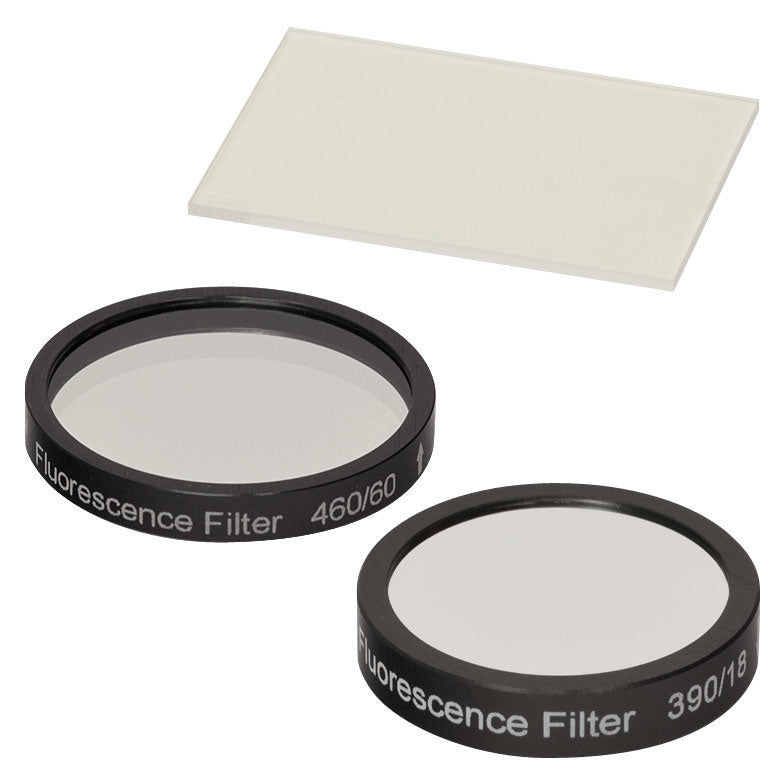

T-MDF-BFP - BFP Excitation, Emission, and Dichroic Filters (Set of 3)
Product Drawing
Kit including: T-MF390-18, T-MF460-60, T-,D416
Fluorophore BFP
Filter Type T-MF390-18 Excitation, T-MF460-60 Emission, T-MD416 Dichroic

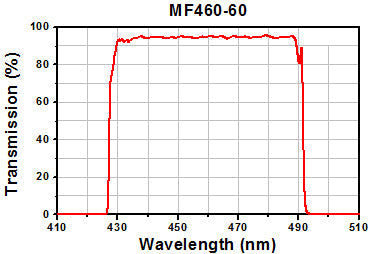

Center Wavelength T-MF390-18 390 nm, T-MF460-60 460 nm
FWHM T-MF390-18 18 nm, T-MF460-60 60 nm

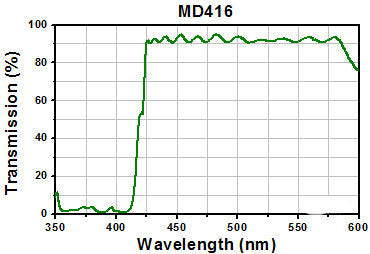

Reflection Band T-MD416 Ravg > 90% 360 - 407 nm
Transmission Band T-MD416 Tabs > 90% 425 - 575 nm
AR Coating T-MD416 Rabs < 2% from 400 to 800 nm
| Excitation Filters |
Emission Filters |
Dichroic Filters |
MDF-GFP2,
MDF-TOM, MDF-MCHC,
& MDF-MCHA Kits |
All Other
Excitation Filters |
MDF-GFP2,
MDF-TOM, MDF-MCHC,
& MDF-MCHA Kits |
All Other
Excitation Filters |
Dichroics in
MDF-GFP2, MDF-MCHA, MDF-MCHC,
& MDF-TOM Kits |
All Other Dichroics |
| Size |
Ø25 +0.0/-0.1 mm |
Ø25 ± 0.1 mm |
Ø25 +0.0/-0.1 mm |
Ø25 ± 0.1 mm |
25.2 mm x 35.6 mm |
25.0 mm x 36.0 mm |
| Clear Aperture |
>Ø21 mm |
>Ø22 mm |
>Ø21 mm |
80% of Area |
>(22.5 mm x 32.4 mm) |
| Angle of Incidence |
0° ± 5° |
45° ± 1.5° |
| Thickness |
5.0 ± 0.1 mm |
3.5 ± 0.1 mm |
1.05 ± 0.05 mm |
1.0 ± 0.1 mm |
| Surface Quality |
60-40 Scratch-Dig |
| Substrate |
Fused Silica |
| Item # |

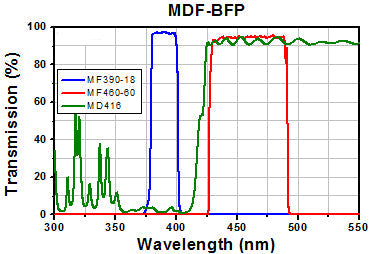

Transmission
Data |
Design Fluorophore |
Excitation
Band |
Emission
Band |
Dichroic |
| T-MDF-BFP |
Click to check |
Blue Fluorescent Protein (BFP) |
390 ± 9 nm |
460 ± 30 nm |
360 - 407 nm / 425 - 475 nm |
