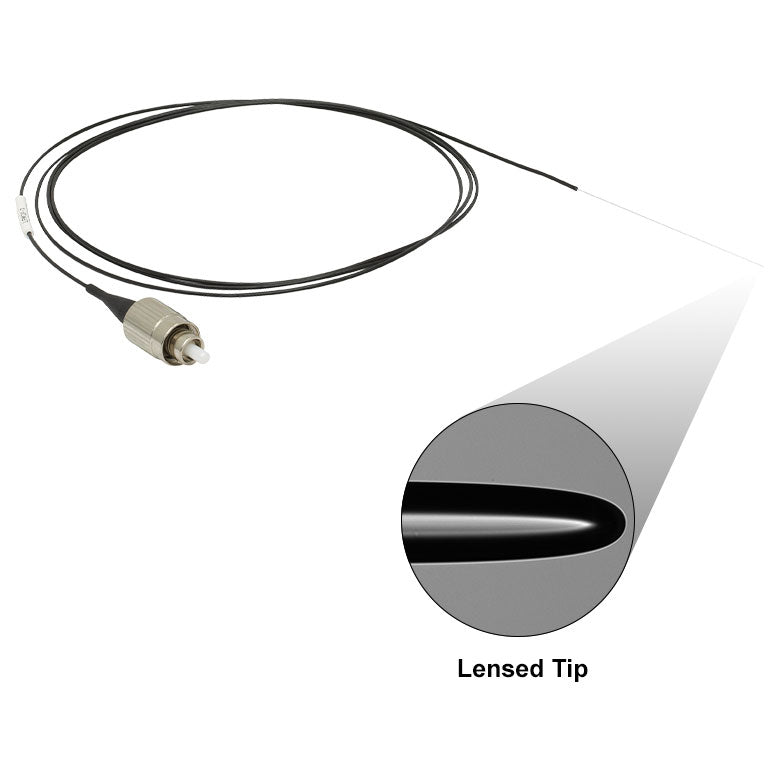

T-LFM1S-1 - Ø50 µm, 0.20 NA, SMA905 to Lensed Tip Fiber Patch Cable, 1 m
Product Drawing
- GIF50E Fiber Patch Cables with Lensed Tip
- 2.0 mm Narrow Key FC/PC or SMA905 Connector
- 1 m Length
- 11 ± 1 mm of Fiber, Stripped to Cladding, on End with Lensed Tip
- Ø900 µm Black Hytrel®* Tubing
These multimode lensed-tip fiber patch cables are offered with either an FC/PC or SMA905 connector on the non-lensed end and Ø900 µm black Hytrel® tubing. On the end with the lensed tip, 5 ± 1 cm of the cable is left free of the tubing to expose the inner GIF50E fiber. The last 11 ± 1 mm of fiber before the lens is stripped to the cladding.
*Hytrel® is a registered trademark of DuPont Polymers, Inc.
| Fiber Specifications |
| Fiber |
| Fiber Type |
GIF50E |
| Wavelength Range |
800 - 1600 nm |
| Numerical Aperture |
0.200 ± 0.015 |
| Core Diameter |
50.0 ± 2.5 µm |
| Cladding Diameter |
125 ± 1 µm |
| Coating Diameter |
242 ± 5 µm |
| Core-Cladding Concentricity |
≤1.5 µm |
| Coating-Cladding Concentricity |
≤12 µm |
| Attenuation |
≤2.3 dB/km @ 850 nm
≤0.6 dB/km @1300 nm |
| Physical Specifications |
| Item # |
T-LFM100 |
T-LFM1F-1 |
T-LFM1S-1 |
| Fiber Termination |
Scissor Cut |
FC/PC,
2.0 mm Narrow Key |
SMA905 |
| Fiber Length |
1 m +0.10 m/-0.0 m |
| Stripped Fiber Length |
11 mm ± 1 mm |
| Tubing |
N/A |
Ø900 µm Black Hytrel®
|
| Length without Tubing |
N/A |
5 ± 1 cm |
| Operating Temperature |
-60 to 85 °C |
| Lensed Tip Specifications |
| Focused Spot Size |
Ø25 µm (Typ.) |
| Working Distance |
30 µm (Typ.) |
| Taper Length |
410 µm |
| Radius of Curvature |
31 ± 1 µm |
| Insertion Loss |
0.2 dB (Typ.) |
