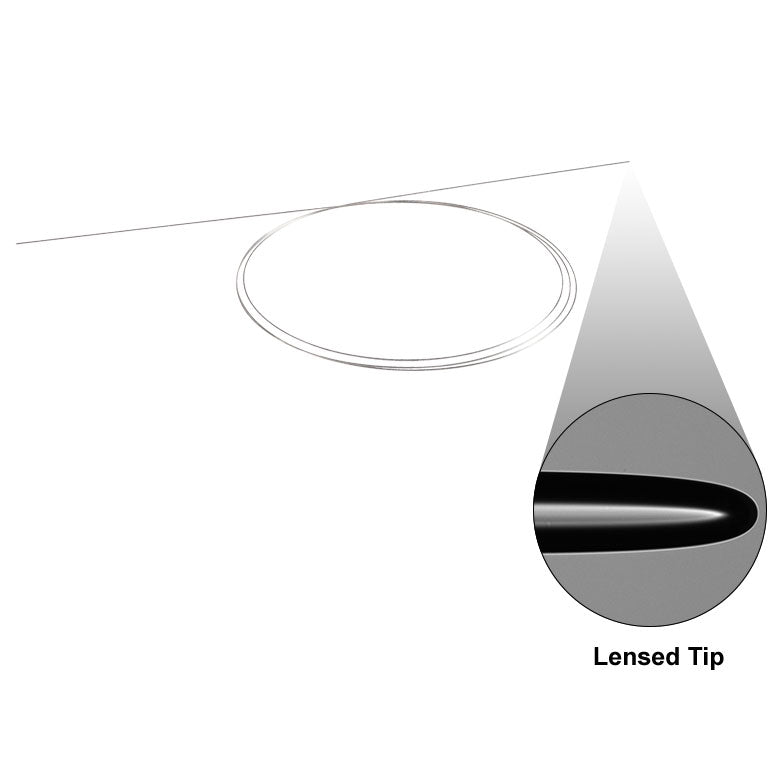

T-LFM100 - Multimode Lensed GIF50E Fiber, Scissor Cut, 1 m
Product Drawing

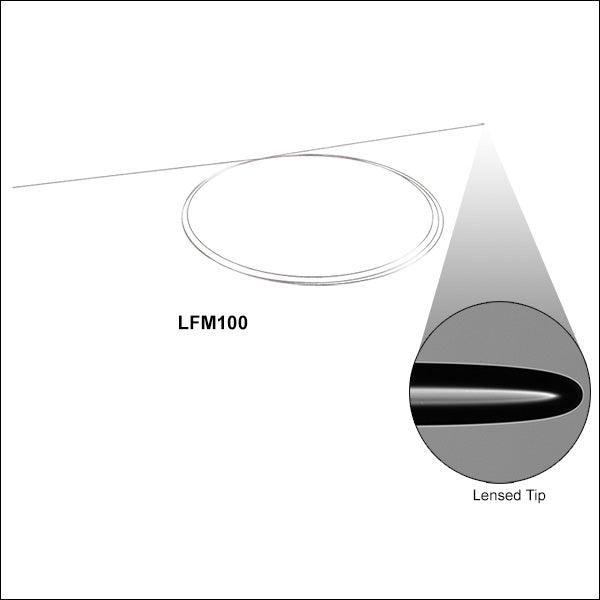

- 1 m of GIF50E Fiber with Lensed Tip
- 11 ± 1 mm of Fiber, Stripped to Cladding, on End with Lensed Tip
- Other End is Scissor Cut
LFM100 Multimode Lensed-Tip Fiber is available from stock in 1 m lengths.
The non-lensed, scissor-cut end can be spliced into a setup if desired, or terminated with a connector using fiber termination kits.
- GIF50E Graded-Index Multimode Fiber with Lensed Tip

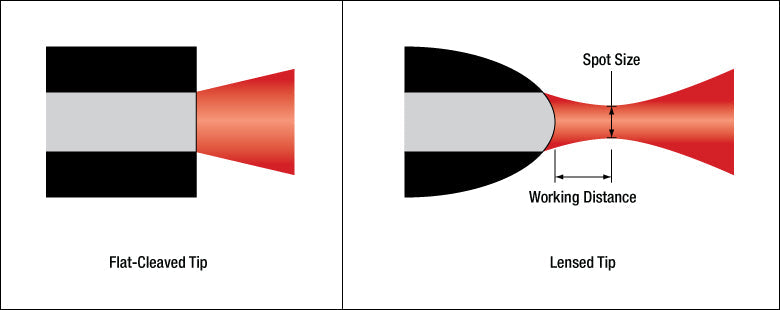

- Focus Light to Ø25 µm Spot at 30 µm Working Distance
- Available as Bare Fiber or Patch Cable
- Patch Cables are FC/PC (2.0 mm Narrow Key) or SMA905 Terminated on One End
- Useful for Waveguide and Photodiode Coupling Applications
- Manufactured Using Vytran® Fiber Processing Technology
| Lensed Tip Specifications |
| Focused Spot Size |
Ø25 µm (Typ.) |
| Working Distance |
30 µm (Typ.) |
| Taper Length |
410 µm |
| Radius of Curvature |
31 ± 1 µm |
| Insertion Loss |
0.2 dB (Typ.) |
| Physical Specifications |
| Item # |
LFM100 |
LFM1F-1 |
LFM1S-1 |
| Fiber Termination |
Scissor Cut |
FC/PC,
2.0 mm Narrow Key |
SMA905 |
| Fiber Length |
1 m +0.10 m/-0.0 m |
| Stripped Fiber Length |
11 mm ± 1 mm |
| Tubing |
N/A |
Ø900 µm Black Hytrel®b
|
| Length without Tubing |
N/A |
5 ± 1 cm |
| Operating Temperature |
-60 to 85 °C |
| Fiber Specifications |
| Fiber |
| Fiber Type |
GIF50E |
| Wavelength Range |
800 - 1600 nm |
| Numerical Aperture |
0.200 ± 0.015 |
| Core Diameter |
50.0 ± 2.5 µm |
| Cladding Diameter |
125 ± 1 µm |
| Coating Diameter |
242 ± 5 µm |
| Core-Cladding Concentricity |
≤1.5 µm |
| Coating-Cladding Concentricity |
≤12 µm |
| Attenuation |
≤2.3 dB/km @ 850 nm
≤0.6 dB/km @1300 nm |
| Key Specifications |
| Fiber Type |
GIF50E |
| Wavelength Range |
800 - 1600 nm |
| Focused Spot Size |
Ø25 µm (Typ.) |
| Working Distance |
30 µm (Typ.) |
| GIF50E Fiber Specifications |
| Numerical Aperture |
0.200 ± 0.015 |
| Core Diameter |
50.0 ± 2.5 µm |
| Cladding Diameter |
125 ± 1 µm |
| Coating Diameter |
242 ± 5 µm |
