T-KIM001 - Single-Channel K-Cube Piezo Inertia Motor Controller (Power Supply Sold Separately)
Product Drawing
- Compact Footprints
- Adjustable Voltage Output from 85 V to 125 V
- Single-Channel and Four-Channel Versions Available
- Standalone Operation via Top Panel Controls and Display or PC Control via USB Plug and Play

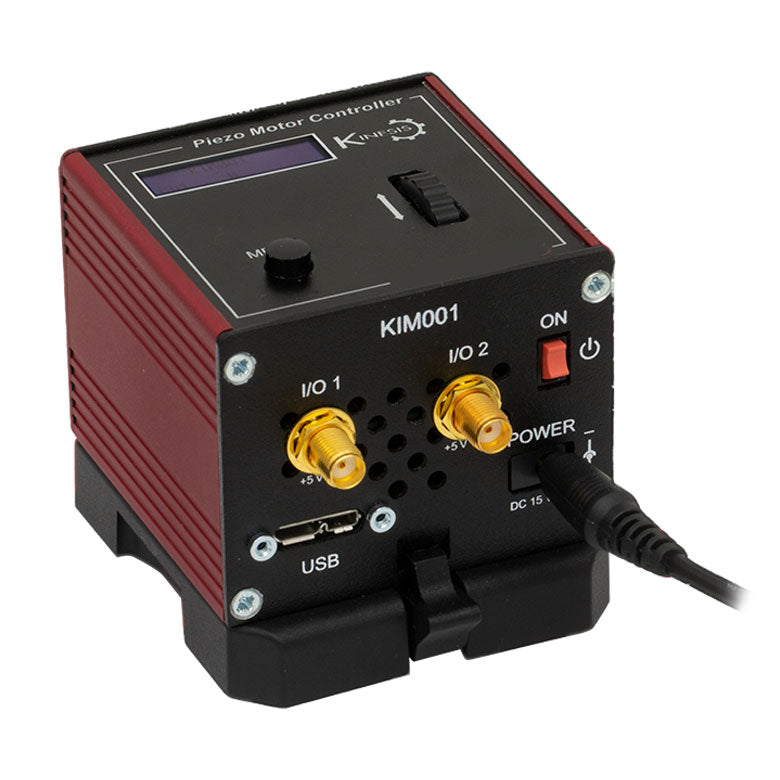

T-KIM001 Single-Channel Controller
This single-channel piezo inertia controller provides a voltage output for a single piezo inertia stage or actuator. The top panel features a spring-loaded scroll wheel for driving the stage or actuator as well as selecting menu options.
Power Supply Options
The T-KIM001 and T-KIM101 Motor Controllers do not ship with a power supply
| Key Specifications |
| Item # |
T-KIM001 |
T-KIM101 |
| Piezoelectric Outputs (SMC Male) |
One |
Four |
| Piezo Output Voltage |
85 to 125 VDC |
85 to 125 VDC per Channel |
| Top Panel Controls |
Scroll Wheel |
Dual-Axis Joystick |
External Input
(SMA Female) |
±10 V ± 2% |
| Input Power |
+15 VDC @ 2 A |
Housing Dimensions
(W x D x H) |
60.0 mm x 60.0 mm x 47.0 mm
(2.36" x 2.36" x 1.85") |
121.0 mm x 60.0 mm x 47.0 mm
(4.76" x 2.36" x 1.85") |
| Compatible Software |
Kinesis |
Kinesis & Legacy APT |
