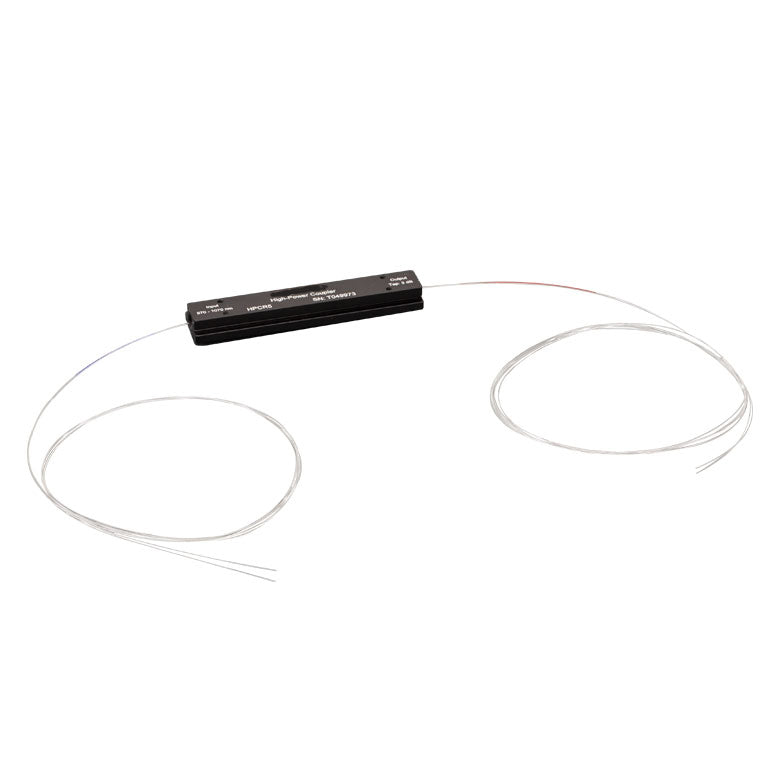

T-HPCR5 - 2x2 Wideband Fiber Optic Coupler, 3 dB Tap, 970 - 1070 nm, High-Power Package
Product Drawing
- 970 - 1070 nm Operating Wavelength Range
- 50 W Power Handling for Monitoring High-Power Amplifiers and Lasers
- Ideal for Nd:YAG and Ytterbium-Doped Lasers
- 2x2 Coupler with 3 dB Tap
- 0.8 m Long Fiber Leads with a Tolerance of +0.075 m / -0.0 m
- Bare Fiber with Scissor-Cut Termination for Cleaving and Splicing
- Wavelength Range 970 - 1070 nm

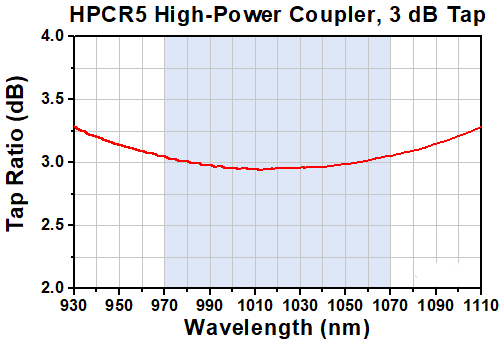

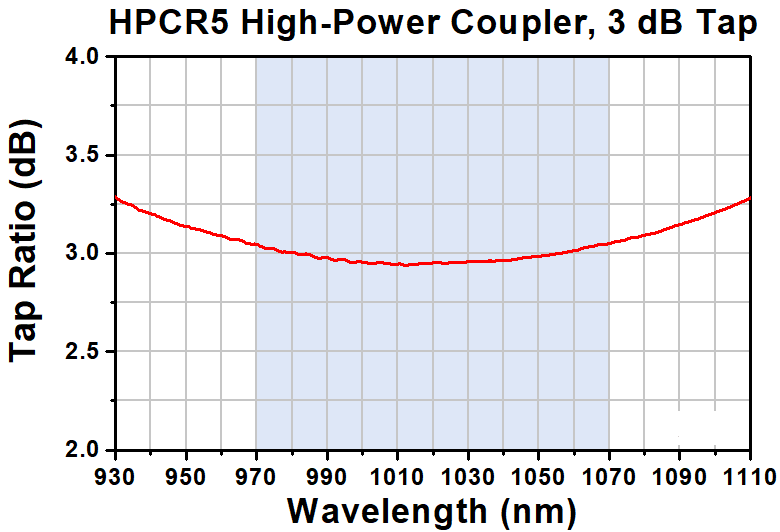

- Tap Ratio (Click for Plot) 3 dB
-
Coupling Ratio Tolerance +0.5 / -0.5 dB
- Maximum Power Level 50 W
- Polarization Dependent Loss (PDL) ≤0.2 dB
- Optical Return Loss (Directivity) ≥35 dB
- Excess Loss <0.2 dB (Typ.)
- Fiber Type HI1060 (0.14 NA)
| Coupler Specifications |
| Tap Ratio |
3 dB |
| Coupling Ratio Tolerance |
+0.5 / -0.5 dB |
| Wavelength Range |
970 - 1070 nm |
| Excess Loss |
<0.2 dB (Typ.) |
| Polarization-Dependent Loss (PDL) |
≤0.2 dB |
| Optical Return Loss (ORL) / Directivity |
≥35 dB |
| Max Power Level |
50 W |
| Fiber Type |
HI1060 |
| Fiber NA |
0.14 |
| Port Configuration |
2x2 |
| Fiber Lead Length and Tolerance |
0.8 m +0.075 m / -0.0 m |
| Connectors |
No Connectors, Scissor Cut |
| Package Size |
2.76" x 0.59" x 0.28" (70.0 mm x 15.0 mm x 7.0 mm) |
| Pigtail Tensile Load |
10 N |
| Operating Temperature Range |
0 to 75 °C |
| Storage Temperature Range |
-40 to 85 °C |
