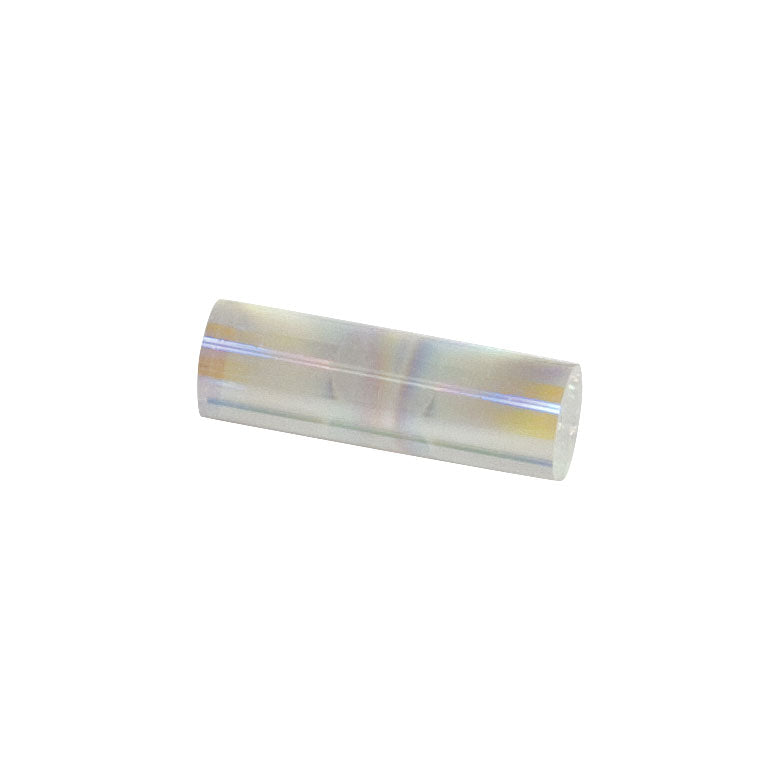

T-GRIN2915 - GRIN Lens, Ø1.8 mm, 0.29 Pitch, 0°, 1560 nm Design Wavelength, AR Coated: 1250 - 1650 nm
- Provides Collimation and Focusing of Fiber-Coupled Light
- Designed for Easy Integration with Pigtailed Ferrules
- 630, 1300, and 1560 nm Versions are AR Coated
- 8° or 0° Face Angle
- Ideal for Telecom Applications
- Design Wavelength 1560 nm
- AR Coating 1250 - 1650 nm
- Pitch 0.29
- Face Angle 0°
- Effective Focal Length 1.99 mm
- Working Distance 1.485 mm
Product Drawing
| Common Specifications |
| Transmittance |
>89%, 380 - 2000 nm |
| Polarization Preservation |
0.99 |
| Material |
Oxide Glass |
| Operating Temperature |
<350 °C |
| Item # |
Design Wavelength |
AR Coating |
Pitch |
Face Angle |
Effective Focal Length |
Working Distance |
| T-GRIN2306A |
630 nm |
630 nm |
0.23 |
8° |
1.85 mm |
0.234 mm |
| T-GRIN2308A |
830 nm |
N/A |
1.90 mm |
0.239 mm |
| T-GRIN2310A |
1060 nm |
N/A |
1.92 mm |
0.238 mm |
| T-GRIN2313A |
1300 nm |
1250 - 1650 nm |
1.94 mm |
0.242 mm |
| T-GRIN2315A |
1560 nm |
1250 - 1650 nm |
1.94 mm |
0.245 mm |
| T-GRIN2906 |
630 nm |
N/A |
0.29 |
0° |
1.90 mm |
1.411 mm |
| T-GRIN2908 |
830 nm |
N/A |
1.95 mm |
1.449 mm |
| T-GRIN2910 |
1060 nm |
N/A |
1.97 mm |
1.471 mm |
| T-GRIN2913 |
1300 nm |
1250 - 1650 nm |
1.98 mm |
1.480 mm |
| T-GRIN2915 |
1560 nm |
1250 - 1650 nm |
1.99 mm |
1.485 mm |
