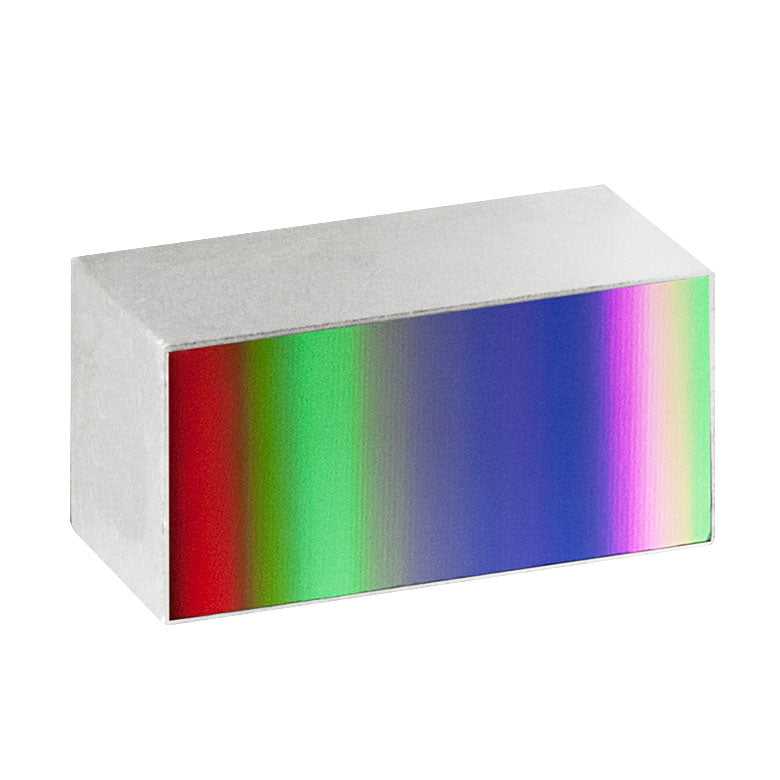

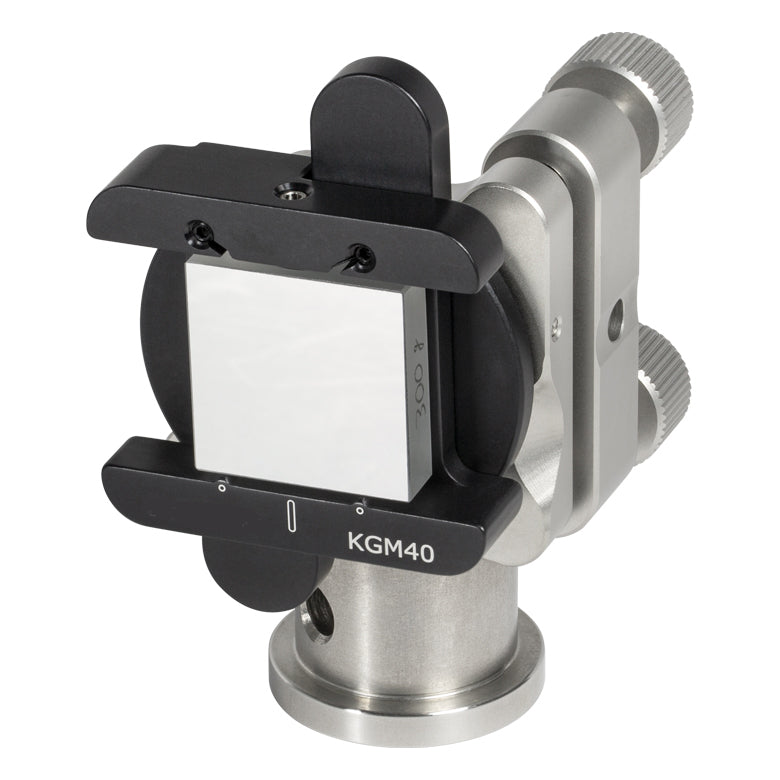

T-GR1325-10106 - Ruled Reflective Diffraction Grating, 100/mm, 10.6 µm Design Wavelength, 12.5 x 25.0 x 9.5 mm
Product Drawing
- Design Wavelengths of 3.1 µm, 3.5 µm, or 10.6 µm
- Polarized Efficiency of 80 to 95% at Design Wavelength
- Low Ghosting: <0.5% of Primary Reflection
- Aluminum Reflective Coating
- Pyrex Substrate with 75 to 450 Grooves/mm
- Produced from Ruled Original
- Damage Thresholds:
- CW Laser: 250 W/cm2
- Pulsed Laser: 3.5 J/cm2 (200 ns Pulse)
- Dimensions (W x H x D) 12.5 mm x 25.0 mm x 9.5 mm
- Design Wavelength 10.6 µm
- Grooves/mm 100
- Blaze Angle 27°
- Dispersion 8.5 nm/mrad
| Item # Suffix |
-10106 |
| Design Wavelength |
10.6 µm |
| Blaze Angle |
27° |

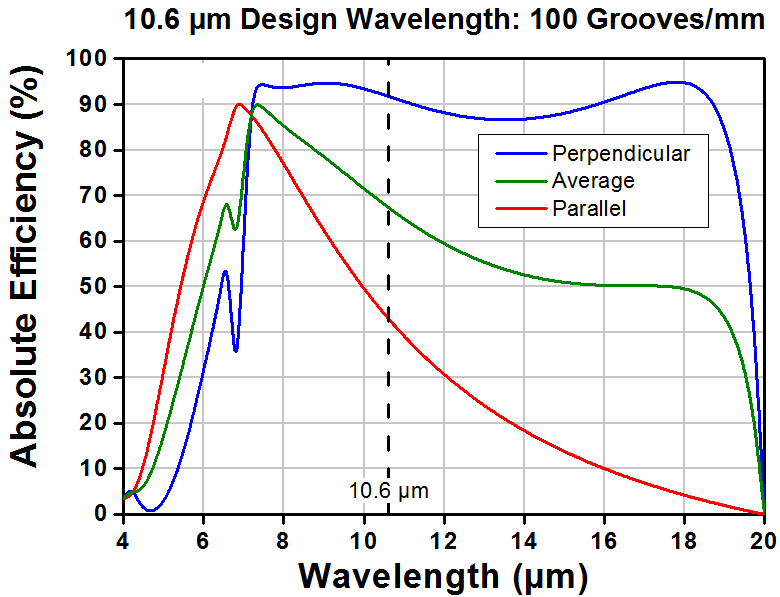

| Min Polarized Absolute Efficiency |
88% |
| Optimum Efficiency Wavelength Range |
9.0 - 11.0 µm |
| Grooves/mm |
100 |
| Dispersion |
8.5 nm/mrad |
| Surface Quality |
60-40 Scratch-Dig |
| Clear Aperature |
90% of Length and Width |
| Damage Threshold |
Pulsed |
3.5 J/cm² (200 ns Pulse) |
| CW |
250 W/cm² at 1064 µm (Typical) |
| Dimensions (W x H x D) |
Item # Prefix GR1325: 12.5 mm x 25.0 mm x 9.5 mm (0.49" x 0.98" x 0.37")
Item # Prefix GR1550: 25.0 mm x 50.0 mm x 9.5 mm (0.98" x 1.97" x 0.37") |
| Dimensional Tolerances |
±0.5 mm |
