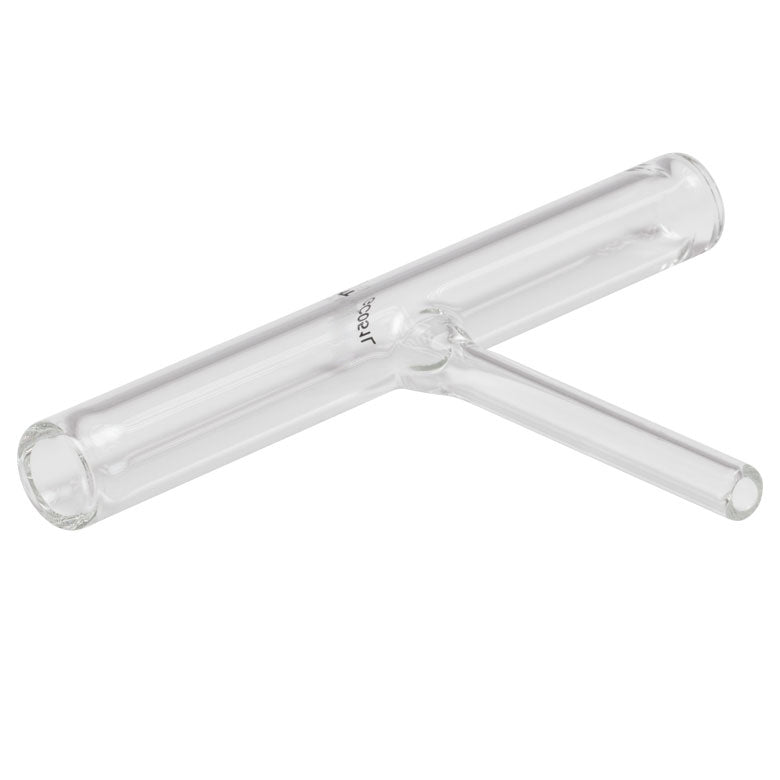

T-GC051L - Empty Glass Cell with Ø12.7 mm Fused Windows, 100 mm Long, One Fill Tube

T-GC051L - Empty Glass Cell with Ø12.7 mm Fused Windows, 100 mm Long, One Fill Tube

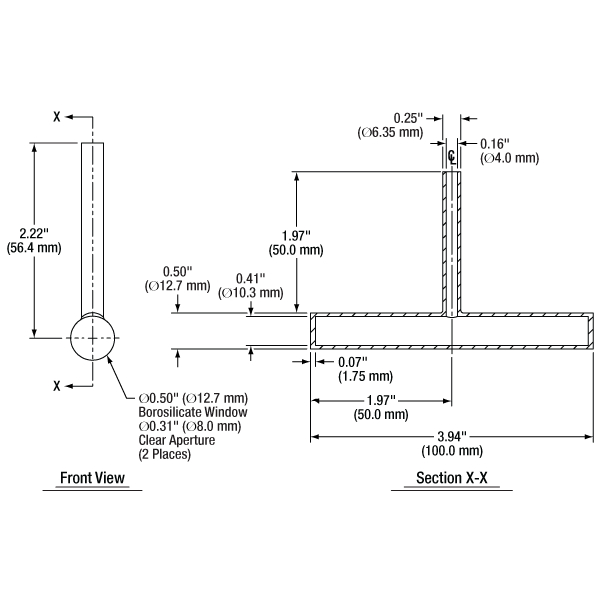

Product Drawing

Single Fill Tube
Fused Borosilicate Windows
- Ø12.7 mm Windows: 50 mm
  or 100 mm Long Cells
- Ø25 mm Windows: 100 mm
  or 500 mm Long Cells
- Ø50 mm Windows: 100 mm Long Cells
Ideal for Sample Isolation

Glass cells with a single fill tube are useful when introducing a sample into the cell and sealing it off for measurements. These cells do not come with integrated valves and can only isolate a sample by adding a valve at another point in the system.

Specifications
Item #	T-GC051L
Fill Tubes	One
Valve Type	N/A
Window Size	Ø12.7 ± 0.5 mm
Window Clear Aperture	Ø8 ± 1 mm
Window Thickness	1.75 ± 0.2 mm
Window Perpendicularity	±1°
Cell Length	100.0 mm
Cell Length Tolerance	±3.0 mm
Pressure @ 25 °C	<10^-7 Torr to 5 psi
Fill Tube Outer Diameter	0.25" (6.35 mm)
Window & Cell Substrate	Uncoated Borosilicate
