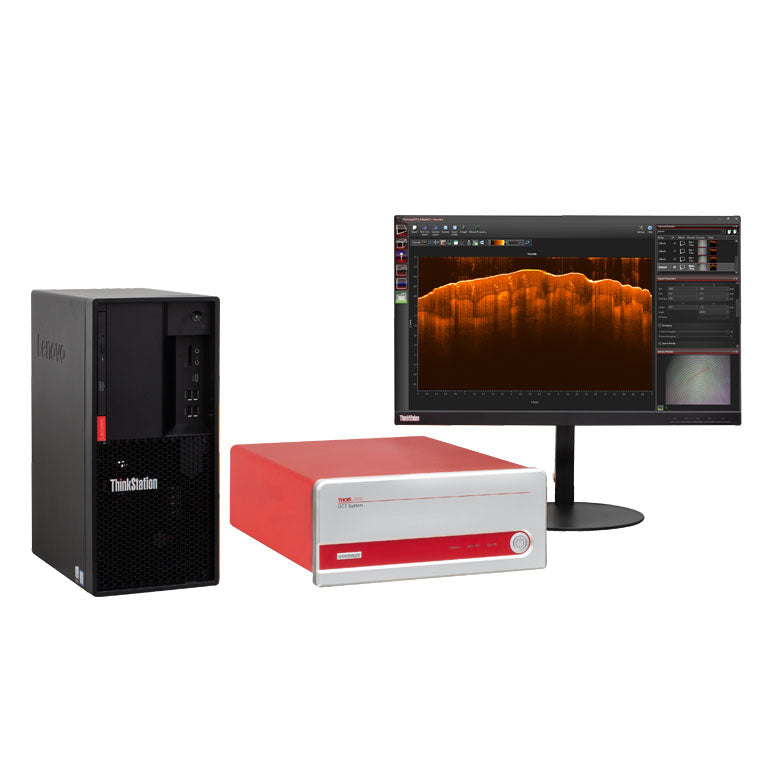

T-GAN632 - Ganymede OCT Base Unit, 880 nm, <3.0 µm Resolution, 5 to 248 kHz

Product Auto CAD PDF

• Flexibility in Imaging Speed with High- and Very-High-Resolution Performance Options
• Systems with up to 248 kHz A-Scan Rate (See Table Below)
• Fully Configurable Trigger for Integration into Larger Experiments
• Analog Input for Combining Other Data Sources with the OCT Signal
• Internal Hardware Diagnostics for Improved Troubleshooting
• Operating System Windows 10, 64 Bit
• Processor 8 Core, 3.0 GHz
• Memory 32 GB
• Hard Drive 512 GB SSD
• Data Acquisition CameraLink
• Description Very High Resolution
• Center Wavelength 880 nm
• Imaging Depth (Air/Water) 1.6 mm / 1.2 mm
• Axial Resolution (Air/Water) <3.0 µm / <2.2 µm
• A-Scan Line Rate 5, 10, 25, 50, 100, 200, & 248 kHz
• Sensitivity 84 dB (at 248 kHz) to 102 dB (at 5 kHz)
• Maximum Pixels per A-Scan 1024
• Compatible Scanners OCTP-900, OCTP-900/M, and OCTG9
