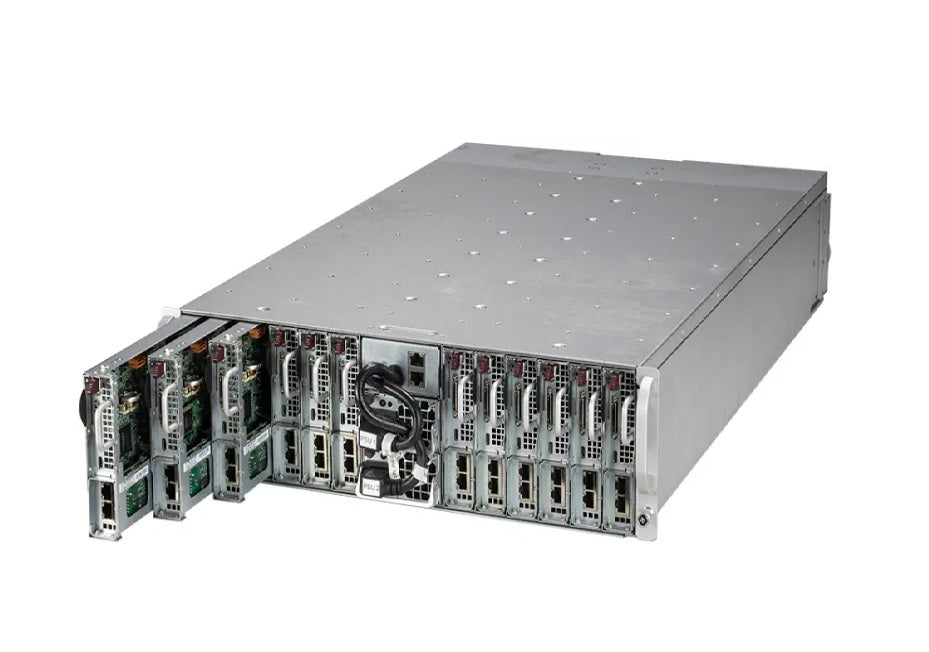

The Supermicro MicroCloud SYS-530MT-H12TRF is an ultra-dense, 3U multi-node enterprise barebone server that houses 12 independent hot-pluggable server nodes. This platform maximizes compute density in a 3U footprint, making it ideal for cloud hosting, dedicated gaming clusters, virtualization, and web infrastructure
Specifications
Model Number: SYS-530MT-H12TRF
Brand: Supermicro
Alt Part Number(s): SYS-530MT-H12TRF
Product Type: Barebone Server
Technical Description
Brand: Supermicro
Model Number: SYS-530MT-H12TRF
Series: MicroCloud
Processor Type: Intel Xeon processor E-2300 series
Processor Core: 96 Core/192 Thread
Processor Speed: up to 5.1GHz (per node)
Processor Power: 80W – 95W per CPU (per node)
Processor Socket: Single Socket H5 (per node)
Processor Cache: 16MB
Motherboard: Super X12STE-F (per node)
Chassis Model: CSE-939HN-R2K20BP
Chipset Type: Intel C256
Graphics Controller: ASPEED AST2600 BMC
Networking Connectivity: 2 × 1GbE LAN Ports per node
Number of Drive Bays: 2 × 3.5" SATA / NVMe drive bays (per node), 4 × 2.5",1 × M.2
Expansion Slots: 1 PCIe 4.0 x8 MicroLP slot (per node)
Memory Supported: 1.5TB
Memory Technology: DDR4 ECC UDIMM
Memory Speed: 3200MT/s ECC DDR4 UDIMM
Memory Slots: 4 DIMM Slots (per node)
Power Supply: 2x 2200W Redundant (1 + 1) Titanium Level power supplies
System Cooling: Up to 4 Heavy Duty 9cm fan
Form Factor: 3U Rackmount
Height: 5.21"
Width: 17.5"
Depth: 29.5"
