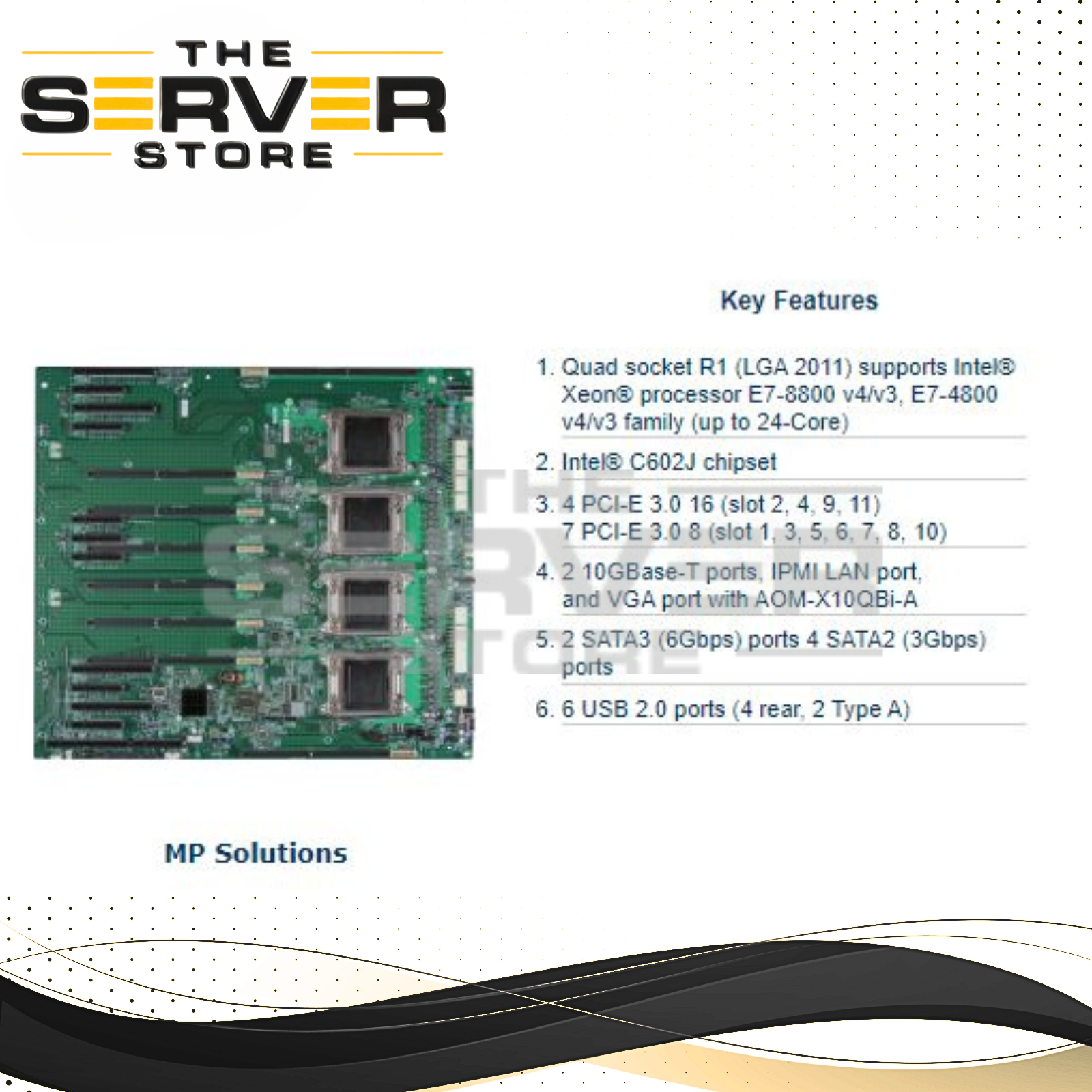

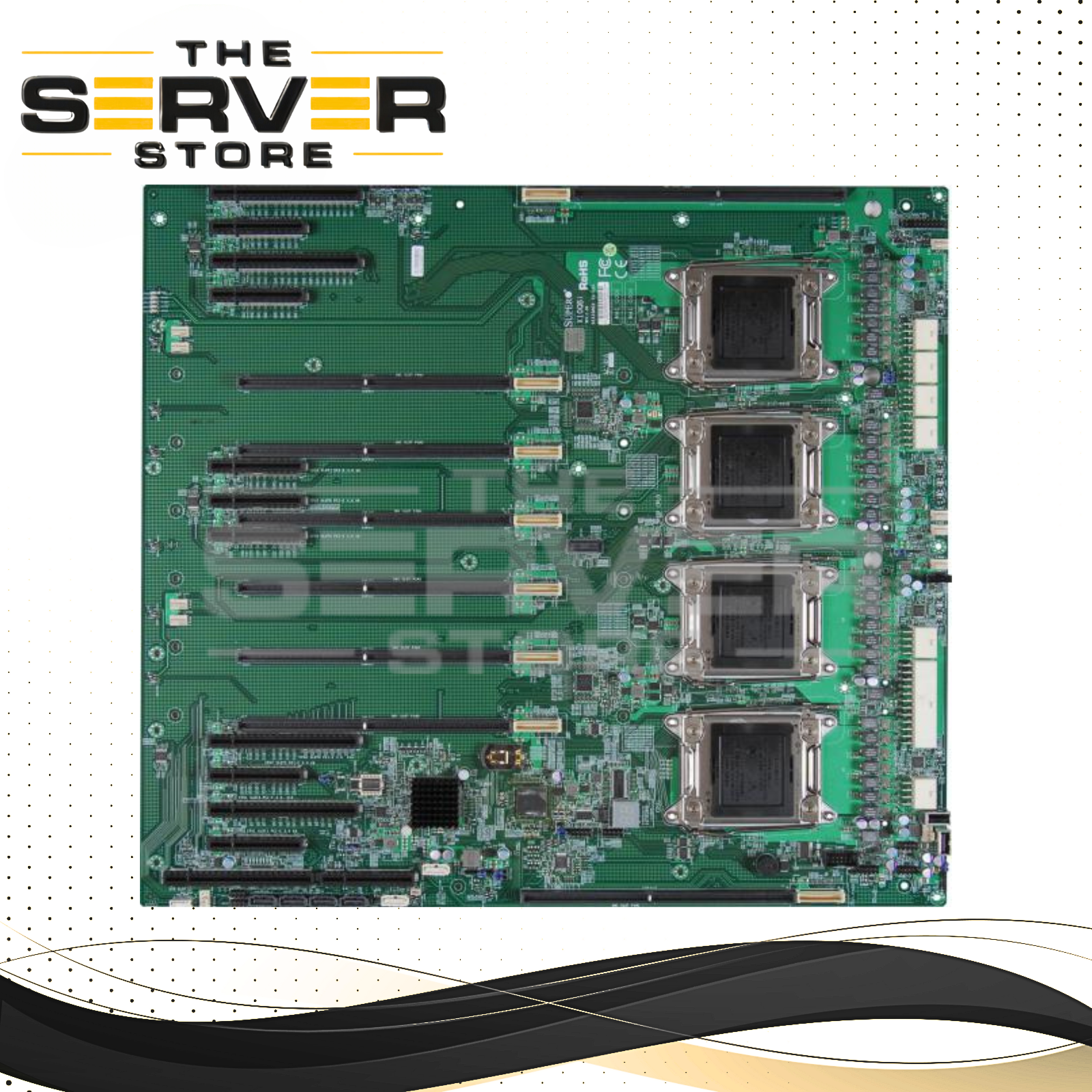

Supermicro MBD-X10QBi (X10QBi) Quad-Socket Server Motherboard
The Supermicro MBD-X10QBi is a high-performance proprietary server motherboard designed for enterprise workloads, virtualization, and large-scale computing. Built to support four Intel LGA 2011 sockets, it delivers massive memory and advanced I/O capabilities for mission-critical applications.
Key Specifications & Features
-
Processor Support: Quad-socket R1 (LGA 2011) Intel Xeon E7-8800 v4/v3 and E7-4800 v4/v3 families
-
Chipset: Intel C602J
-
Expansion Slots: 4 × PCIe 3.0 x16, 7 × PCIe 3.0 x8
-
Memory Support: Requires memory boards (X10QBi-MEM1 for DDR3 or X10QBi-MEM2 for DDR4); supports up to 96 DIMM slots and up to 12TB DDR4 ECC Registered memory at 1866MHz
-
Storage: 2 × SATA3 (6 Gbps), 4 × SATA2 (3 Gbps), with RAID support
-
Networking: 2 × 10GBase-T ports via add-on module AOM-X10QBi-A, plus 1 dedicated IPMI LAN port
-
Form Factor: Proprietary 19" × 17"
-
Management: IPMI 2.0 with KVM-over-LAN and SuperDoctor III
-
I/O Module: Add-on module AOM-X10QBi-A required for full I/O functionality (10G ports, VGA, IPMI)
Compatible Part Numbers
- MBD-X10QBi
- X10QBi
- MBD-X10QBi-P
Why Choose the Supermicro MBD-X10QBi?
This motherboard is ideal for enterprise servers, virtualization hosts, HPC, and large-scale data processing applications. Its quad-socket design, massive memory support, and high-speed I/O make it perfect for mission-critical workloads where performance, scalability, and reliability are essential.
