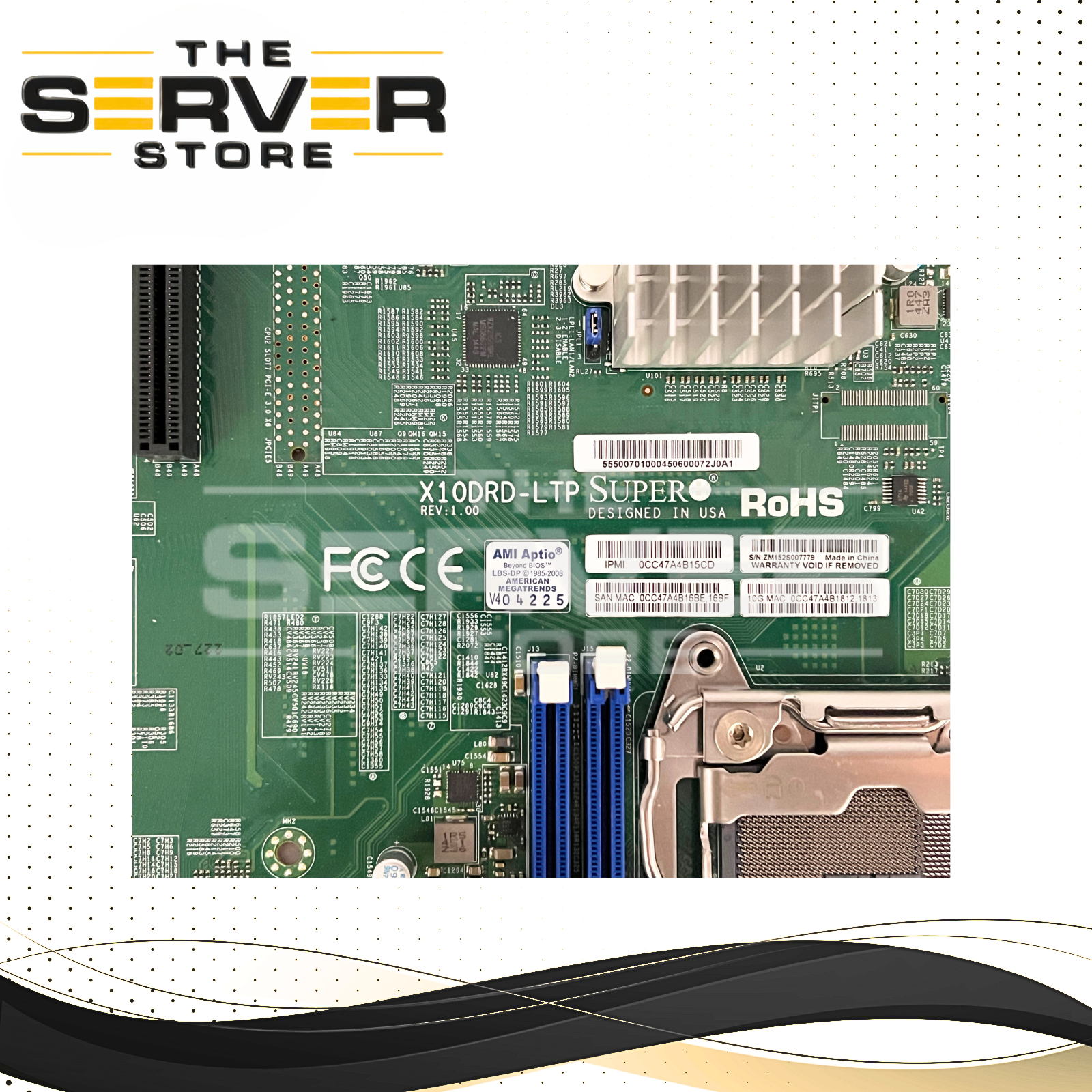

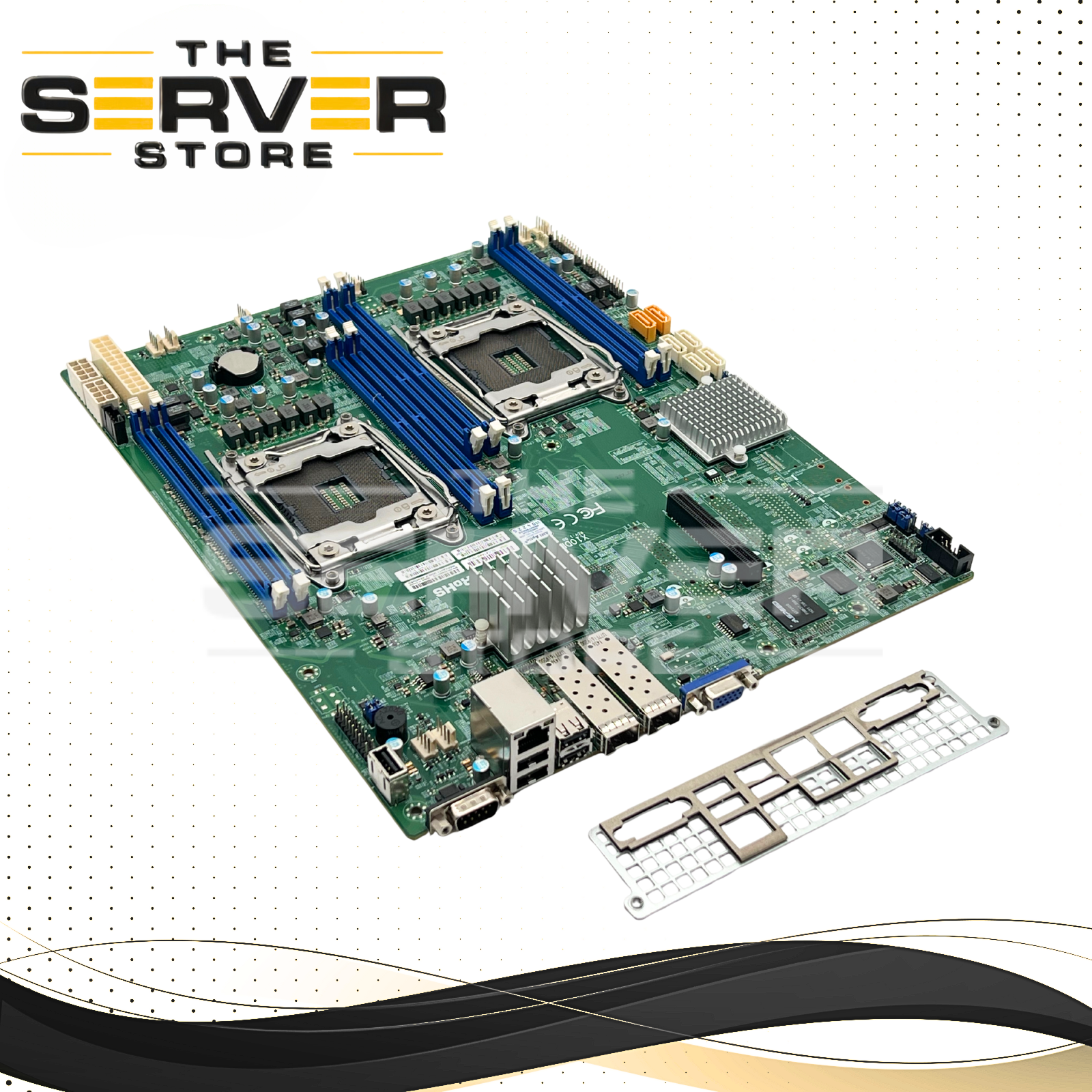

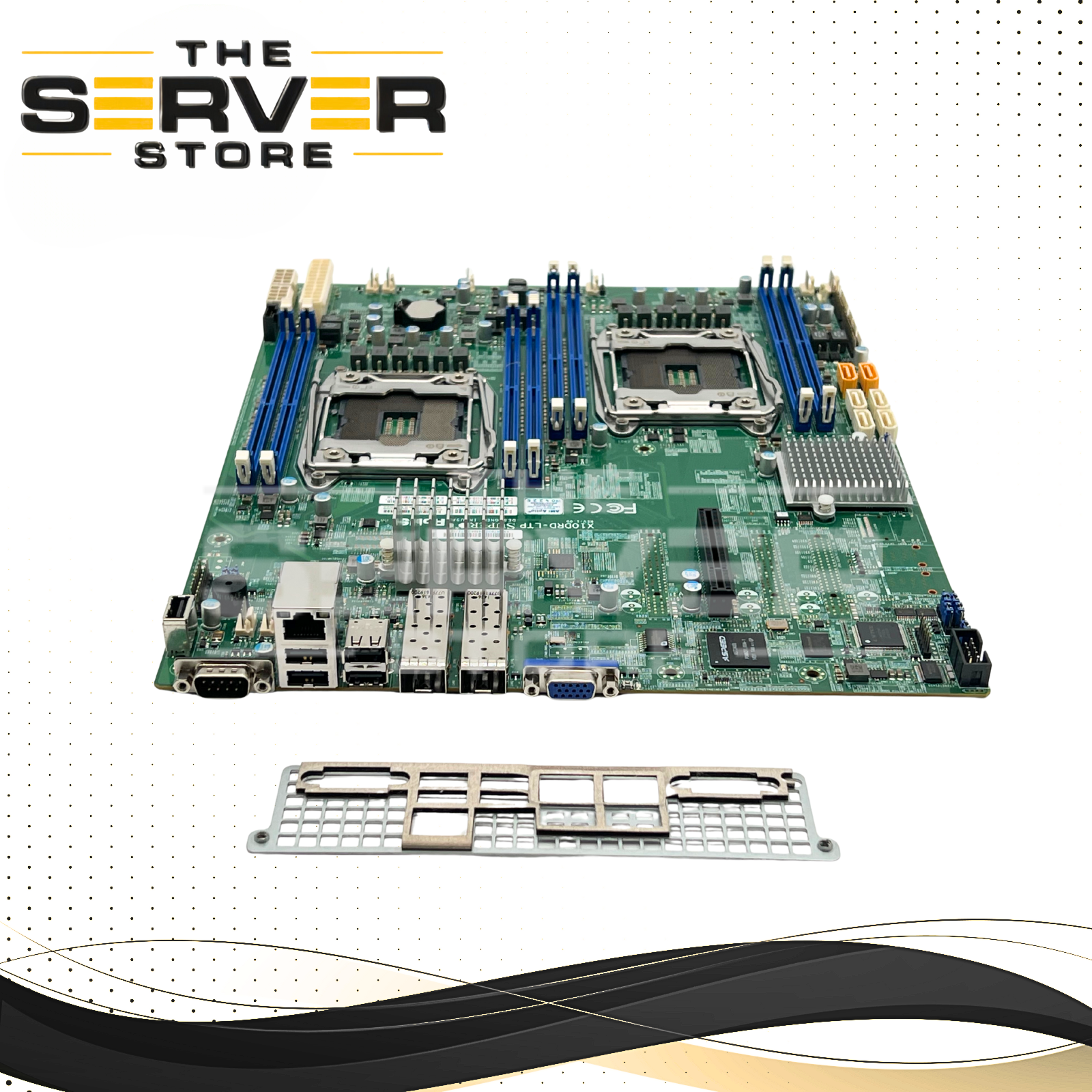

Supermicro X10DRD-LTP Motherboard – Enterprise-Class Dual Socket Performance
Overview
The Supermicro X10DRD-LTP is a high-performance E-ATX server motherboard built for demanding enterprise workloads. Featuring dual LGA 2011-3 sockets, it supports Intel Xeon E5-2600 v3 and v4 processors, making it an ideal platform for virtualization, high-performance computing, storage servers, and data center applications.
Key Specifications
-
Dual Socket R3 (LGA 2011-3) supports Intel Xeon E5-2600 v3/v4 CPUs
-
Intel C612 chipset for robust server functionality
-
8 DDR4 DIMM slots supporting up to 1TB ECC 3DS LRDIMM or 512GB RDIMM
-
Dual 10GbE SFP+ ports powered by Intel 82599ES
-
6 SATA 3.0 (6Gb/s) ports with RAID 0/1/5/10 support
-
1 PCIe 3.0 x8 slot for expansion
-
Aspeed AST2400 BMC with IPMI 2.0 and KVM-over-LAN support
-
E-ATX form factor (13.05" x 10.5")
Compatibility
The X10DRD-LTP is compatible with a wide range of Supermicro 1U and 2U chassis and supports enterprise-grade components, including:
-
Intel Xeon E5-2600 v3 and v4 processors (up to 145W TDP)
-
DDR4 ECC Registered, Load-Reduced, and 3DS LRDIMM memory modules
-
Standard PCIe 3.0 add-on cards and 10GbE SFP+ modules
-
IPMI-based management software for remote system monitoring and control
Use Case Applications
-
Virtualized infrastructure for cloud environments
-
High-speed storage arrays and SAN/NAS systems
-
Enterprise firewall, router, or edge compute systems
-
Data analytics, rendering farms, and scientific computing clusters
