Overview

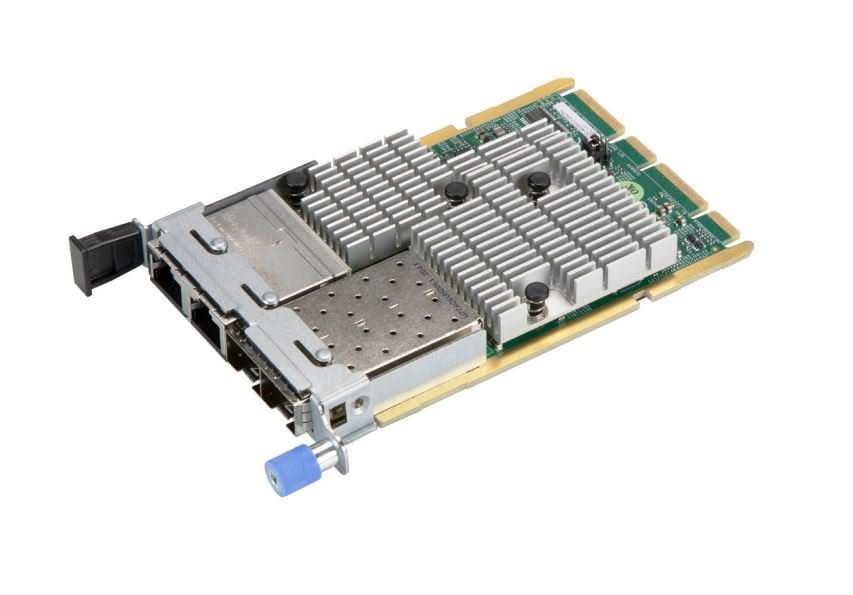

The Supermicro AOC-AH25G-M2S2TM-O is a 25GbE Ethernet controller card featuring dual SFP28 and dual RJ45 connectors, offering flexible, high-speed network connectivity. This AIOM is OCP 3.0 compliant, ensuring seamless integration with modern server systems for optimal performance and scalability.
Specifications
Model Number:AOC-AH25G-M2S2TM-O
Brand: Supermicro
Alt Part Number(s):AOC-AH25G-M2S2TM-O
Product Type: Network Interface Card
Technical Description
Brand: Supermicro
Model:AOC-AH25G-M2S2TM-O
Form Factor: Advanced I/O Module (AIOM)
Controllers: Mellanox ConnectX-4 Lx EN 25GbE (dual SFP28); Intel X550-AT2 10GbE (dual RJ45)
Interface: PCIe Gen 3.0 x16
Network Speed: 25GbE / 10GbE / 1GbE
Features: Hardware offloads for NVGRE, VXLAN, and GENEVE; SR-IOV virtualization; RDMA over Converged Ethernet (RoCE); Jumbo Frame support
Virtualization: SR-IOV up to 256 Virtual Functions; 16 Physical Functions per port
Management: NC-SI support; PXE and UEFI boot; BMC thermal reading support
OS Support: Linux (RHEL/SLES), Windows, VMware, FreeBSD
Power Consumption: Maximum 25W
Dimensions: 115mm x 76mm
Compliance: RoHS Compliant 6/6
*
