- Print Speed: 200 mm/sec ,Resolution: 203 dpi, Interface: USB 2.0 Full Speed
[/shortdesc]
[properties]
| Product Name |
TSP143IIU |
| Description |
Star Micronics TSP143IIU, a thermal receipt printer with USB connectivity, designed for point-of-sale (POS) systems and retail environments. |
| Printing Method |
Thermal line printing |
| Print Speed |
Up to 250 mm/sec |
| Resolution |
203 dpi (8 dots/mm) |
| Print Width |
80 mm (3.15 in) |
| Interface |
USB 2.0 |
| Cutter |
Auto-cutter (guillotine type) with 1.5 million cuts rated life |
| Paper Roll Diameter |
Up to 83 mm (3.27 in) |
| Paper Thickness |
0.053 to 0.085 mm |
| Operating Temperature |
5°C to 45°C (41°F to 113°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Dimensions |
14.2 cm x 20.4 cm x 13.2 cm (5.6 in x 8.0 in x 5.2 in) |
| Weight |
1.72 kg (3.79 lb) |
| Compatibility |
Compatible with Windows, iOS, and Android POS systems |
| Usage |
Suitable for retail, hospitality, and service industry applications |
| Durability |
Print head rated for 100 km of printing |
[/properties]
[specifications]
| Connectivity |
USB 2.0 Type B connector for direct connection to POS systems |
| Certifications |
CE, FCC, UL, RoHS compliant |
| Environmental Safety |
Complies with RoHS 3 (Directive 2015/863/EU) for hazardous substances |
| EMC Compliance |
Meets EN 55032, EN 55024, and FCC Part 15 standards |
| MTBF |
>360,000 hours |
| Cutter Life |
Auto-cutter rated for up to 1.5 million cuts |
| Print Head Life |
Print head rated for up to 100 km of printed receipts |
| Power Supply |
Input: AC 100-240V, Output: DC 24V |
| Power Consumption |
Operating: 48W, Standby: 2W |
| Operating Noise |
<55 dB during printing |
| Firmware Updates |
Supports firmware updates via USB connection |
| Paper Loading |
Drop-in and print paper loading for easy replacement |
| Deployment |
Optimized for countertop installation in POS setups |
| Reliability |
Manufactured for high-volume printing environments, with rigorous testing for performance |
| Monitoring |
Status indicators for power, error, and paper status |
[/specifications]

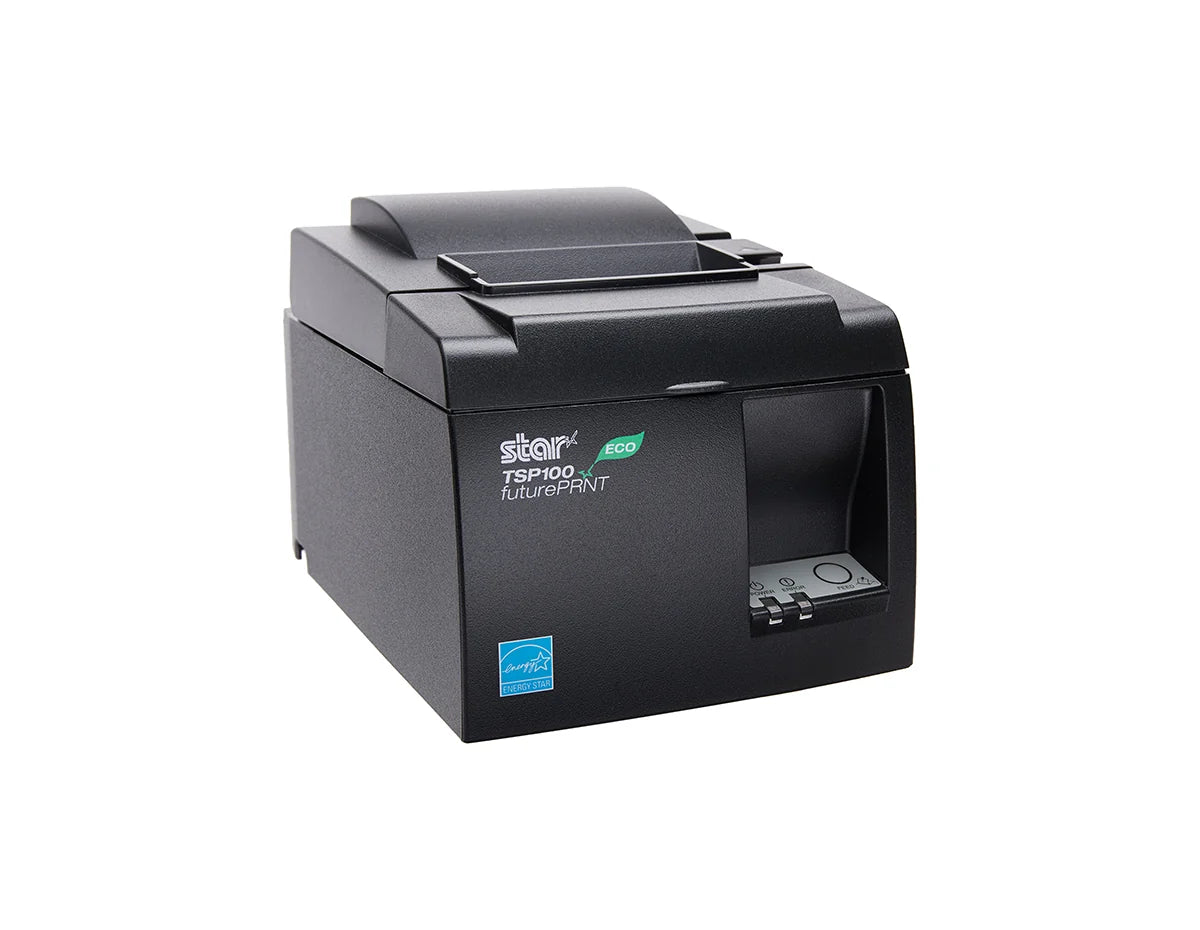

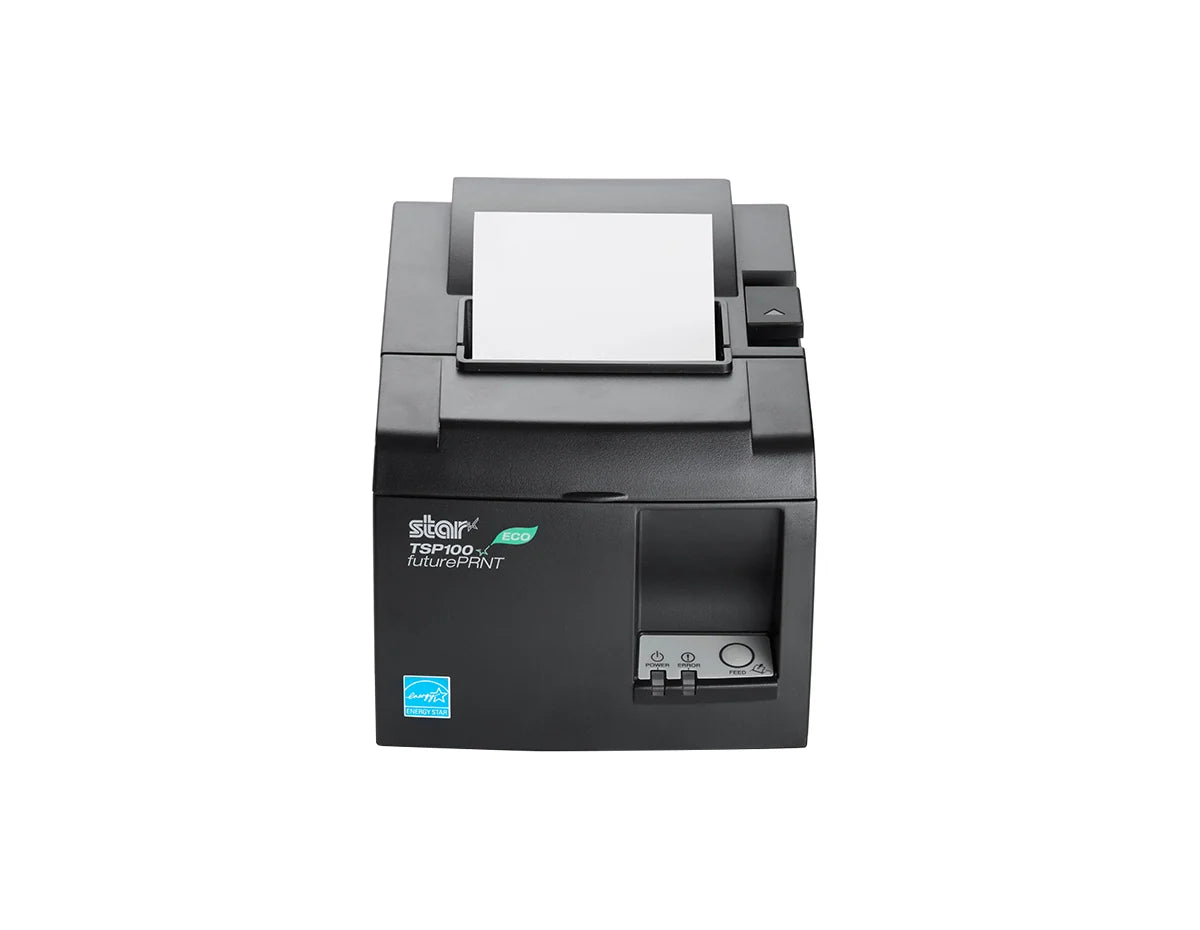

TSP143IIU USB Receipt Printer
The TSP143IIU is a reliable and economical USB receipt printer. Known for its high-quality thermal printing, it offers an easy setup process and includes all necessary accessories. The printer supports a maximum print speed of 200 mm/s and features an autocutter for efficient receipt management. It's compatible with futurePRNT software and is Energy Star certified, making it an environmentally friendly choice.
Specifications
- Max. Print Speed: 200 mm/sec.
- Resolution: 203 dpi
- No. of Columns: 48 / 64 col. Depending on Paper Width
- Autocutter: Partial (Guillotine) Autocutter
- Paper Width: 80 mm (58 mm Using Paper Guide)
- Paper Thickness: 0.053 - 0.085 (TSP100III Series) with flat Paper
- Paper Roll Standard Option: 83 mm
- Print Width: 50.8 mm (58 mm Paper) 72 mm (80 mm Paper)
- Sensors: Paper End, Cover Open
- Interface: USB 2.0 Full Speed with Cable Supplied and “Virtual” Serial Port Emulator.
- Additional Software: futurePRNT driver and Star Cloud Services including digital receipting
- Power Supply: Internal with Power Cable included
- Power Consumption: 1.6 Amps Printing 0.1 Amps Standby
- Reliability: 60 Million Lines 2 Million Cuts
- Dimensions (W x D x H): 142 x 204 x 132 mm
- Weight: 1.56kg - 1.76kg
Technical Details
| Category |
Specifications |
| Type |
Voucher printer |
| Technology |
Thermal direct |
| Print Resolution |
203 dpi |
| Printing Speed (max.) |
200 mm/s |
| Colour |
Dark grey |
| Paper |
Bon, Breite: 58 mm, 80 mm |
| Interfaces |
USB 1x |
| Dimensions (W x D x H) |
142 mm x 204 mm x 132 mm |
| Weight |
1.56 kg |
| Power Supply |
Power unit, inclusive |
| Manufacturer |
STAR MICRONICS |
| Factory Number |
39472730 |
| Package Weight |
5.8 lb |
| EAN / GTIN |
4951319240808 |
