Description

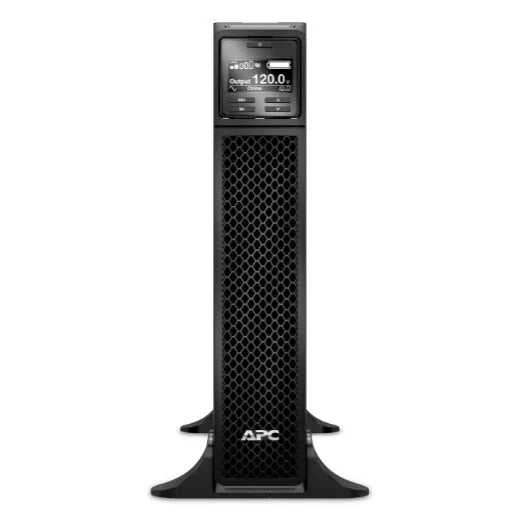

The Schneider Electric APC SRT1500XLA is an on-line Smart-UPS designed to deliver continuous, high-quality power protection for critical equipment. It provides true double-conversion operation with extended runtime capability and pure sine wave output at 120 volts.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric / APC |
| Category |
Power Protection |
| Part Number |
SRT1500XLA |
| Subcategory |
Uninterruptible Power Supplies |
| UPS Type |
On-Line (Double Conversion) |
| Rated Power (VA) |
1500 VA |
| Rated Power (Watts) |
1350 W |
| Input Voltage |
120 VAC, 1 Phase |
| Input Frequency |
40–70 Hz Auto-Sensing |
| Input Connection |
NEMA 5-15P |
| Output Voltage |
120 VAC, 1 Phase |
| Output Frequency |
50/60 Hz ±3 Hz (Sync to Mains) |
| Output Waveform |
Pure Sine Wave |
| Output Connections |
6 × NEMA 5-15R |
| Topology |
On-Line |
| Bypass Type |
Built-In Bypass |
| Crest Factor |
3:1 |
| Harmonic Distortion |
< 2% |
| Maximum Configurable Power |
1500 VA / 1350 W |
| Efficiency Range |
108–150 V (Full Load), 50–150 V (40% Load) |
| Form Factor |
Tower |
| Color |
Black |
| Height |
17.01 in (432 mm) |
| Width |
3.3 in (85 mm) |
| Depth |
20 in (508 mm) |
| Weight |
48.5 lbs |
Information About SRT1500XLA

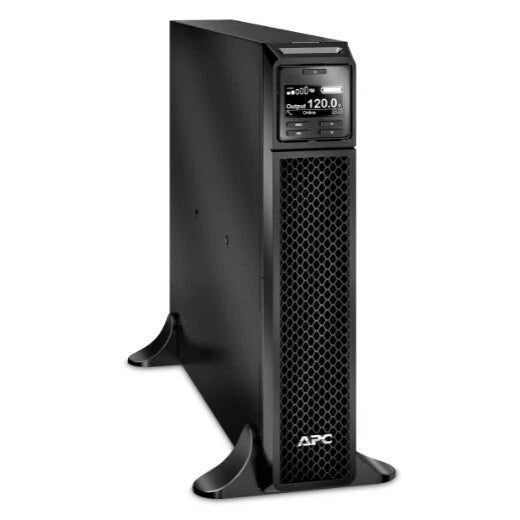

The SRT1500XLA is part of the APC Smart-UPS SRT series from Schneider Electric, designed for mission-critical power protection in IT, networking, and industrial environments. This UPS uses on-line double-conversion topology to isolate connected equipment from power disturbances, voltage fluctuations, and frequency variations. It supports extended runtime configurations through external battery options and includes a SmartSlot for optional network management and monitoring cards. The tower-style enclosure allows flexible deployment in space-constrained installations where rack mounting is not required.
Key Features
- On-Line Double Conversion Topology: Continuously conditions power to provide zero transfer time and complete isolation from electrical disturbances.
- High Power Density Output: Delivers up to 1500 VA / 1350 W to support critical servers, networking devices, and control systems.
- Pure Sine Wave Output: Ensures compatibility with sensitive electronics and power factor–corrected equipment.
- Built-In Maintenance Bypass: Allows servicing or replacement without interrupting power to connected loads.
- Extended Runtime Capability: Supports external battery expansion for longer backup duration during outages.
- SmartSlot Expansion Interface: Enables advanced monitoring, management, and network integration options.

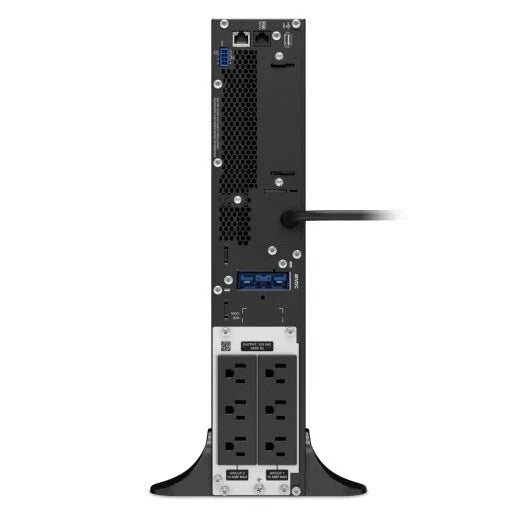

- Multiple NEMA Outlets: Six NEMA 5-15R receptacles provide flexible load connection options.
The SRT1500XLA delivers the reliability and precision required for protecting critical equipment in demanding power environments.
