Description

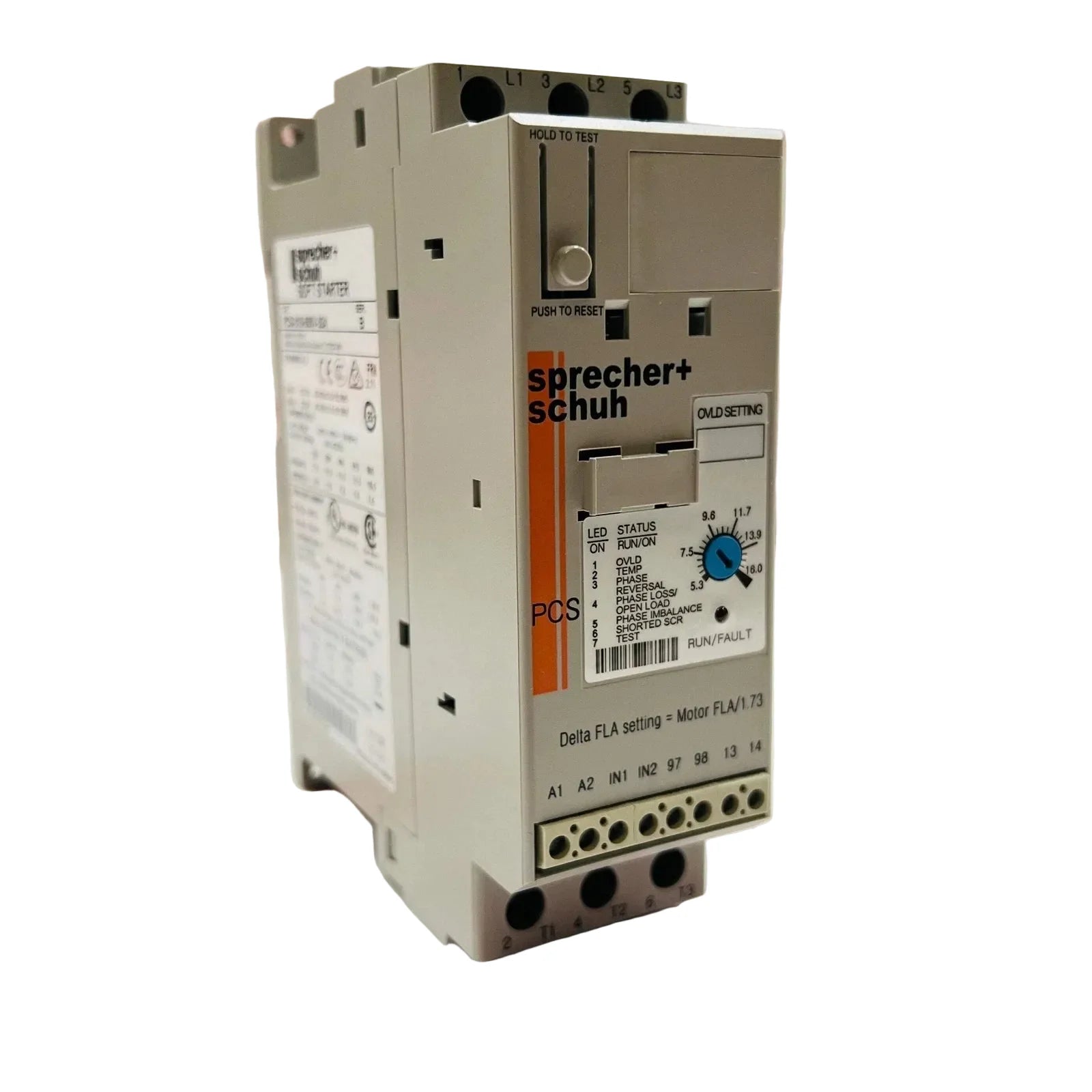

The Sprecher + Schuh PCS-037-600V-024 is a soft starter designed to provide controlled acceleration and deceleration for three-phase motors up to 37 A. It operates with 24 VAC/DC control voltage and includes integrated motor protection, bypass functionality, and flexible connection options for industrial motor applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Sprecher + Schuh |
| Category |
Motor Control |
| Part Number |
PCS-037-600V-024 |
| Subcategory |
Soft Starters |
| Series |
PCS |
| Type |
Soft Starter |
| Current Rating |
37 A |
| Control Voltage |
24 VAC / 24 VDC |
| Nominal Load Voltage |
208 VAC, 240 VAC, 380 VAC, 415 VAC, 480 VAC, 575 VAC |
| Motor Phase |
Three Phase |
| Connection Type |
In-Line, Inside the Delta |
| Bypass Function |
Integrated Bypass Relay |
| Overload Protection |
Yes |
| Protection Rating |
IP20 |
| Mounting Type |
DIN Rail / Panel Mount |
| Motor Capacity |
10 HP @ 200 V / 10 HP @ 230 V / 25 HP @ 460 V / 30 HP @ 575 V |
| Operating Temperature |
23°F to 122°F (-5°C to 50°C) |
| Combination Type |
Non-Combination |
| Certifications |
CE, cULus |
| Application |
Pumps, conveyors, compressors, fans, industrial motors |
| Weight |
2.14 lbs (0.97 kg) |
Information About PCS-037-600V-024
The PCS-037-600V-024 belongs to the Sprecher + Schuh PCS soft starter series, developed to reduce mechanical stress and electrical inrush current during motor startup and stopping cycles. It supports a wide range of motor voltages from 208 VAC to 575 VAC and is suitable for applications including pumps, conveyors, fans, and compressors. The unit features built-in overload protection, phase monitoring functions, and an integrated bypass relay to improve system efficiency during normal operation. Its compact IP20-rated open design allows installation inside control panels with DIN rail or panel mounting flexibility.
Key Features:
- Soft start and stop control: Provides smooth motor acceleration and deceleration to reduce mechanical stress
- 37 A current rating: Designed for medium-duty three-phase motor applications
- Wide voltage compatibility: Supports motor voltages from 208 VAC through 575 VAC
- 24 VAC/DC control voltage: Allows flexible integration with industrial control systems
- Integrated overload protection: Helps protect motors from excessive current conditions
- Phase protection functions: Provides monitoring for phase loss and phase imbalance conditions
- Built-in bypass relay: Reduces heat generation and power losses during normal operation
- Compact panel design: Saves installation space in industrial control cabinets
- Multiple connection methods: Supports in-line and inside-the-delta motor connections
- LED status indicators: Simplifies operation monitoring and troubleshooting
- Industrial certifications: Approved to CE and cULus standards
The PCS-037-600V-024 delivers the reliability and precision required for controlled motor starting and protection in industrial automation systems.
