24-Position Aluminum Fusion Splice Tray (8.5" × 5")

This 24-position aluminum splice tray offers a compact yet high-capacity solution for managing fusion splices in standard fiber optic enclosures. With a balanced footprint, it provides ample space for clean fiber routing while fitting comfortably in applications where longer trays are not ideal.

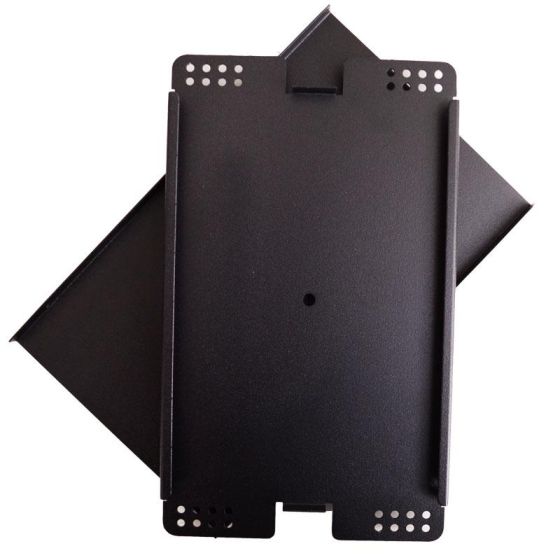

The rigid aluminum base and snap-on lid protect splices during installation and ongoing service. Integrated tie-down holes and a central mounting point help secure fibers and minimize movement inside the enclosure. Preconfigured for standard heat-shrink fusion splice sleeves, this tray is well suited for new installations, upgrades, and retrofit projects requiring reliable, space-efficient splice management.

Download product spec sheet (PDF)

Specifications

• Splice Capacity:

  • Holds 24 fusion splice sleeves

• Splice Holding Method:

  • PSA-backed splice chips

  • Includes (2) 12-position fusion splice chips

• Material:

  • Black, powder-coated aluminum

  • .032" thickness

• Cover:

  • Snap-on protective lid

• Cable Management:

  • Tie-down holes for securing fibers

  • Mounting hole for stud-and-nut fastening

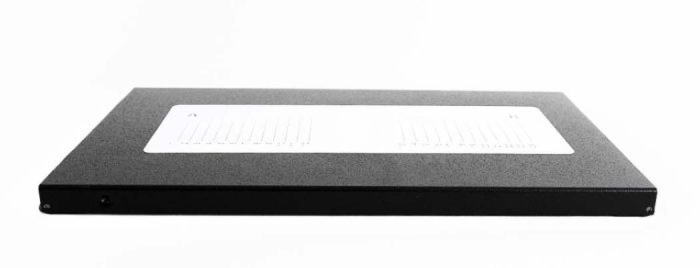

• Dimensions (L × W × H):

  • 8.5" × 5.0" × 0.42"

• Compatibility:

  • Fits most standard fiber optic enclosures

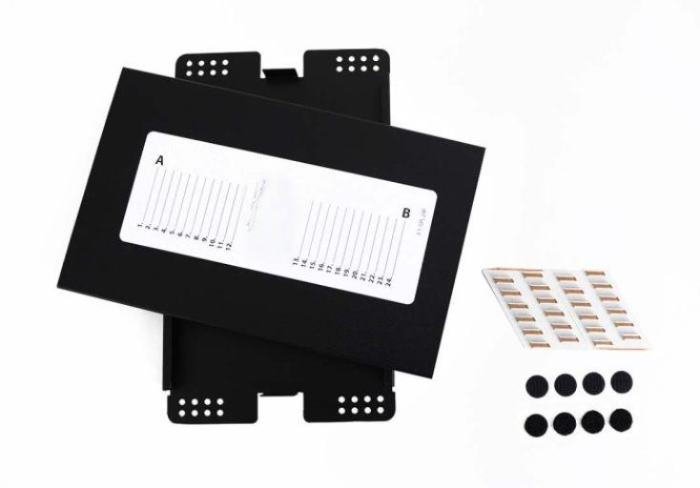

• Included Accessories:

  • Zip ties

  • Tray label

  • Adhesive Velcro dots

This 24-position splice tray delivers a durable, compact fusion splice management solution where enclosure space and flexibility are both critical.
