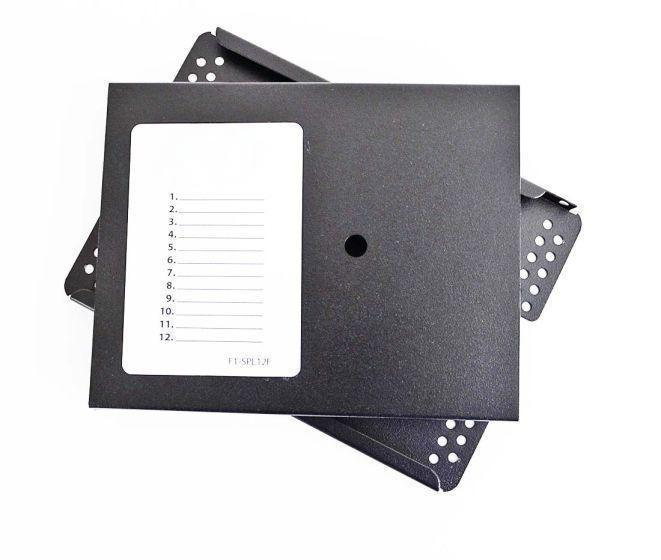

12-Position Aluminum Fusion Splice Tray (6.5" × 4.68")

This 12-position aluminum splice tray provides a compact, durable solution for managing standard heat-shrink fusion splices in a wide range of fiber optic enclosures. Its balanced footprint offers enough space for clean fiber routing and bend-radius control while remaining small enough for dense installations.

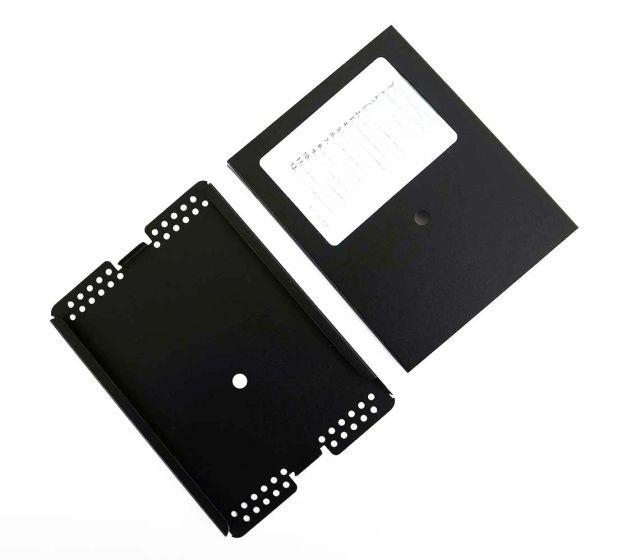

The aluminum base and snap-on lid protect splices during installation and long-term service. Integrated tie-down holes and a central mounting point allow the tray to be securely fixed inside the enclosure, helping maintain orderly fiber management and reduce movement over time. Adhesive Velcro dots are included for additional mounting flexibility.

Download product spec sheet (PDF)

Specifications

• Splice Capacity:

  • Holds 12 fusion splice sleeves

• Splice Holding Method:

  • PSA-backed 12-position splice chip

• Material:

  • Black, powder-coated aluminum

  • .032" thickness

• Cover:

  • Snap-on protective lid

• Cable Management:

  • Tie-down holes for securing fibers

  • Mounting hole for stud-and-nut fastening

• Dimensions (L × W × H):

  • 6.5" × 4.68" × 0.42"

• Compatibility:

  • Fits most standard fiber optic enclosures

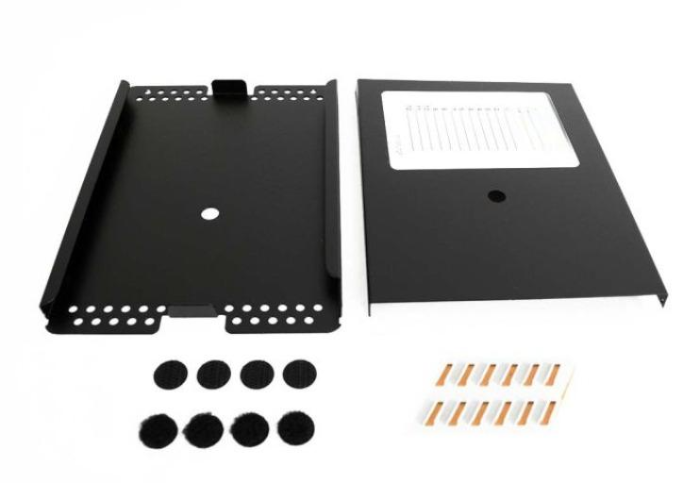

• Included Accessories:

  • 12-position fusion splice chip

  • Zip ties

  • Tray label

  • Adhesive Velcro dots

This 12-position splice tray offers a reliable, space-efficient option for fusion splice management in both new installations and retrofit projects where durability and enclosure compatibility are required.
