Cheetah FC PC Splice-On Connector, Multimode OM3 50µm, 900µm, Aqua – 10 Pack

The Cheetah FC PC Splice-On Connector is a high-speed, field-ready solution for terminating OM3 multimode fiber. Each connector is factory pre-polished and pre-cleaved, allowing for fast and easy fusion splicing. The integrated 27mm splice protection sleeve is fully concealed within a custom strain relief boot, eliminating the need for splice trays or additional hardware. Designed for compatibility with most industry-leading splicers, including FIS, AFL, Sumitomo, and Fitel, the Cheetah simplifies installations while ensuring top-tier performance.

Key Features:

• Connector type: FC PC

• Fiber type: Multimode OM3, 50/125µm

• Jacket size: 900µm, aqua

• Polish type: PC (Physical Contact)

• Format: 10-pack

Product Highlights:

• Factory pre-cleaved and pre-polished for the fastest prep and install

• 27mm fusion splice sleeve integrated into strain relief boot – no splice tray needed

• Compatible with fusion splicers using removable fiber holders

• High-performance zirconia ferrules ensure durability and alignment precision

• Meets or exceeds return loss performance:

  • APC: -65 dB

  • UPC: -55 dB

  • PC: -30 dB

Package Includes:

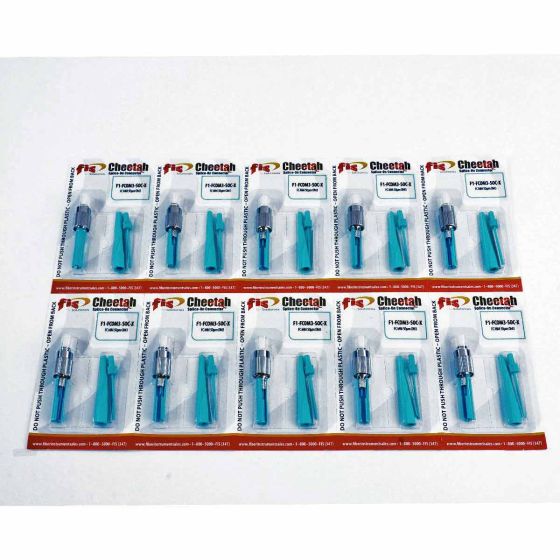

• 10x Cheetah FC PC Splice-On Connectors (OM3, aqua)

• 10x 27mm fusion splice sleeves

• 10x strain relief boots

Perfect for rapid deployment in high-speed multimode networks such as data centers, enterprise backbones, and telecom closets.
