Description

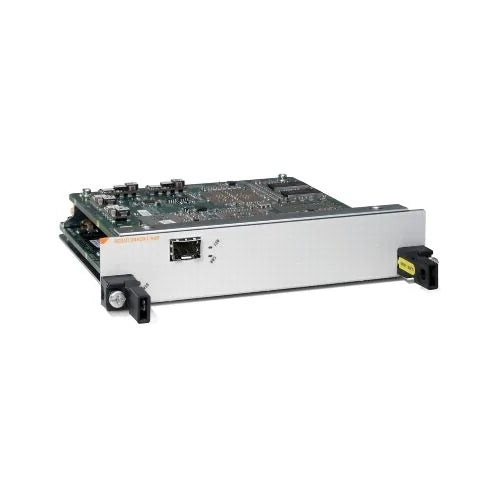

The Cisco SPA-1XCHOC12/DS0 is a high-density channelized OC-12/STM-4 shared port adapter designed for Cisco routers, offering flexible aggregation of DS0, DS1, and DS3 circuits.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
SPA-1XCHOC12/DS0
|
| Subcatecory |
WAN Interface Cards and Shared Port Adapters
|
| Form Factor |
Plug-in module |
| Compatibility |
Cisco 7600 Series |
| Port Type |
Channelized OC12 |
| Channelization Capability |
OC12 to DS0 |
| Total Ports |
1 |
| Interface Type |
Optical |
| Maximum Bandwidth |
622 Mbps (OC12) |
| Protocols Supported |
SONET, DS0 |
| Optical Wavelength |
1310 nm |
| Power Consumption |
30W |
| Housing Material |
Metal |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Relative Humidity |
5% to 95%, non-condensing |
| MTBF |
Over 800,000 hours |
| Fiber Type |
Single mode |
| Compliance |
RoHS, NEBS Level 3 |
| Dimensions |
1.55 x 7.13 x 7.28 inches |
| Weight |
1.27 lbs |
Information About SPA-1XCHOC12/DS0
The Cisco SPA-1XCHOC12/DS0 is a high-performance channelized shared port adapter designed for service providers and large enterprise networks, delivering flexible aggregation of DS0, DS1, and DS3 circuits over a single OC-12/STM-4 optical link. Engineered for scalability, reliability, and efficient bandwidth utilization, it enables the consolidation of multiple voice, video, and data services, making it an essential component for environments where high-density service aggregation, uptime, and operational efficiency are critical.
Key Features:
-
Compatibility: Specifically designed for Cisco routers with SPA Interface Processors (SIP), including Cisco 7600 Series, ASR 1000 Series, and 12000 Series routers
-
Component Type: Channelized OC-12/STM-4 shared port adapter for SONET/SDH transport
-
Function: Aggregates DS0, T1/E1, and DS3 circuits onto a single high-capacity optical link for efficient service delivery
-
Form Factor: Shared Port Adapter (SPA) module with single-mode fiber SC/PC optical connectors
-
Installation: Standard SPA insertion into supported SIP modules, typically installed and configured by network professionals
-
Reliability: Provides carrier-grade performance with support for SONET/SDH standards and extensive diagnostics and monitoring features
-
Maintenance Use: Ideal for scaling multiservice aggregation, optimizing fiber utilization, and simplifying service delivery networks
-
Use Case: Enables efficient, flexible aggregation for carrier backbones, enterprise WANs, and high-density multiservice networks
-
Operating Environment: Temperature range 0°C to 40°C; relative humidity 10% to 85% non-condensing
This shared port adapter delivers critical aggregation capabilities for multiservice networks, helping organizations maintain efficient, scalable, and resilient transport infrastructures. The Cisco SPA-1XCHOC12/DS0 is a trusted solution for enabling high-density service delivery and optimized bandwidth utilization in demanding carrier and enterprise environments.
